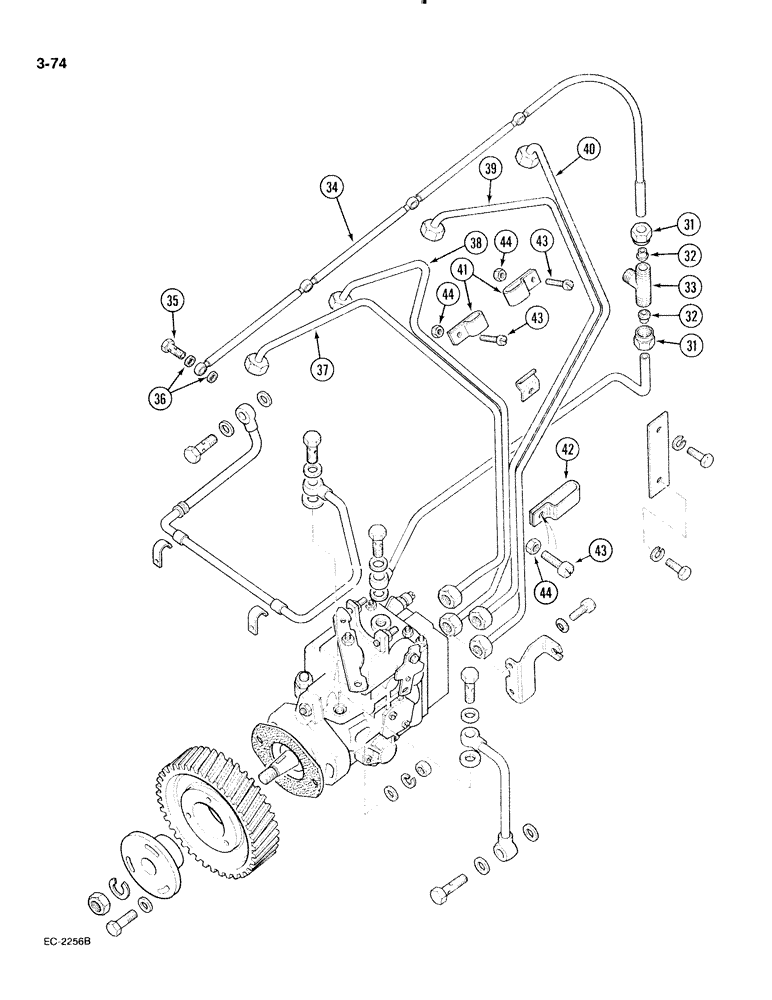

Запчасти Case IH 885 (3-074) - FUEL INJECTION TUBES AND PUMP GEAR (CONTD) (03) - FUEL SYSTEM

31

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT - coupling

2шт.

32

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

- compression

2шт.

33

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

- tee, special

1шт.

34

3218124R1

HOSE

- line leak

1шт.

35

3218130R1

BANJO BOLT,Hex, M6 x 133.02mm

- hollow, inlet union

4шт.

36

933696R1

SEALING RING,M6 x 10 x 1

RING - sealing, flat, 6 x 10 mm

8шт.

37

3228396R1

INJECTION PIPE

PIPE - injection, No. 1 cylinder

1шт.

38

3228397R1

INJECTION PIPE

PIPE - injection, No. 2 cylinder

1шт.

39

3228398R1

INJECTION PIPE

PIPE - injection, No. 3 cylinder

1шт.

40

3228399R1

INJECTION PIPE

PIPE - injection, No. 4 cylinder

1шт.

41

3132770R1

COLLAR

CLAMP - pipe

2шт.

41

3218241R1

CLAMP

- pipe, Serial Range: optional-3132770R1

2шт.

42

3132768R1

CLAMP

- pipe

1шт.

42

3218243R1

CLAMP

- pipe, Serial Range: optional-3132768R1

1шт.

43

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

- machine, pan head, M6 x 12 mm, class 8.8

3шт.

For use with clamps 3132770R1 and 3132768R1

1шт.

44

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

- hex, 6 mm, class 8

3шт.

For use with clamps 3132770R1 and 3132768R1

1шт.
