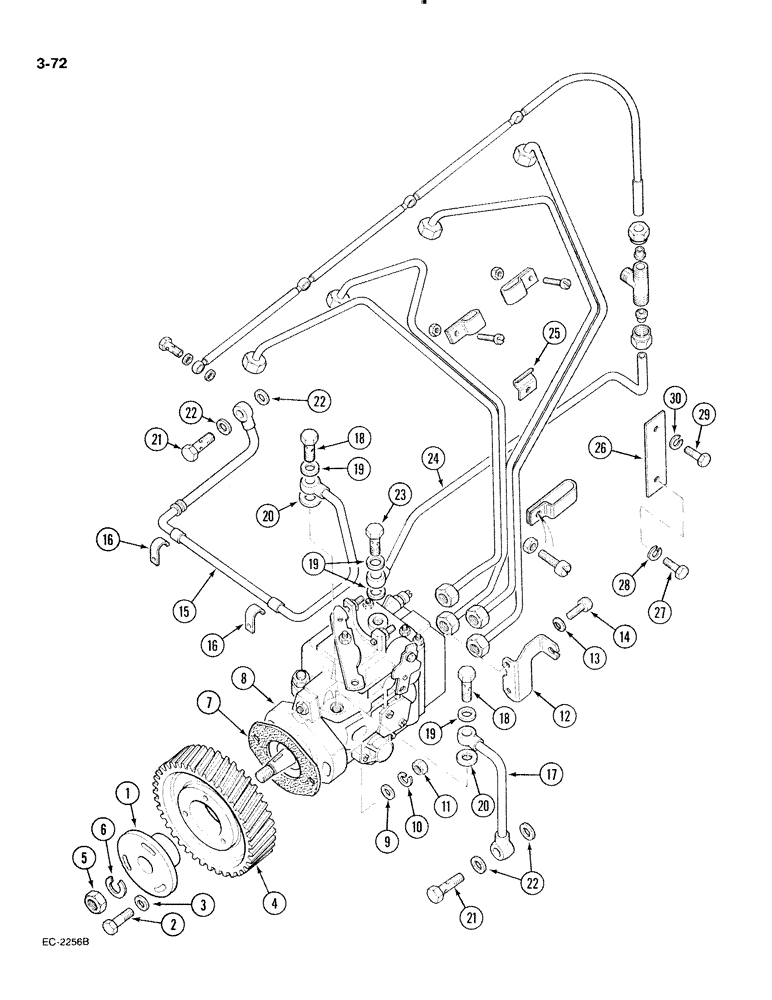

Запчасти Case IH 885 (3-072) - FUEL INJECTION TUBES AND PUMP GEAR (03) - FUEL SYSTEM

1

3055067R2

HUB

- injection pump gear

1шт.

2

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

3шт.

3

30183R1

WASHER,M8 x 21.5 x 2.5, HT

- flat, 8 mm

3шт.

4

3056885R3

PINION

GEAR - injection pump

1шт.

5

933981R1

NUT,M12 x 1.75, Cl 5

Hex M12 x 1.75, Cl 5

1шт.

6

933834R1

LOCK WASHER,M12

WASHER - lock, 12 mm

1шт.

7

3055384R1

GASKET

- fuel injection pump

1шт.

8

3228395R91

PUMP

- fuel injection, VA 4/11H 1200 CR93/3, See Figure 3-078

1шт.

8

1329107C91

PUMP, FUEL INJECTION

PUMP - fuel injection, VE 4/11F 1200 R277

1шт.

9

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

2шт.

10

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC, grade 5

2шт.

12

3228735R1

SUPPORT

BRACKET - support, fuel shut-off cable, VE pump

1шт.

12

3078549R1

SUPPORT

BRACKET - support, fuel shut-off cable, VA pump, See Figure 3-080

1шт.

13

905176R1

WAVE WASHER,M6.4 ID x 11 OD x .5 Thk

- spring bent, VE pump M6.4 ID x 11 OD x .5 Thk

2шт.

14

930679R1

HEX SOC SCREW,M6 x 25mm, Cl 8.8

- cap, hex socket, M6 x 25 mm, class 8.8, VE pump

2шт.

15

3228005R1

HOSE

PIPE - fuel, filter to injection pump, Serial Range: -18001

1шт.

16

3132052R1

CLIP

CLAMP - pipe, Serial Range: -18001

2шт.

17

3132324R1

HOSE,8mm ID x 275mm L

PIPE - fuel, filter to injection pump, Start Serial: 18001

1шт.

18

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW - hollow

1шт.

19

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

3шт.

20

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

21

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW - hollow

1шт.

22

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.

23

3059086R1

BANJO BOLT

SCREW - hollow, pump inlet union

1шт.

24

3144382R1

TUBE ASSY.

PIPE - overflow, VA pump

1шт.

24

1329112C1

TUBE

PIPE - overflow, VE pump

1шт.

25

3055386R1

CLAMP

CLIP - fuel line

2шт.

26

3132174R1

LINK

- fuel line clamping

2шт.

27

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

28

3052189R1

BELLEVILLE WASHER

- lock, 1/4 inch

2шт.

29

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

30

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
