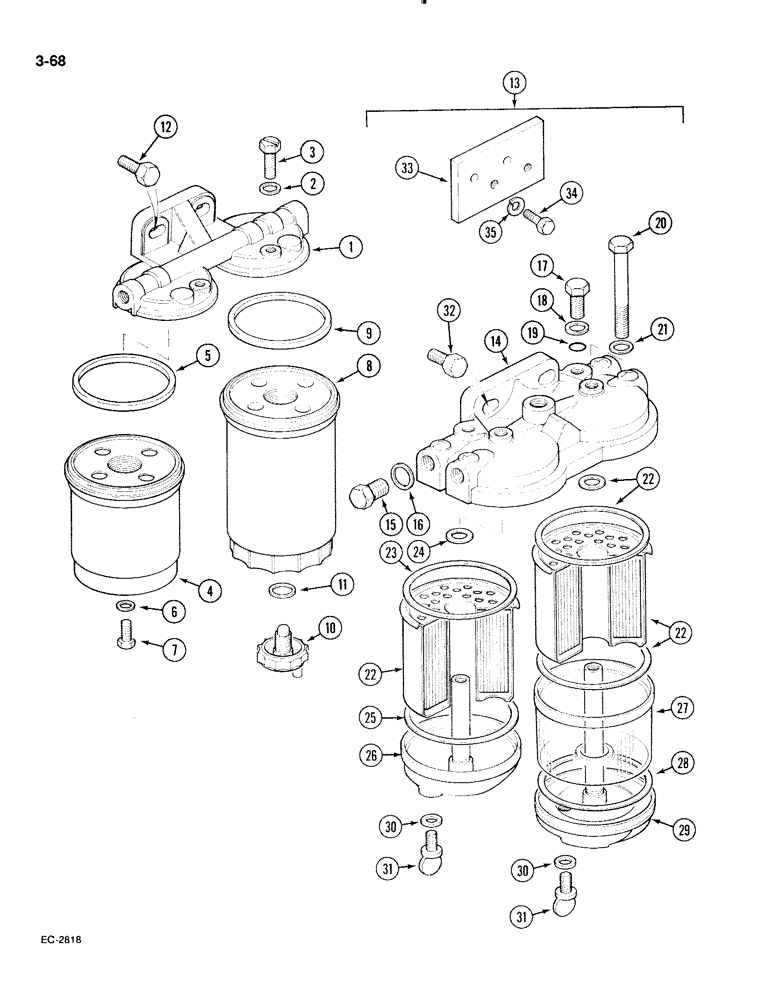

Запчасти Case IH 885 (3-068) - FUEL FILTERS, TWIN, PRIOR TO P.I.N. 18001 (03) - FUEL SYSTEM

3218705R93

FILTER

- assembly, fuel, Bosch, Includes: Ref. 1 - 11

1шт.

1

3218898R1

HEAD

COVER - housing, Bosch filter

1шт.

2

757760R1

RING

- packing, Bosch filter

2шт.

3

3144780R1

SCREW

Bosch filter

2шт.

4

3218794R91

FILTER

ELEMENT - filter, with seals, Bosch, Includes: Ref. 5 - 7

1шт.

5

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

RING - packing, Bosch filter

1шт.

6

933696R1

SEALING RING,M6 x 10 x 1

RING - sealing, flat, 6 x 10 mm, Bosch filter

1шт.

7

3144780R1

SCREW

Bosch, filter

1шт.

8

3132428R2

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order 3132428R2MP

ELEMENT - filter, with seal, Bosch, Includes: Ref. 9 thru 11

1шт.

9

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

RING - packing, Bosch filter

1шт.

10

3228407R1

PLUG

- drain, 7.8 mm, Bosch filter, Includes: Ref. 11

1шт.

11

3144480R1

RING,8.1mm ID x 16mm OD x 2mm Thk

- sealing, Bosch filter

1шт.

12

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

- hex, 3/8 NC x 1-1/8 inch, grade 5, Bosch filter

2шт.

13

3138816R93

FILTER ASSY

FILTER - fuel, twin, C.A.V., Includes: Ref. 14 - 31

1шт.

14

3078687R3

COVER ASSY

COVER - housing, C.A.V. filter

1шт.

15

3078689R1

PLUG

- closing, C.A.V. filter

2шт.

16

3078690R1

SEALING WASHER

- sealing, closing plug, C.A.V. filter

2шт.

17

3070770R1

PLUG

- air vent, C.A.V. filter

2шт.

18

3049111R1

SEALING WASHER

- sealing, vent plug, C.A.V. filter

2шт.

19

796020R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

C.A.V. filter

2шт.

20

3070771R2

BOLT

- center, C.A.V. filter

2шт.

21

3144668R1

SEALING WASHER

C.A.V. filter

2шт.

22

3044506R93

FILTER, FUEL

ELEMENT - filter, with seals, C.A.V., Includes: Ref. 23 - 25

2шт.

23

3123890R1

SEALING WASHER

RING - filter sealing, C.A.V.

1шт.

24

3044505R1

SEAL

RING - element sealing, C.A.V. filter

1шт.

25

3123889R1

SEALING WASHER

WASHER - filter bowl sealing, C.A.V. filter

1шт.

26

3078691R91

COVER

BASE - filter, includes studs, C.A.V.

1шт.

27

3069610R1

BOWL

- glass, C.A.V. filter

1шт.

28

3123889R1

SEALING WASHER

WASHER - filter bowl sealing, C.A.V.

1шт.

29

3078688R91

COVER

BASE - filter (Includes studs), C.A.V.

1шт.

30

3117039R1

SEALING WASHER

- seal, drain plug, C.A.V. filter

2шт.

31

3117038R91

PLUG

- drain, with washer, C.A.V. filter

2шт.

32

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8"-16 NC x 1-1/4", G5, C.A.V. filter

2шт.

33

3144225R1

BAR

PLATE - filter mounting, C.A.V. filter

1шт.

34

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

- hex, 3/8 NC x 7/8 inch, grade 5, C.A.V. filter

2шт.

35

103321

LOCK WASHER,3/8"

WASHER, LOCK, , C.A.V. filter 3/8"

2шт.
