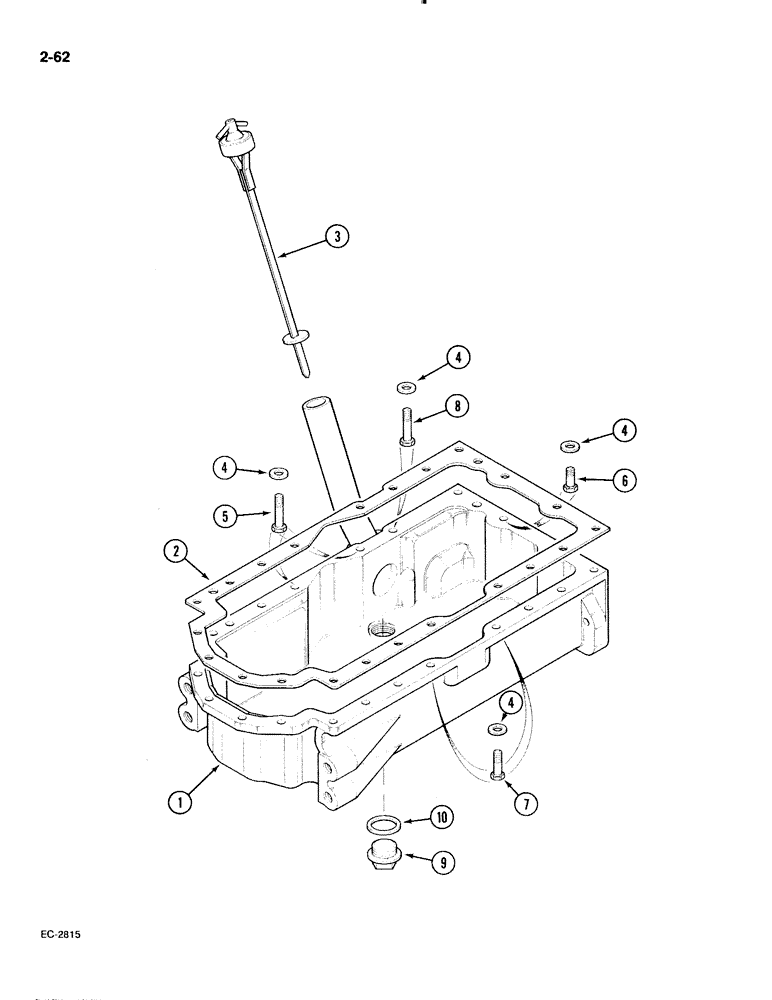

Запчасти Case IH 885 (2-062) - CYLINDER BLOCK OIL PAN (02) - ENGINE

1

1806867C91

PAN, ENGINE OIL

PAN oil

1шт.

The oil pan bows out on the side. It is not straight on the side, as reflected in the illustration.

1шт.

1

3228036R91

PAN, ENGINE OIL

PAN oil

1шт.

The oil pan bows out on the side. It is not straight on the side, as reflected in the illustration.

1шт.

2

3055161R2

OIL PAN GASKET SET

- oil pan, See Figure 2-066

1шт.

2

3144697R2

OIL PAN GASKET SET

- oil pan

1шт.

3

1329040C1

DIPSTICK

GAUGE - oil level

1шт.

Pipe that gauge fits into is P/N 3136241R1.

1шт.

4

27326R1

WASHER,.344" x 11/16" x .089", HDN

- hardened, 0.344 x 0.688 x 0.089 inch

22шт.

5

28632R1

BOLT,Hex, 5/16" - 18 x 5", Gr 5

- hex, 5/16 NC x 5 inch, grade 5

2шт.

6

181089

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

- hex, 5/16 NC x 1-1/8 inch, grade 5

17шт.

7

186273

BOLT,Hex, 5/16" - 18 x 4 1/4", Gr 5

- hex, 5/16 NC x 4-1/8 inch, grade 5

2шт.

8

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch, grade 5

1шт.

9

3132544R2

PLUG

- hex, oil pan

1шт.

10

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, M26 x 31 x 2

1шт.
