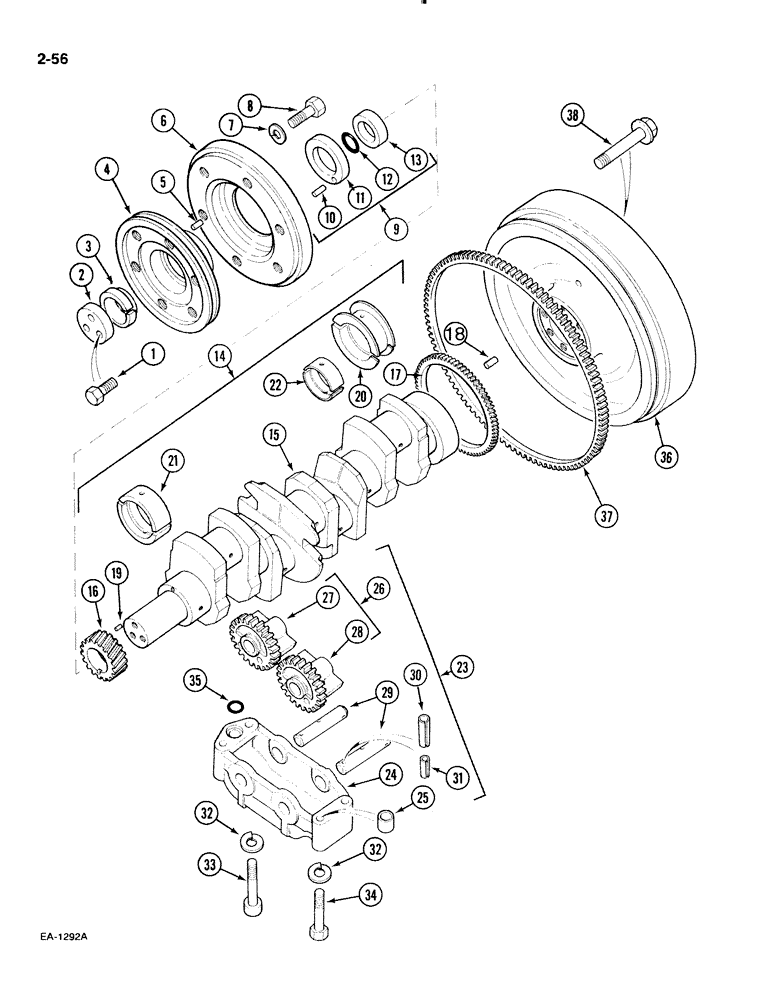

Запчасти Case IH 885 (2-056) - CRANKSHAFT, CRANKSHAFT BALANCER AND FLYWHEEL (02) - ENGINE

1

26-722

BOLT,Hex, 7/16" - 14 x 1-3/8", Gr 8

- hex, 7/16 NC x 1-3/8 inch, grade 8

3шт.

2

3055154R1

WASHER

- pressure

1шт.

3

3055152R91

RING

ELEMENT - spring tightener

2шт.

3055153R1

SPACER,56.64mm ID x 61.72mm OD x 10.16mm L

pressure

2шт.

4

3136324R11

PULLEY

ASSEMBLY crankshaft, Includes: Ref. 5

1шт.

5

932338R1

DOWEL,M4 x 14

PIN dowel

1шт.

6

3136283R1

DAMPER

vibration

1шт.

7

933806R1

WASHER

lock

6шт.

8

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

6шт.

9

3228133R93

SEAL KIT

KIT - service, crankshaft oil seal, Includes: Ref. 10 - 13

1шт.

10

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

10

932652R1

DOWEL,4mm OD x 28mm L

PIN - dowel, 4 x 28 mm

1шт.

10

932224R1

DOWEL,M4 x 32, Oval

PIN - dowel, 4 x 32 mm

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER - distance

1шт.

12

713778R1

O-RING,3mm Thk x 55mm ID

- 55 x 61 mm, See page 2-59

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - radial lip, crankshaft front

1шт.

3228376R91

BEARING ASSY

ASSEMBLY - standard, Includes: Ref. 15 - 22

1шт.

15

NSS

NOT SOLD SEPARAT

CRANKSHAFT - standard size, Includes: Ref. 16 - 19

1шт.

16

3055028R1

PINION

GEAR - pinion, crankshaft, 33 teeth

1шт.

17

3144700R1

GEAR

- balancer drive

1шт.

18

NLS

NO LONGER SERVICED

PIN - dowel, 3/8 x 7/8 inch

1шт.

19

932169R1

LOCK PIN,M4 x 10, Slotted

Spring M4 x 10, Slotted

1шт.

20

3055129R21

CRANKSHAFT BEARING

BEARING - main, standard size

1шт.

21

3055130R21

CRANKSHAFT BEARING

BEARING - main, standard size

4шт.

22

3055351R91

BEARING ASSY

BEARING - connecting rod, standard size

4шт.

22

3056834R11

BEARING ASSY

BEARING, .250 mm under

1шт.

22

3056879R11

BEARING ASSY

BEARING, .500 mm under

1шт.

22

3055781R11

BEARING ASSY

.750 mm under

1шт.

3144701R92

BALANCER

ASSEMBLY - crankshaft, Includes: Ref. 24 - 31

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - balancer, Includes: Ref. 25

1шт.

25

3055174R1

BUSHING

- dowel

2шт.

3228375R91

BALANCER

WEIGHT ASSEMBLY - balancer, matched set, Includes: Ref. 27 and 28

1шт.

27

NSS

NOT SOLD SEPARAT

WEIGHT - idler

1шт.

28

NSS

NOT SOLD SEPARAT

WEIGHT - drive

1шт.

29

3132878R11

PIN,23mm OD x 93mm L

SHAFT - balancer weight

2шт.

30

932229R1

SPLIT PIN/SAFETY PIN

PIN - slotted spring, 4 x 20 mm

2шт.

31

932299R1

LOCK PIN,M2.5 x 20, Slotted

Spring M2.5 x 20, Slotted

2шт.

32

3218543R1

LOCK WASHER

- lock, 7/16 inch, crankshaft balancer

4шт.

33

3144722R1

HEX SOC SCREW

- cap, hex socket, 7/16 NC x 5 inch, crankshaft balancer

1шт.

34

13-752

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 5

Crankshaft balancer Hex, 7/16"-14 x 3 1/4", G5

1шт.

34

13-756

BOLT,Hex, 7/16" - 14 x 3-1/2", Gr 5

Crankshaft balancer Hex, 7/16"-14 x 3 1/2", G5

1шт.

34

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

Crankshaft balancer Hex, 7/16"-14 x 4", G5

1шт.

35

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

See Figure 2-58, Crankshaft balancer -118, 90 Duro, .862" ID x .103" Thk

1шт.

36

1808413C91

FLYWHEEL

- complete with ring gear, Includes: Ref. 37

1шт.

Includes NSS 1808414C82 flywheel

1шт.

37

3218637R1

CROWN WHEEL

GEAR - ring

1шт.

38

3144213R1

BOLT,Hex, 1/2" - 20 x 53mm

- Flywheel mounting

7шт.
