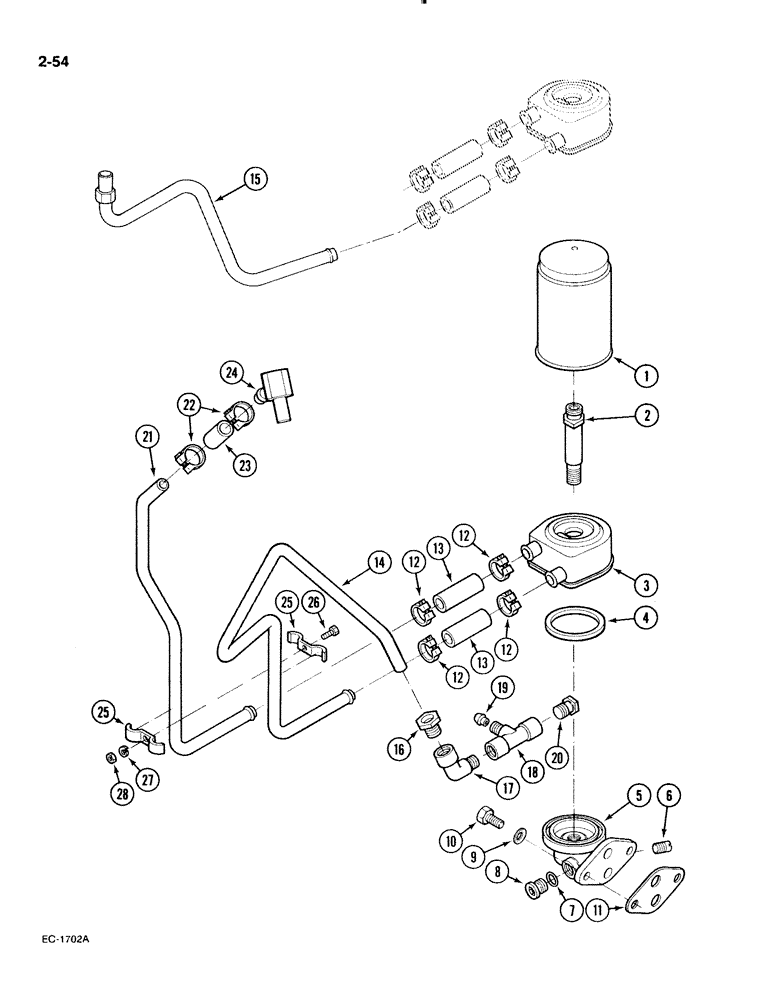

Запчасти Case IH 885 (2-054) - ENGINE, OIL FILTER AND COOLER, P.I.N. 18384 AND AFTER (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
1329020C1
FILTER, ENGINE OIL
FILTER - oil
1шт.
2
1329060C1
CONNECTOR, ELEC
CONNECTOR - threaded
1шт.
3
1329021C91
COOLER, OIL
COOLER - oil, Includes: Ref. 4
1шт.
4
1329059C1
SEALING RING,76.9mm OD x 4.9mm Width
RING - sealing
1шт.
5
3132209R2
PEDESTAL
BASE - oil filter
1шт.
On 885, which is not turbo, you do not need to order the sub 123025A1 because that tube is only required on the turbo units.
1шт.
6
103883
PIPE PLUG,Slotted, Headless, 1/8" NPT
PLUG, PIPE, Slotted, Headless, 1/8" NPT
1шт.
7
933155R1
SEALING RING,M16 x 20 x 1.5
1шт.
8
3051784R1
PLUG
- hex socket, M16
1шт.
9
3144513R1
SPRING WASHER
WASHER - disc spring type
2шт.
10
179839
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch, grade 5
2шт.
11
3055237R1
GASKET
- oil filter socket
1шт.
12
3143364R1
CLAMP,19mm - 23mm
- hose
4шт.
13
3136370R1
HOSE,16.00 mm ID x 65.00 mm
- Connecting 16.00 mm ID x 65.00 mm
2шт.
14
1329007C1
PIPE
- oil cooler to water pump, without coolant filter
1шт.
15
1329004C1
PIPE
- tee union to oil cooler, with coolant filter, See Figure 2-022
1шт.
16
222-507
TUBE NUT,7/8"-18
NUT - union, 5/8 inch OD tube
1шт.
17
56445D
ELBOW,90 Degree x 1/2" NPT x 7/8"-18
- 90 degree, 5/8 inch OD tube
1шт.
18
144085
TEE,1/2" NPT, Fem
- 1/2 inch pipe
1шт.
19
191032
PIPE,Nipple, 1/2" NPT x 1 1/2", Brass
ADAPTER - pipe long, 1/2 NPT x 1-1/2 inch
1шт.
20
444630
PLUG,Hex Hd, 1/2"-14
- hex, pipe
1шт.
21
1329006C1
PIPE,15mm Dia, 437, 136 mm L
TUBE - oil cooler to water pump carrier
1шт.
22
3143364R1
CLAMP,19mm - 23mm
- hose
2шт.
23
3228045R1
HOSE
- connecting
1шт.
24
3228044R1
ELBOW
- 90 degree
1шт.
25
3218744R1
CLAMP
- tube
2шт.
26
87716
BOLT,1/4"-20 x 1-1/4", Cl 5
1шт.
27
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
28
109084
NUT,1/4"-20, G5
1шт.
Выбрано товаров: 30
