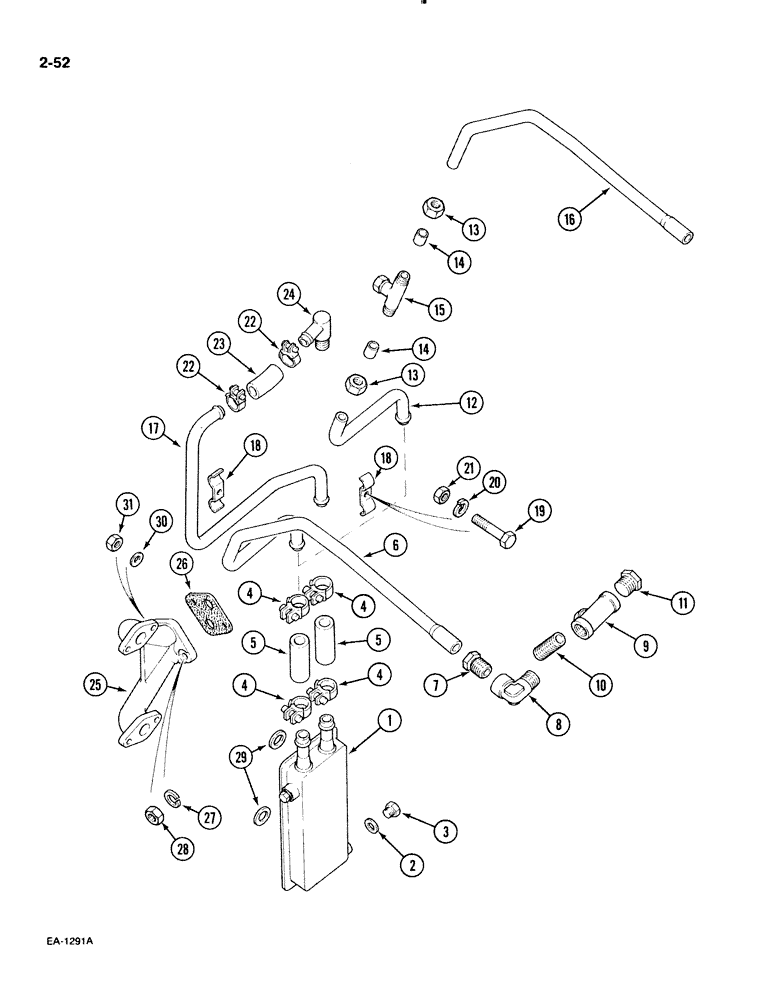

Запчасти Case IH 885 (2-052) - ENGINE OIL COOLER (02) - ENGINE

1

3228132R1

COOLER

- oil

1шт.

2

933697R1

SEALING RING,M10 x 13.5 x 1

RING - packing

1шт.

3

934259R1

PLUG,Hex, M10 x 1

1шт.

4

3143364R1

CLAMP,19mm - 23mm

- hose

4шт.

5

3136370R1

HOSE,16.00 mm ID x 65.00 mm

- Connecting 16.00 mm ID x 65.00 mm

2шт.

6

3228043R1

PIPE

TUBE - oil cooler, without coolant filter

1шт.

7

222-507

TUBE NUT,7/8"-18

NUT - union, 5/8 inch OD tube, without coolant filter

1шт.

8

56445D

ELBOW,90 Degree x 1/2" NPT x 7/8"-18

- 90 degree, 5/8 inch OD tube, without coolant filter

1шт.

9

144085

TEE,1/2" NPT, Fem

- 1/2 inch pipe, without coolant filter

1шт.

10

191032

PIPE,Nipple, 1/2" NPT x 1 1/2", Brass

ADAPTER - pipe long, 1/2 NPT x 1-1/2 inch, without coolant filter

1шт.

11

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

Pipe, w/o coolant filter, Replaces 44463D Hex Hd, 1/2"-14

1шт.

12

3228672R1

TUBE

- oil cooler to tee union, with coolant filter

1шт.

13

3143333R1

TUBE NUT,Coupling, M22 x 1.5

NUT - coupling, with coolant filter

2шт.

14

3143334R1

OLIVE

SLEEVE - coupling, with coolant filter

2шт.

15

3401098R1

TEE,M15 Tube

UNION - tee, with coolant filter

1шт.

16

3228673R1

TUBE

- tee to water pump carrier, with coolant filter

1шт.

17

3228042R2

PIPE

TUBE - oil cooler

1шт.

18

3218744R1

CLAMP

- tube

2шт.

19

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

20

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21

109084

NUT,1/4"-20, G5

1шт.

22

3143364R1

CLAMP,19mm - 23mm

- hose

2шт.

23

3228045R1

HOSE

- connecting

1шт.

24

3228044R1

ELBOW

- 90 degree

1шт.

25

3136403R1

ELBOW

MANIFOLD - oil cooler

1шт.

26

3136404R1

GASKET

- oil, Serial Range: cooler-filter

1шт.

27

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Disc M10.2 ID x 20 OD x 1.1 Thk

2шт.

28

114503

JAM NUT,Jam, 3/8"-16, G5

2шт.

29

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- 3/4 x 1/8 inch, class 6

2шт.

30

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

4шт.

31

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC, grade 5

4шт.
