Запчасти Case IH 885 (2-044) - CYLINDER BLOCK AND RELATED PARTS (02) - ENGINE

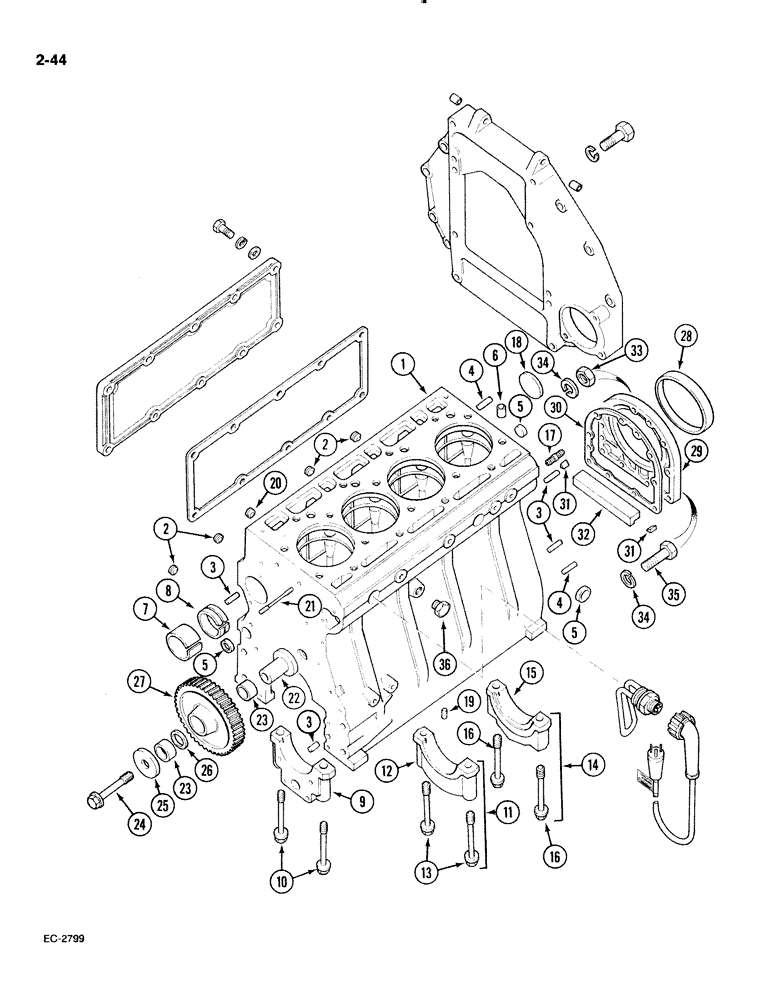

Схема запчастей Case IH 885 - (2-044) - CYLINDER BLOCK AND RELATED PARTS (02) - ENGINE
15
1
7
12
14
16
5
35
20
18
13
16
17
5
6
3
21
25
26
34
9
31
19
29
2
4
8
31
3
30
11
4
32
28
23
10
2
22
3
33
34
27
36
23
24
5

Артикул

Название

Примечание

Количество

3228040R97

ENGINE ASSEMBLY

ENGINE, D-268, complete

1шт.

3144693R95

CRANKCASE

BLOCK - cylinder, complete, Includes: Ref. 1 thru 20

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

2

3144520R1

PLUG

- slotted headless pipe

4шт.

3

141242

DOWEL

PIN - dowel, 3/8 x 7/8 inch

4шт.

4

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

5

933537R1

PLUG,M25, Conical

- cup

4шт.

5

933573R1

PLUG,M32, Tapered

1.25"

4шт.

6

3055007R1

BUSHING

- dowel

2шт.

7

3055008R2

CRANKSHAFT BEARING,57.56mm ID x 63.1mm OD x 30mm W

BEARING - camshaft, front

1шт.

8

1806820C1

CAMSHAFT BEARING,57.98mm ID x 63mm OD x 18mm W

BEARING - camshaft

2шт.

9

NSS

NOT SOLD SEPARAT

CAP - front bearing

1шт.

10

3138885R1

SCREW

BOLT - crankshaft bearing cap

2шт.

11

3144440R91

BEARING ASSY

KIT - service, bearing cap, center, Includes: Ref. 12 and 13

3шт.

12

NSS

NOT SOLD SEPARAT

CAP - crankshaft bearing

1шт.

13

3138885R1

SCREW

BOLT - crankshaft bearing cap

2шт.

14

3144434R91

CRANKSHAFT BEARING

KIT - service, rear bearing cap, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

CAP - rear bearing

1шт.

16

3138885R1

SCREW

BOLT - crankshaft bearing cap

2шт.

17

3055270R1

STUD

- rear

1шт.

18

172602

SUPPORT

- expansion, 2-3/4 inch

1шт.

19

3055173R1

PLUG

1шт.

20

3136004R1

COVER

- closing, 10 mm

1шт.

21

3055989R1

STUD

- crankcase front

1шт.

22

3055373R1

CARRIER

- idler gear

1шт.

23

3058816R91

NEEDLE BEARING CAGE,35mm ID x 42mm OD x 17.8mm W

BEARING - needle

2шт.

23

3136515R91

BEARING

- needle, Serial Range: optional-3058816R91

2шт.

24

3055374R2

BOLT

BOLT - idler gear carrier

1шт.

25

3055372R1

DISC

RING - anti-wear, idler gear

1шт.

26

787656R1

SPACER,35.5mm ID x 41mm OD x 4mm L

RING - distance

1шт.

27

3055043R3

PINION

GEAR - idler

1шт.

28

3138701R91

SEAL

SEAL - oil, crankcase rear

1шт.

29

3055216R1

RETAINER

- oil seal

1шт.

30

3055215R2

GASKET

- crankcase oil seal retainer, See Figure 2-066

1шт.

31

714868R1

SEALING STRIP

- sealing

2шт.

32

3055214R1

SUPPORT

STRIP - crankcase sealing

1шт.

33

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC, grade 5

1шт.

34

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

9шт.

35

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

36

20990R1

PLUG

- hex, 3/8 inch NPTF

1шт.

3218538R1

SHIM

for cylinder protrusion, .05

1шт.

3218539R1

SHIM

for cylinder protrusion, .10

1шт.

3218540R1

SHIM,112.06mm ID x 118.6mm OD x 0.25mm Thk

for cylinder protrusion, .25

1шт.

3218541R1

SHIM

for cylinder protrusion, .50

1шт.

3218542R1

SHIM

for cylinder protrusion, .80

1шт.

Выбрано товаров: 45
