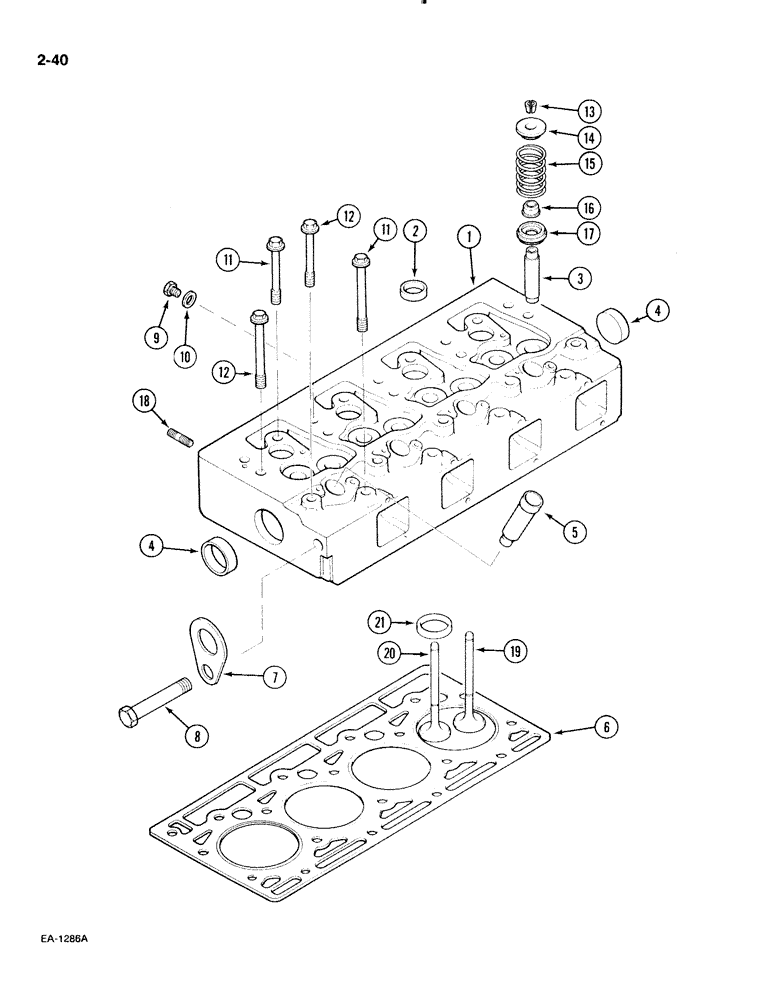

Запчасти Case IH 885 (2-040) - CYLINDER HEAD, VALVES AND STUDS (02) - ENGINE

1

3055367R97

HEAD (CYLINDER)

HEAD - cylinder, Includes: Ref. 2 - 5

1шт.

2

933537R1

PLUG,M25, Conical

- cup, 25 mm OD

4шт.

If looking for a 32 mm plug, order 933573R1.

1шт.

3

3055022R2

VALVE GUIDE

GUIDE - valve stem

8шт.

4

934003R1

PLUG,M52, Conical

- expansion

2шт.

5

3055344R1

SLEEVE

INSERT - nozzle holder

4шт.

6

3228362R2

CYLINDER HEAD GASKET

GASKET - cylinder head, See Figure 2-064

1шт.

7

3055370R1

STIRRUP

SHACKLE - engine mounting, front

1шт.

8

271604

BOLT,Hex, 3/4" - 10 x 1 1/8", Gr 5

- hex, 3/4 NC x 1-1/8 inch, grade 5

1шт.

9

934259R1

PLUG,Hex, M10 x 1

1шт.

10

718743R1

SEALING RING,M10 x 16 x 1

Ring M10 x 16 x 1

1шт.

11

3138747R1

BOLT,Cyl Hd, 9/16" - 12 x 123mm

- cylinder head

8шт.

12

3138748R1

BOLT,Flng, 9/16" - 12 x 5-3/4"

BOLT - cylinder head

10шт.

13

3055057R91

ROCKER ARM COTTER

KEY - spring lock valve

16шт.

14

3055058R2

SPRING CUP

CAP - valve spring retainer

8шт.

15

3055060R1

SPRING

- valve

8шт.

16

3228677R91

SEAL

KIT - service, valve stem seal, See Figure 2-064

1шт.

17

3055059R91

CAP

VALVE - rotator

8шт.

18

3055663R1

STUD

- exhaust manifold, 3/8 NF x 3/8 NC x 38 mm, without coolant filter

8шт.

18

3055663R1

STUD

- exhaust manifold, 3/8 NF x 3/8 NC x 38 mm, with coolant filter

6шт.

18

3228188R1

STUD

- exhaust manifold, with coolant filter

2шт.

19

3055055R2

OVERSIZE INLET VALVE

VALVE - intake

4шт.

The inserts for Ref. 19, 3055055R2 are: Standard 3132577R1 OD 44.09 mm, O/Size 3144754R1 OD 44.24 mm and O/Size 3144755R1 OD 44.49 mm

1шт.

20

3055056R2

STD EXHAUST VALVE

VALVE - exhaust

4шт.

21

3132361R1

INSERT

- seat, exhaust valve, 0.016 inch oversize

1шт.

21

3132362R1

VALVE SEAT

INSERT - seat, exhaust valve, 0.006 inch oversize

1шт.
