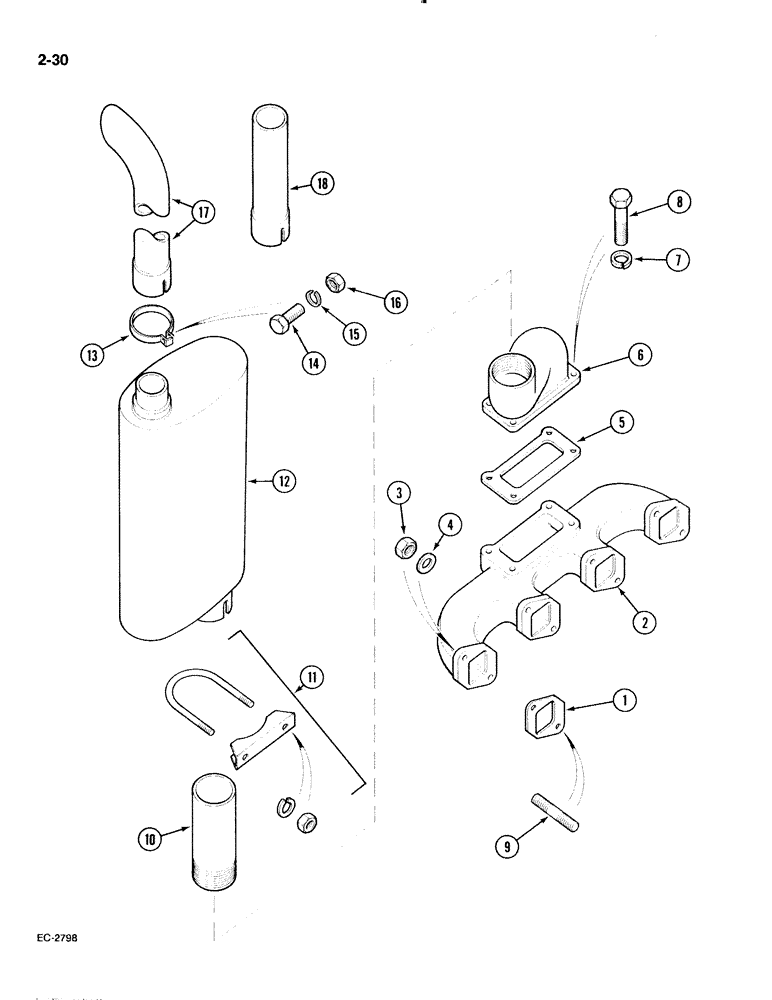

Запчасти Case IH 885 (2-030) - EXHAUST AND MANIFOLD (02) - ENGINE

1

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

1шт.

2

3136066R12

MANIFOLD ASSY

MANIFOLD - exhaust

1шт.

3

103026

NUT,3/8"-24, G5

8шт.

4

20285H

WASHER

- plain, 0.406 x 0.75 x 0.105 inch

8шт.

5

3136248R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

1шт.

6

3136668R1

ELBOW

- exhaust manifold

1шт.

7

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, grade 5

4шт.

9

NSS

NOT SOLD SEPARAT

STUD - exhaust manifold, See Figure 2-040

8шт.

10

80547C1

TUBE

KIT - service, exhaust pipe, with fitting instructions

1шт.

11

1502294C1

CLAMP

- muffler, U-type

1шт.

12

84738C1

MUFFLER

- exhaust, Start Serial: 20135

1шт.

12

83027C1

MUFFLER

- exhaust, curved end, Serial Range: -20135

1шт.

13

1282808C1

CLAMP

- exhaust pipe

1шт.

14

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, grade 5

1шт.

15

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

16

120377

NUT,3/8" - 16, Gr 5

1шт.

17

84755C1

PIPE

- exhaust extension, long, with cab

1шт.

17

84754C1

PIPE

- exhaust extension, short, without cab

1шт.

18

379661R1

PIPE

EXTENSION - exhaust, with ROPS canopy

1шт.
