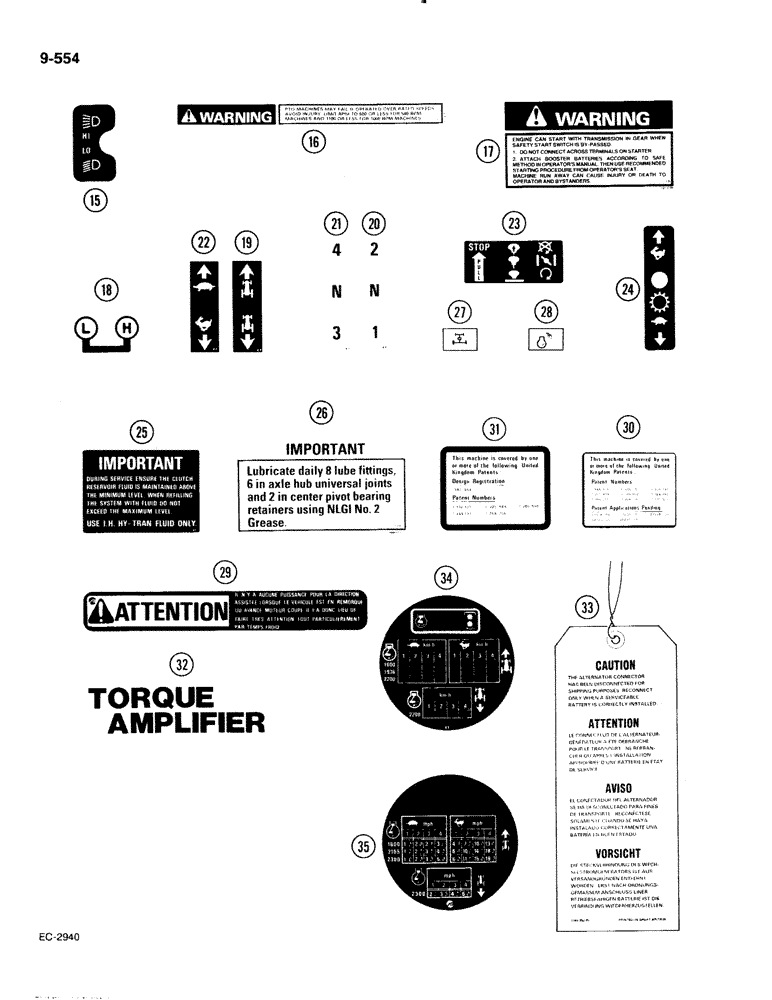

Запчасти Case IH 885 (9-554) - DECALS, WARNING/CAUTION (CONTD) (09) - CHASSIS/ATTACHMENTS

15

1273644C1

DECAL

DECAL - headlight dip, without cab

1шт.

15

91856C1

SYMBOLS

DECAL - symbol, high beam, blue, with cab

1шт.

16

321-6770

DECAL

- warning, PTO overspeed, English, Start Serial: 18001

1шт.

16

321-6781

DECAL

- warning, PTO overspeed, French, Start Serial: 18001

1шт.

1287945C1

DECAL

- warning, PTO overspeed, Serial Range: -18001

1шт.

17

321-3709

DECAL

- warning, starter motor, English, Start Serial: 18001

1шт.

17

321-6798

DECAL

- warning, starter motor, French, Start Serial: 18001

1шт.

18

(Not used in this application)

1шт.

19

(Not used in this application)

1шт.

20

(Not used in this application)

1шт.

21

(Not used in this application)

1шт.

22

533592R1

PRODUCT GRAPHIC

DECAL - governor control

1шт.

23

1135126R2

DECAL

- fuel control (VA pump)

1шт.

23

1333014C1

DECAL

- fuel control (VE pump)

1шт.

24

1330901C1

DECAL

- 2 speed power shift, Start Serial: 18001

1шт.

24

98098C1

DECAL

- 2 speed power shift, with cab

1шт.

25

1135161R1

PRODUCT GRAPHIC

DECAL - clutch fluid, with cab

1шт.

26

99861C1

DECAL

- 4WD lubrication, English

1шт.

27

82525C1

DECAL

DECAL - symbol, 4WD switch, green, Start Serial: 18001

1шт.

28

91857C1

SYMBOLS

DECAL - symbol, ether start switch, yellow, with cab

1шт.

29

1093268R1

PRODUCT GRAPHIC

DECAL - power steering caution, French, without cab

1шт.

30

1093228R1

PRODUCT GRAPHIC

DECAL - patents, without cab

1шт.

31

1135159R1

PRODUCT GRAPHIC

DECAL - patents, with cab

1шт.

32

1135299R2

DECAL

- torque amplifier, Serial Range: -18001

1шт.

33

1093352R1

DECAL

TAG - alternator caution, multi-language

1шт.

34

(Not used in this application)

1шт.

35

1093095R1

DECAL

- speed chart, mph, without cab, with flange type rear axle, for 16.9-30, 18.4-30 and 16.9-34 rear tires

1шт.

35

1288014C1

DECAL

- speed chart, mph, without cab, with bar type rear axle, for 16.9-30, 18.4-30 and 16.9-34 rear tires

1шт.

35

1135218R1

DECAL

- speed chart, mph, with cab, with flange type rear axle, for 16.9-30, 18.4-30, 18.4R30, 16.9-34, 16.9R34, 13.6-36, 13.6R36, 13.6-38, 13.6R38 and 15.5-38 rear tires

1шт.

35

1135203R1

DECAL

- speed chart, mph, with cab, with bar type rear axle, for 16.9-30, 18.4-30, 18.4R30, 16.9-34, 16.9R34, 13.6-36, 13.6R36, 13.6-38, 13.6R38 and 15.5-38 rear tires

1шт.
