Запчасти Case IH 885 (9-552) - DECALS, WARNING/CAUTION (09) - CHASSIS/ATTACHMENTS

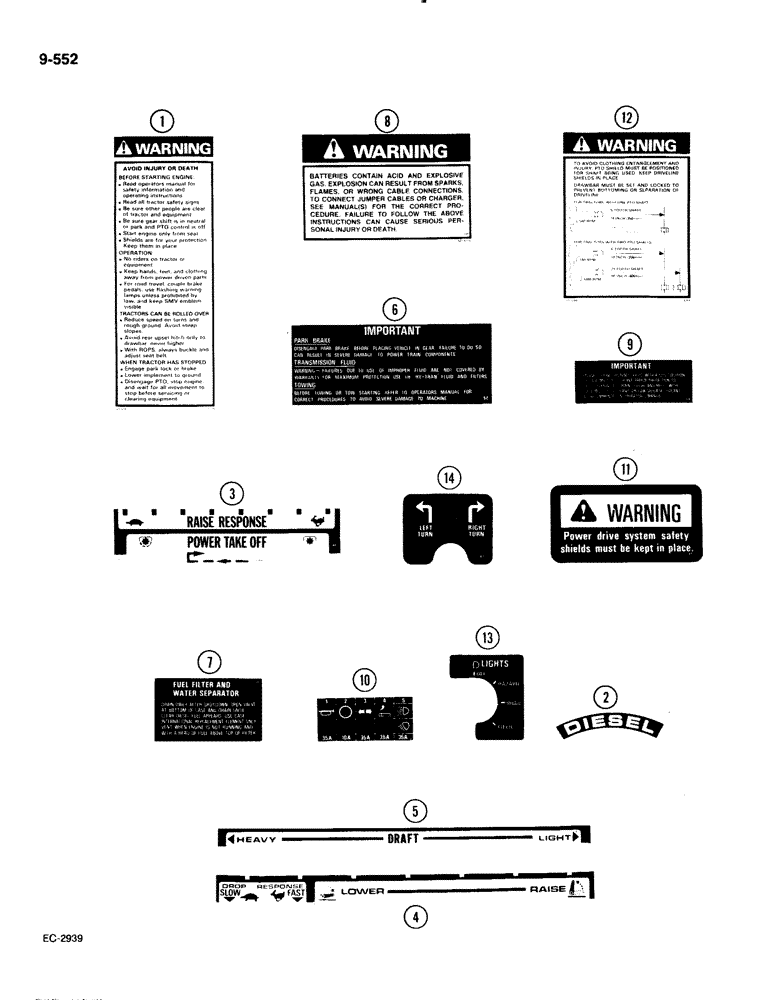

Схема запчастей Case IH 885 - (9-552) - DECALS, WARNING/CAUTION (09) - CHASSIS/ATTACHMENTS
13
3
7
5
9
12
11
4
8
10
6
2
1
14

Артикул

Название

Примечание

Количество

1

321-6771

DECAL

- caution instructions, English

1шт.

1

321-6782

DECAL

- caution instructions, French

1шт.

2

533864R1

PRODUCT GRAPHIC

DECAL - diesel fuel, without cab

1шт.

3

1135102R1

PRODUCT GRAPHIC

DECAL - PTO and raise response guide, English, without cab

1шт.

3

1135103R1

PRODUCT GRAPHIC

DECAL - PTO and raise response guide, French, without cab

1шт.

65771C1

DECAL

- side PTO caution instruction, Serial Range: -18001

1шт.

4

537663R1

PRODUCT GRAPHIC

DECAL - drop response guide, English, without cab

1шт.

4

1092694R1

PRODUCT GRAPHIC

DECAL - drop response guide, French, without cab

1шт.

5

537664R1

PRODUCT GRAPHIC

DECAL - draft control guide, English, without cab

1шт.

5

1092679R1

DECAL

- draft control guide, French, without cab

1шт.

6

1093171R1

DECAL

- product operation warning instruction, English

1шт.

6

1093233R1

DECAL

- product operation warning instruction, French

1шт.

7

99882C1

DECAL

- fuel filter and water separator, English, Start Serial: 18001

1шт.

7

99887C1

DECAL

- fuel filter and water separator, French, Start Serial: 18001

1шт.

1093173R1

PRODUCT GRAPHIC

DECAL - fuel filter and water separator, English, Serial Range: -18001

1шт.

8

321-6714

DECAL

- battery jump start warning, English, Start Serial: 18001

1шт.

8

321-6806

DECAL

- battery jump start warning, French, Start Serial: 18001

1шт.

1093174R1

PRODUCT GRAPHIC

DECAL - alternator, Serial Range: -18001

1шт.

9

99878C1

DECAL

- anti-freeze, English, Start Serial: 18001

1шт.

9

99879C1

DECAL

- anti-freeze, French, Start Serial: 18001

1шт.

1093175R1

PRODUCT GRAPHIC

DECAL - anti-freeze, Serial Range: -18001

1шт.

10

1135340R1

PRODUCT GRAPHIC

DECAL - fuse box symbols, without cab

1шт.

10

1135339R1

DECAL

- fuse box symbols, with cab

1шт.

11

64553C2

PRODUCT GRAPHIC

DECAL - caution, power drive, without cab

1шт.

12

321-6769

DECAL

- warning, dual PTO and drawbar, English, Start Serial: 18001

1шт.

12

321-6780

DECAL

- warning, dual PTO and drawbar, French, Start Serial: 18001

1шт.

1265125C1

PRODUCT GRAPHIC

DECAL - warning, dual PTO, Serial Range: -18001

1шт.

13

1265116C1

PRODUCT GRAPHIC

DECAL - light switch, English

1шт.

13

1265230C1

PRODUCT GRAPHIC

DECAL - light switch, French

1шт.

14

1265117C1

PRODUCT GRAPHIC

DECAL - turn signal, English, without cab

1шт.

14

1265233C1

PRODUCT GRAPHIC

DECAL - turn signal, French, without cab

1шт.

14

98099C1

DECAL

- turn signal, with cab

1шт.

A180055

CAP ASSY.

DECAL plastic, of Eagle, on steering cap

1шт.

Выбрано товаров: 33
