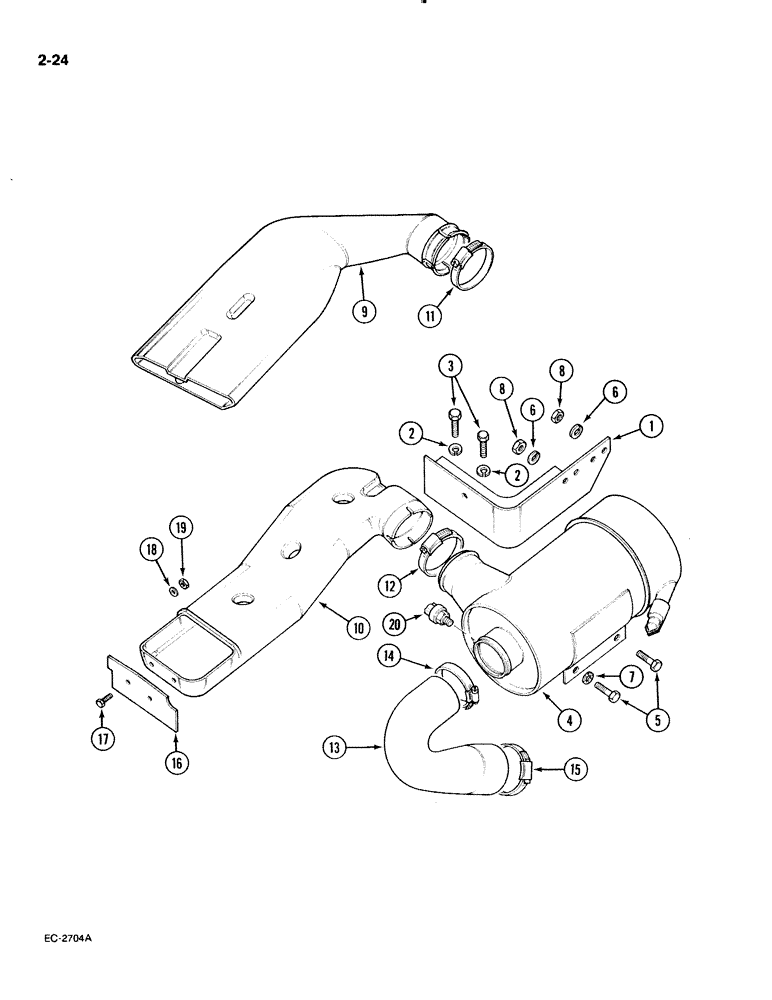

Запчасти Case IH 885 (2-024) - AIR CLEANER AND CONNECTIONS (02) - ENGINE

1

3121420R1

SUPPORT

BRACKET - air cleaner mounting

1шт.

2

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch, grade 5

1шт.

4

84490C91

AIR CLEANER

CLEANER - air, 8 inch, Coopers No. CD2037, See Figure 2-026

1шт.

5

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch, grade 5

2шт.

6

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER - lock, external tooth, 3/8 inch

1шт.

8

120377

NUT,3/8" - 16, Gr 5

2шт.

9

not used in this application

1шт.

Ref. 9, if looking for this style, see 529864R1, which is shown in other 85 series books.

1шт.

10

99657C1

DUCT

- air inlet

1шт.

11

not used in this application

1шт.

12

985851R1

CLAMP - hose

1шт.

13

3125121R3

INTAKE AIR HOSE,70.00 mm ID, 88.90 mm ID x 255.00 mm

Air Cleaner Outlet 70.00 mm ID, 88.90 mm ID x 255.00 mm

1шт.

14

539994R1

CLAMP

- hose, No. 350S

1шт.

14

1265535C1

CLAMP

- hose, Serial Range: optional-539994R1

1шт.

15

894005H1

CLAMP

- hose No. 400S

1шт.

15

1265536C1

CLAMP

- hose, Serial Range: optional-894005H1

1шт.

16

99935C1

PLATE

- baffle

1шт.

17

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch, grade 5

2шт.

18

120392

WASHER,1/4", SAE

- plain, 0.281 x 0.625 x 0.051 inch

2шт.

19

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

20

3224405R91

RESTRICTION SWITCH

SWITCH - air cleaner restriction indicator

1шт.

67290C3

SUPPORT

BRACKET for air cleaner

1шт.
