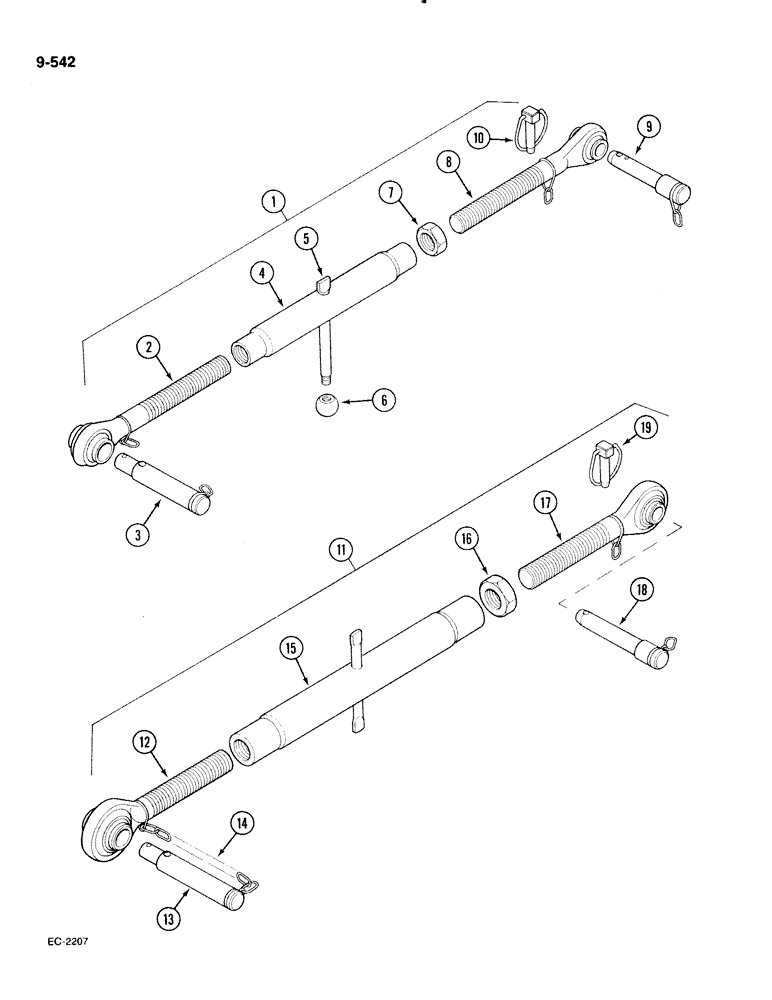

Запчасти Case IH 885 (9-542) - THREE POINT HITCH UPPER LINK (09) - CHASSIS/ATTACHMENTS

1

528079R91

UPPER LINK

LINK - upper, Includes: Ref. 2 - 10

1шт.

2

527994R1

SCREW

- 1-1/8-7 threads, upper, left hand thread

1шт.

3

528084R1

HITCH PIN

PIN - upper link, Category II

1шт.

4

528003R1

TURNBUCKLE

1шт.

5

65958C2

ROD

- turnbuckle handle

1шт.

6

3048296R1

BUTTON

KNOB - turnbuckle rod

1шт.

7

325-157

NUT

- hex lock, 1-1/8 inch NC, grade 5

1шт.

8

527996R1

SCREW

SCREW - upper, right hand thread

1шт.

9

528081R1

PIN ASSY.

PIN - upper link, Category I

1шт.

10

533189R1

PIN

- quick attachable

1шт.

11

1328195C91

LINK

- upper (Optional to 528079R91), Includes: Ref. 12 - 19

1шт.

12

1328189C1

SCREW,M27 x 3, LH Threads

SCREW - M27 x 3 threads, upper, left hand thread

1шт.

13

1328194C1

PIN

- upper link

1шт.

14

1328193C1

CHAIN (AG)

CHAIN - upper link

2шт.

15

1328196C1

TRUNNION,M27 x 3

TURNBUCKLE

1шт.

16

905709R1

THIN NUT,Thin, M27 x 3

- hex

1шт.

17

1328190C1

SCREW,M27 x 3

SCREW - upper, right hand thread

1шт.

18

1328192C1

PIN

- upper link

1шт.

19

1328218C1

LINCH PIN,11mm OD

- link

1шт.
