Запчасти Case IH 885 (9-538) - ROLL OVER PROTECTION FRAME, FOUR POST (09) - CHASSIS/ATTACHMENTS

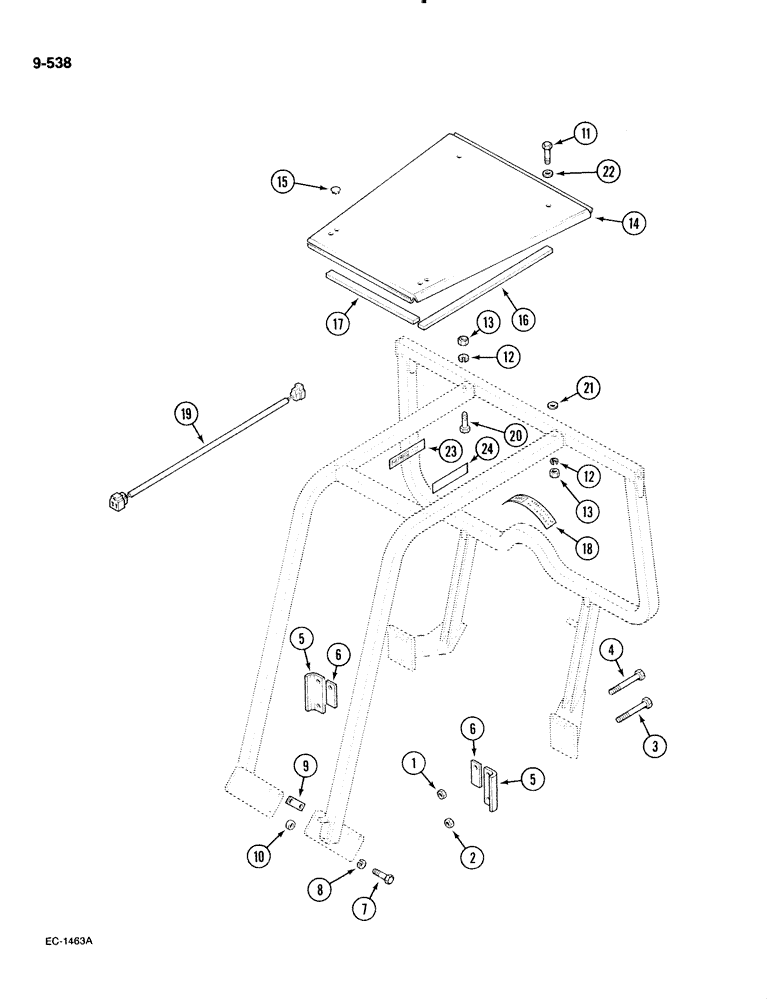

Схема запчастей Case IH 885 - (9-538) - ROLL OVER PROTECTION FRAME, FOUR POST (09) - CHASSIS/ATTACHMENTS
5
13
12
5
20
12
21
7
23
14
19
16
10
22
18
2
9
4
6
3
11
1
15
8
13
6
17
24

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

FRAME - roll over protection, four post

1шт.

1

22049R1

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8 (Bar type rear axle)

4шт.

2

21434R1

NUT,5/8"-11, G8

- hex, 5/8 inch NC, grade 8 (Flange type rear axle)

8шт.

3

380575R2

SCREW,Hex, 5/8" - 11 x 8.80", Gr 8

BOLT - hex, 5/8 NC x 8.8 inch, grade 8 (Flange type rear axle)

8шт.

4

23702R1

BOLT,Hex, 3/4" - 10 x 9", Gr 8

- hex, 3/4 NC x 9 inch, grade 8 (Bar type rear axle)

4шт.

5

66062C1

PLATE

- mounting

2шт.

6

66063C1

DECAL

SHIM

4шт.

7

21457R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

- hex, 3/4 NC x 2-1/4 inch, grade 8

6шт.

8

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

6шт.

9

537308R1

PLATE

- spacer

2шт.

10

537309R1

SPACER

2шт.

11

22228R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

- hex, 5/8 NC x 3-1/2 inch (With canopy)

4шт.

12

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

13

21434R1

NUT,5/8"-11, G8

- hex, 5/8 inch NC, grade 8

4шт.

14

66797C1

TOP

CANOPY

1шт.

15

432487

HOLE PLUG BUTTON,11/16"

PLUG - button, 11/16 inch diameter hole

2шт.

16

118225C1

STRIP

- canopy

1шт.

17

118226C1

STRIP

- canopy

1шт.

18

65982C1

DECAL

- caution instructions

1шт.

19

66064C1

HARNESS

- combination light extension

1шт.

20

20906R1

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

- hex, 5/8 NC x 3-1/4 inch, grade 8 (Without canopy)

4шт.

21

21793R1

WASHER

- flat, 0.656 x 1.250 x 0.164 inch (With canopy)

4шт.

22

21759R1

WASHER

- flat, 0.656 x 2 x 0.105 inch (With canopy)

4шт.

23

70751C1

PRODUCT GRAPHIC

DECAL - ROPS caution instructions, English

1шт.

23

70752C1

PRODUCT GRAPHIC

DECAL - ROPS caution instructions, French

1шт.

24

70773C1

DECAL

- seat belt caution instructions, English

1шт.

24

70774C1

DECAL

- seat belt caution instructions, French

1шт.

Выбрано товаров: 27
