Запчасти Case IH 885 (9-530) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

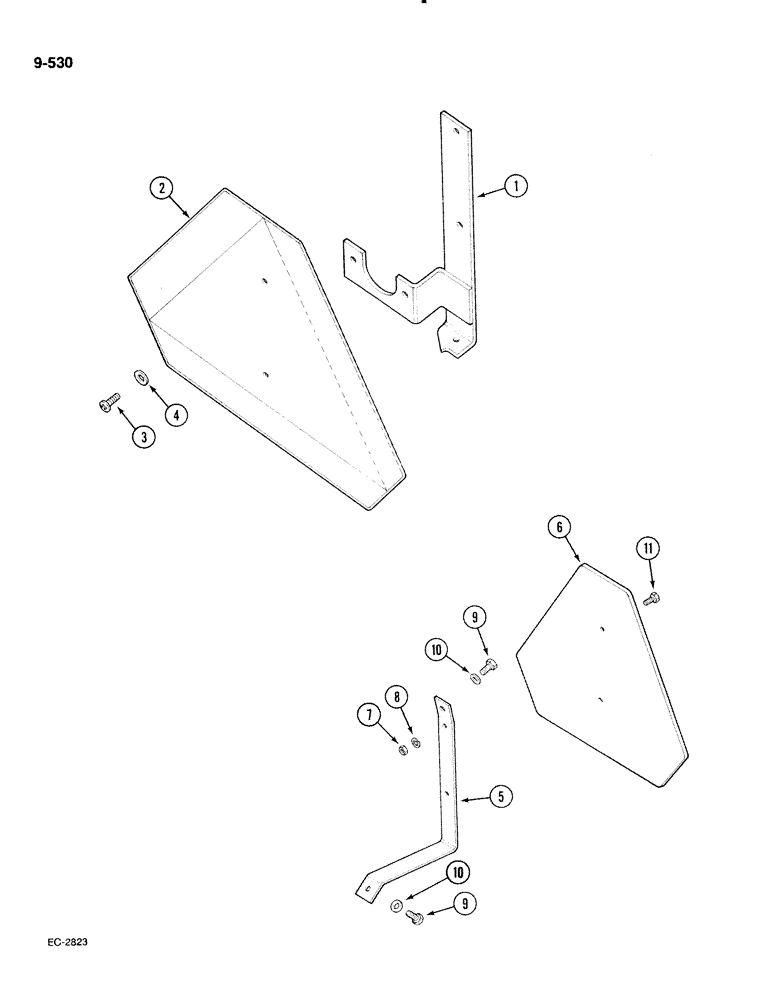

Схема запчастей Case IH 885 - (9-530) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS
4
2
9
8
11
9
10
10
5
6
1
7
3

Артикул

Название

Примечание

Количество

1

114623C2

BRACKET

- emblem mounting, without cab

1шт.

2

1265035C1

EMBLEM

- slow moving vehicle, without cab

1шт.

3

449625

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - tapping, pan cross recess, No. 10 x 5/8 inch, without cab

2шт.

4

120391

WASHER,#10

- flat, 0.219 x 0.5 x 0.036 inch, without cab

2шт.

5

98020C1

SUPPORT

- SMV emblem, with cab

1шт.

6

1265035C1

EMBLEM

- slow moving vehicle, with cab

1шт.

7

120375

NUT,Hex, 1/4" - 20, Gr 5

w/ Cab 1/4"-20, G5

2шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , With cab 1/4"

2шт.

9

931562R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, M8 x 16 mm, class 8.8, PHC, with cab

2шт.

10

933347R1

WASHER,M8 x 16 x 1.6

- plain, 8 mm, with cab

2шт.

11

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

with Cab Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

Выбрано товаров: 11
