(9-528) - SEAT BELT, WITHOUT CAB

Запчасти Case IH 885 (9-528) - SEAT BELT, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

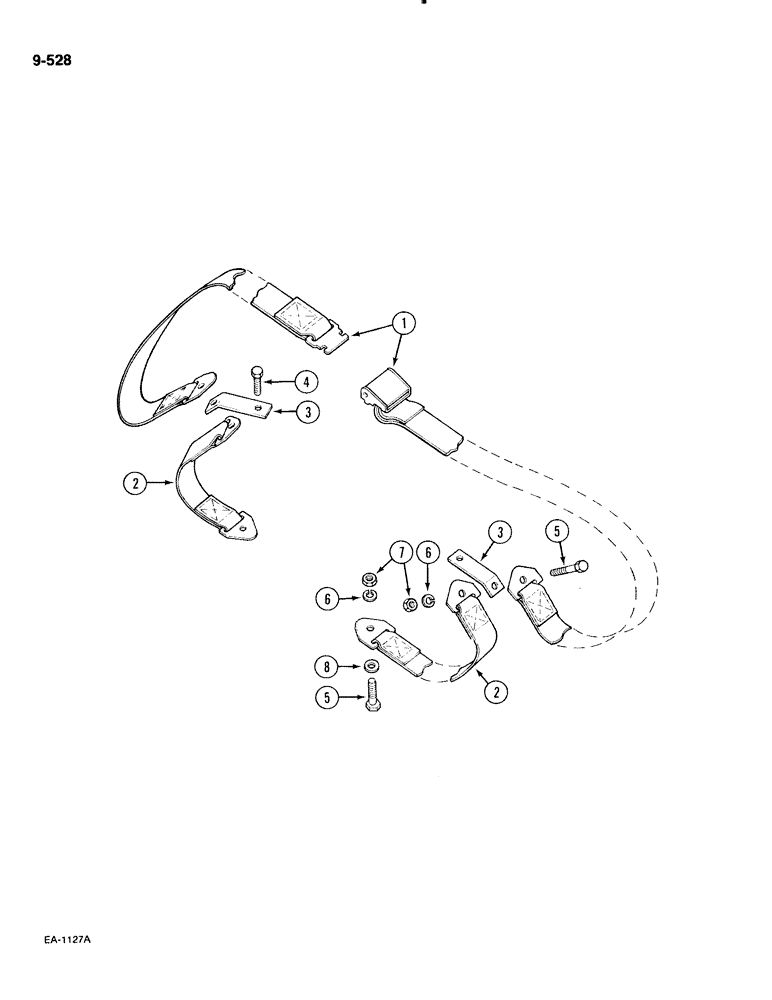

Схема запчастей Case IH 885 - (9-528) - SEAT BELT, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS
6
2
2
5
4
6
7
1
3
3
5
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

537339R1

SAFETY BELT

SAFETY BELT, 2"

1шт.

2

539258R1

SAFETY BELT

SAFETY BELT, Retainer

2шт.

3

539259R1

CLIP

- seat belt retainer

2шт.

4

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

2шт.

5

344096C3

BOLT

BOLT - seat belt anchor

4шт.

6

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

7

24513R1

NUT,7/16"-20, G8

- hex, 7/16 inch NF

4шт.

8

NLS

NO LONGER SERVICED

- plain, 3/8 inch

4шт.
