Запчасти Case IH 885 (9-526) - SEAT, BOSTROM (CONTD) (09) - CHASSIS/ATTACHMENTS

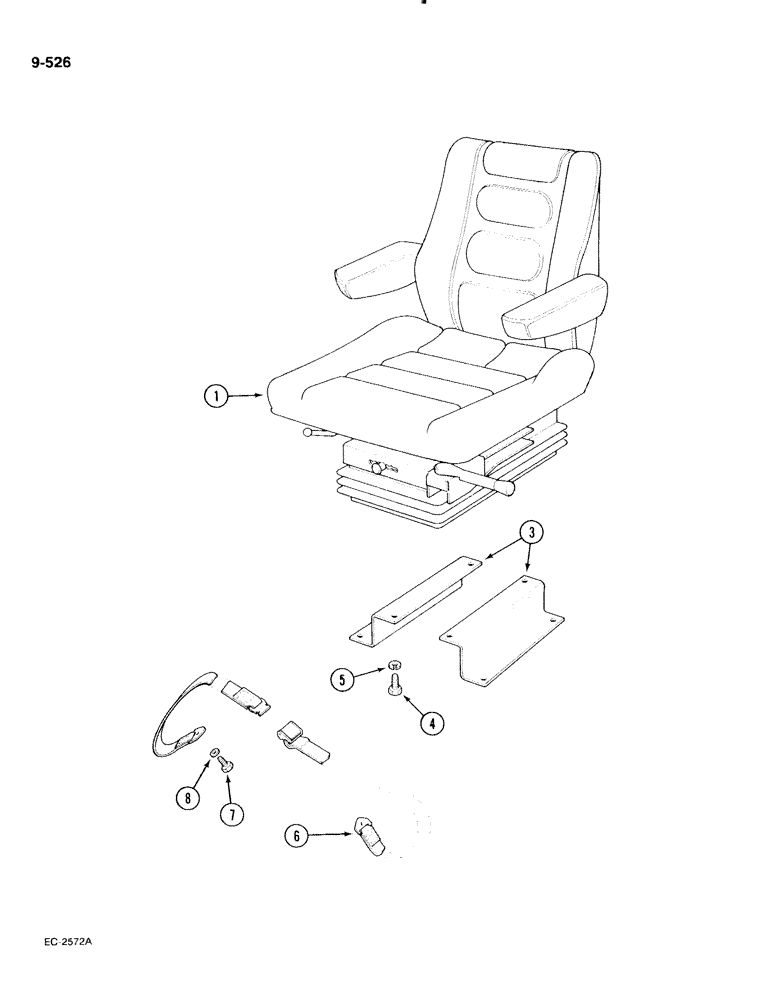

Схема запчастей Case IH 885 - (9-526) - SEAT, BOSTROM (CONTD) (09) - CHASSIS/ATTACHMENTS
5
6
4
8
1
3
7

Артикул

Название

Примечание

Количество

1

97288C1

SEAT ASSY.

SEAT suspension, deluxe, includes parts in Figure 9-524 and all parts in this figure except Ref. 3 thru 8

1шт.

1977764C1

SEAT BACK

KIT upper assembly, includes pouch rod, clip, adapter plate, screw and lock washer in this figure and parts in Figure 9-524

1шт.

NSS

NOT SOLD SEPARAT

ROD - pouch

1шт.

NSS

NOT SOLD SEPARAT

CLIP

15шт.

NSS

NOT SOLD SEPARAT

PLATE - adapter

1шт.

NSS

NOT SOLD SEPARAT

SCREW - M6 x 12 mm

4шт.

NSS

NOT SOLD SEPARAT

WASHER - lock, M6

4шт.

1977765C1

KIT

slide rails, includes right and left slide rails, screws, lock washers and flat washers

1шт.

NSS

NOT SOLD SEPARAT

RAIL - slide, right

1шт.

NSS

NOT SOLD SEPARAT

RAIL - slide, left

1шт.

NSS

NOT SOLD SEPARAT

SCREW - M6 x 16 mm

4шт.

NSS

NOT SOLD SEPARAT

WASHER - lock, M6

4шт.

NSS

NOT SOLD SEPARAT

WASHER - flat

4шт.

NSS

NOT SOLD SEPARAT

SCREW - M8 x 20 mm

4шт.

934309R1

LOCK WASHER,M8

WASHER - lock, M8

4шт.

NSS

NOT SOLD SEPARAT

WASHER - flat, left rail

2шт.

1977766C1

KIT

arm rests, includes rest arms, screw, lock washer and spacer

1шт.

NSS

NOT SOLD SEPARAT

ARM - rest

1шт.

NSS

NOT SOLD SEPARAT

ARM - rest

1шт.

NSS

NOT SOLD SEPARAT

SCREW - M8 x 60 mm

4шт.

NSS

NOT SOLD SEPARAT

WASHER - lock, 8 mm

4шт.

NSS

NOT SOLD SEPARAT

SPACER

4шт.

1977767C1

KIT

mounting brackets, includes seat mounting support bracket, screw and lock washer

1шт.

97289C1

SUPPORT

BRACKET - support, seat mounting

2шт.

NSS

NOT SOLD SEPARAT

SCREW - M8 x 20 mm

4шт.

934309R1

LOCK WASHER,M8

WASHER - lock, M8

4шт.

1977768C1

KIT

trim service package, includes back and seat covers, clip, and pouch rod

1шт.

NSS

NOT SOLD SEPARAT

COVER - back

1шт.

NSS

NOT SOLD SEPARAT

COVER - seat

1шт.

NSS

NOT SOLD SEPARAT

CLIP

15шт.

NSS

NOT SOLD SEPARAT

ROD - pouch

1шт.

3

97289C1

SUPPORT

BRACKET - support, seat mounting

2шт.

4

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, M8 x 20 mm, class 8.8

4шт.

5

934309R1

LOCK WASHER,M8

WASHER - lock, M8

4шт.

6

537339R1

SAFETY BELT

SAFETY BELT, 2"

1шт.

7

86509452

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

- hex, 7/16 x 1 inch, grade 5

2шт.

8

120389

WASHER,7/16"

- 0.50 x 1.25 x 0.064 inch

2шт.

Выбрано товаров: 37
