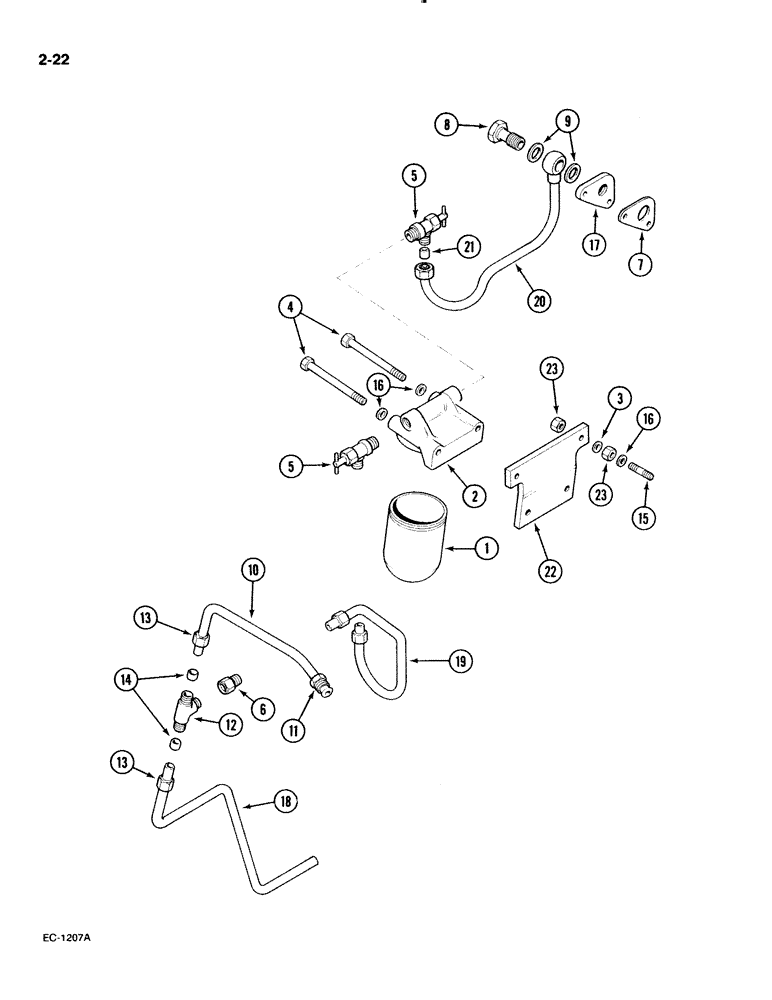

Запчасти Case IH 885 (2-022) - COOLANT FILTER (02) - ENGINE

1

A151931

FILTER

- coolant, Replaces: 1329039 C1

1шт.

2

1800029C1

HEAD

- coolant filter

1шт.

3

25534R1

WASHER

- hardened, 0.406 x 0.812 x 0.065 inch

2шт.

4

186285

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8-16 NC x 4 inch, G5

2шт.

5

690191C1

COCK, DRAIN

VALVE - shut off

2шт.

6

3233208R1

UNION

1шт.

7

3055306R2

GASKET

- manifold, water collecting

1шт.

8

930241R1

BANJO BOLT,M16 x 1.5 x 36mm

SCREW - hollow, M16

1шт.

9

933155R1

SEALING RING,M16 x 20 x 1.5

2шт.

10

1329003C1

PIPE

- water pump carrier to tee union

1шт.

11

222-507

TUBE NUT,7/8"-18

NUT - union, 5/8 inch OD tube

1шт.

12

3401098R1

TEE,M15 Tube

UNION - tee

1шт.

13

3143333R1

TUBE NUT,Coupling, M22 x 1.5

NUT - coupling

2шт.

14

3143334R1

OLIVE

SLEEVE - coupling

2шт.

15

3228188R1

STUD

- exhaust manifold, See Figure 2-040

2шт.

16

20285H

WASHER

- plain, 0.406 x 0.75 x 0.105 inch

2шт.

17

3218396R2

FLANGE

PLATE - cover

1шт.

18

1329004C1

PIPE

- tee union to oil cooler

1шт.

19

1329005C91

PIPE

- tee union to coolant filter

1шт.

20

3228212R93

PIPE

- coolant filter to outlet, Includes: Ref. 21

1шт.

21

3228191R1

SEALING WASHER

SLEEVE - coupling

1шт.

22

3228762R1

SUPPORT

BRACKET - coolant filter

1шт.

23

103026

NUT,3/8"-24, G5

4шт.
