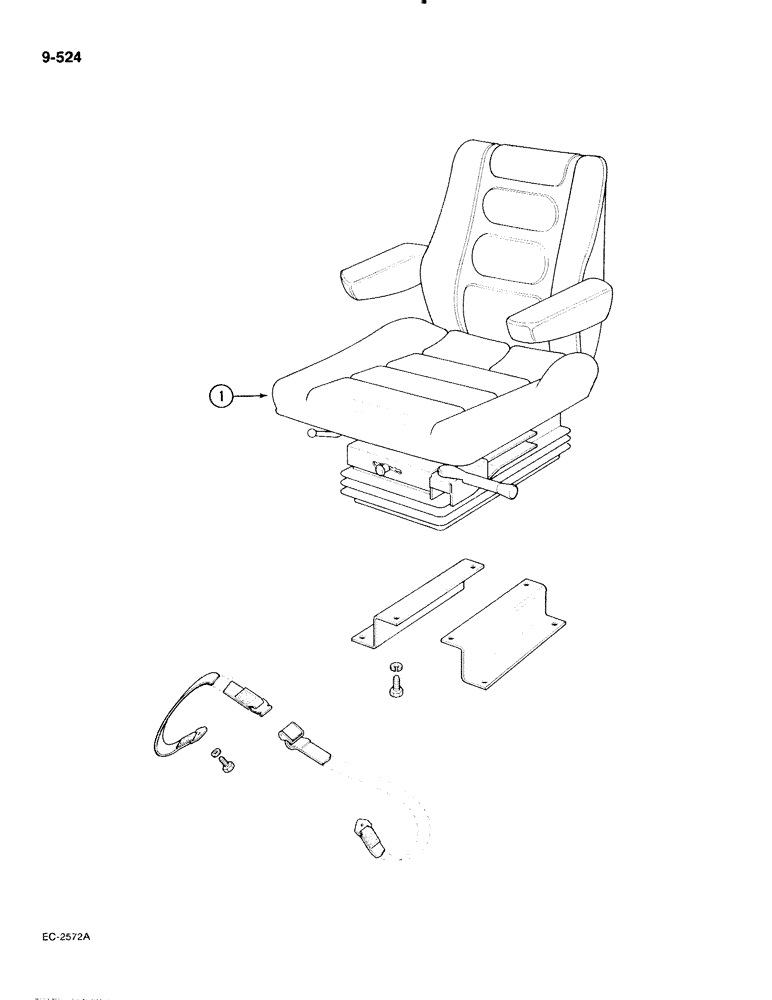

Запчасти Case IH 885 (9-524) - SEAT, BOSTROM (09) - CHASSIS/ATTACHMENTS

1

97288C1

SEAT ASSY.

SEAT - suspension, deluxe, includes all parts shown in this figure and parts in Figure 9-526

1шт.

1977757C1

KIT

- suspension, cover, includes canoe clip, suspension unit cover and clip

1шт.

A49658

FASTENER

CLIP - canoe

10шт.

NSS

NOT SOLD SEPARAT

COVER - suspension unit

1шт.

NSS

NOT SOLD SEPARAT

CLIP

1шт.

1977758C1

SUSPENSION

KIT - suspension, complete

1шт.

1977759C1

KIT

suspension, weight adjuster, includes thrust washer, small adjuster trunnion, clamp nut, complete handle, adjuster stud, spacer and gear

1шт.

3123322R1

THRUST WASHER

WASHER - thrust

1шт.

3123324R1

TRUNNION

- adjuster (Small)

1шт.

3123326R1

NUT

- clamp

1шт.

3123327R1

HANDLE

- complete

1шт.

NSS

NOT SOLD SEPARAT

STUD - adjuster

1шт.

NSS

NOT SOLD SEPARAT

SPACER

2шт.

538570R1

GEAR

1шт.

1977760C1

KIT

roller assembly, includes the three bearings, roll pin, the two pivot pins, roller, and lock nut

1шт.

3123316R1

BUSHING

BEARING

1шт.

NSS

NOT SOLD SEPARAT

PIN - roll

2шт.

NSS

NOT SOLD SEPARAT

BEARING

2шт.

NSS

NOT SOLD SEPARAT

BEARING

1шт.

3123318R1

PIVOT PIN

PIN - pivot

2шт.

3220539R1

BUSHING

ROLLER

4шт.

3123321R1

PIVOT PIN

PIN - pivot

2шт.

43362

NUT,M8 x 1.25, Cl 10

- lock, M8

2шт.

1977761C1

KIT

suspension, height adjuster, includes slide knob, slider spring and hex bolt

1шт.

3123309R1

BUTTON

KNOB - slide

1шт.

3220537R1

SPRING

- slider

1шт.

3220548R1

SCREW

BOLT - hex, M6 x 25 mm

1шт.

1977762C1

KIT

suspension, damper assembly, includes starlock nut, headed pin, and complete damper

1шт.

NSS

NOT SOLD SEPARAT

NUT - starlock

1шт.

NSS

NOT SOLD SEPARAT

PIN - headed

1шт.

NSS

NOT SOLD SEPARAT

DAMPER - complete

1шт.

1977763C1

KIT

suspension, bump stops, includes bumper button and rubber bumper

1шт.

3123308R1

BUMPER

BUTTON - bumper

2шт.

3220516R1

STOP

BUMPER - rubber

1шт.

1977764C1

SEAT BACK

KIT upper assembly, includes back and seat covers, back and seat foam, seat assembly frame, spring clip, trim bar and hog ring listed below and parts in Figure 9-526

1шт.

NSS

NOT SOLD SEPARAT

COVER - back

1шт.

NSS

NOT SOLD SEPARAT

COVER - seat

1шт.

NSS

NOT SOLD SEPARAT

FOAM - back

1шт.

NSS

NOT SOLD SEPARAT

FOAM - seat

1шт.

NSS

NOT SOLD SEPARAT

FRAME - seat assembly

1шт.

NSS

NOT SOLD SEPARAT

CLIP - spring

2шт.

NSS

NOT SOLD SEPARAT

BAR - trim

2шт.

NSS

NOT SOLD SEPARAT

RING - hog

3шт.
