Запчасти Case IH 885 (9-522) - SEAT SUSPENSION, GRAMMER, WITH CAB (09) - CHASSIS/ATTACHMENTS

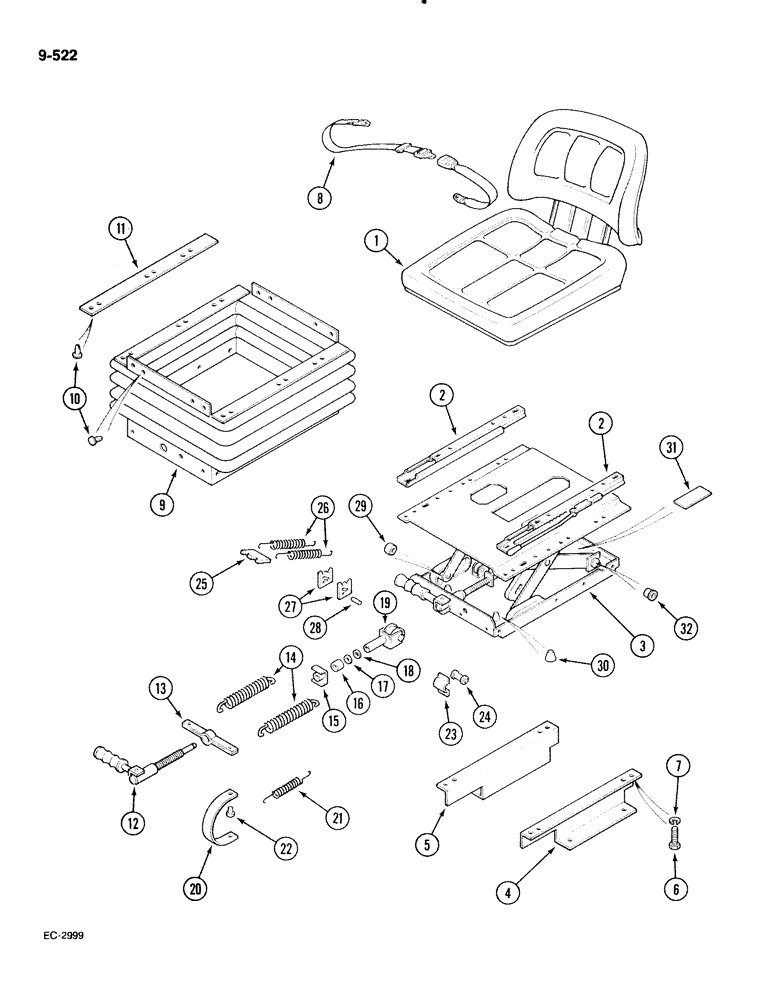

Схема запчастей Case IH 885 - (9-522) - SEAT SUSPENSION, GRAMMER, WITH CAB (09) - CHASSIS/ATTACHMENTS
25
11
32
2
12
6
27
1
17
3
16
20
28
13
7
14
18
19
23
22
29
26
24
10
8
21
9
5
4
15
30
31
2

Артикул

Название

Примечание

Количество

1

98167C1

CUSHION

SEAT - top

1шт.

2

98204C1

RAIL

- slide (Set of 2)

1шт.

3

98205C1

SUSPENSION BLOCK

SUSPENSION - seat, complete

1шт.

4

3402929R1

SUPPORT

BRACKET - left

1шт.

5

3402930R1

SUPPORT

BRACKET - right

1шт.

6

3402557R1

BOLT

BOLT - hex, M8 x 16 mm

4шт.

7

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

WASHER - serrated lock, 8 mm

4шт.

8

K311331

SEAT BELT

BELT - seat

1шт.

98206C1

KIT

- suspension cover, Includes: Ref. 9 thru 11

1шт.

9

3225312R1

BELLOWS

COVER - bellows, suspension protection

1шт.

10

3225292R1

PLUG

FASTENER

27шт.

11

3225354R1

BAR

STRIP - fixing

2шт.

98203C1

KIT

- seat rebuild, Includes: Ref. 12 thru 32, U-bracket, bumper set and complete damper

1шт.

12

1281953C91

PIN ASSY.

SPINDLE - assembly, weight adjusting

1шт.

13

3225296R1

HOLDER

- spring

1шт.

14

3225330R1

SPRING

2шт.

15

3225317R1

NUT,Weld, M12

- special, includes plate

1шт.

16

3225318R1

BEARING, BALL

BEARING - needle

1шт.

17

3225319R1

WASHER

1шт.

18

3225298R1

RUBBER WASHER

- rubber

1шт.

19

1281949C1

YOKE

FORK - complete

1шт.

20

3230234R1

INDICATOR STRIP

SCALE - weight indicator

1шт.

21

3225332R1

SPRING

1шт.

22

3225315R1

BUTTON

ABSORBER - shock

1шт.

23

3225282R1

GUIDE

- weight indicator

1шт.

24

3225299R1

ROLLER

- weight indicator

1шт.

25

3225306R1

RETAINER

- spring

1шт.

26

3225307R1

SPRING

2шт.

27

3225303R1

RATCHET

CAM - height adjustment

2шт.

28

3225320R1

PIN

- roll

1шт.

29

3225310R1

ROLLER

4шт.

30

3134835R1

BUMPER

- rubber

2шт.

31

3225314R1

PLATE

- rubber

1шт.

32

NSS

NOT SOLD SEPARAT

BUSHING

4шт.

NSS

NOT SOLD SEPARAT

BRACKET - U (Not illustrated)

1шт.

NSS

NOT SOLD SEPARAT

SET - bumper (Not illustrated)

1шт.

NSS

NOT SOLD SEPARAT

DAMPER - complete (Not illustrated)

1шт.

Выбрано товаров: 37
