(9-520) - SEAT SUSPENSION UNIT, GRAMMER, PRIOR TO P.I.N. 18001 (CONTD)

Запчасти Case IH 885 (9-520) - SEAT SUSPENSION UNIT, GRAMMER, PRIOR TO P.I.N. 18001 (CONTD) (09) - CHASSIS/ATTACHMENTS

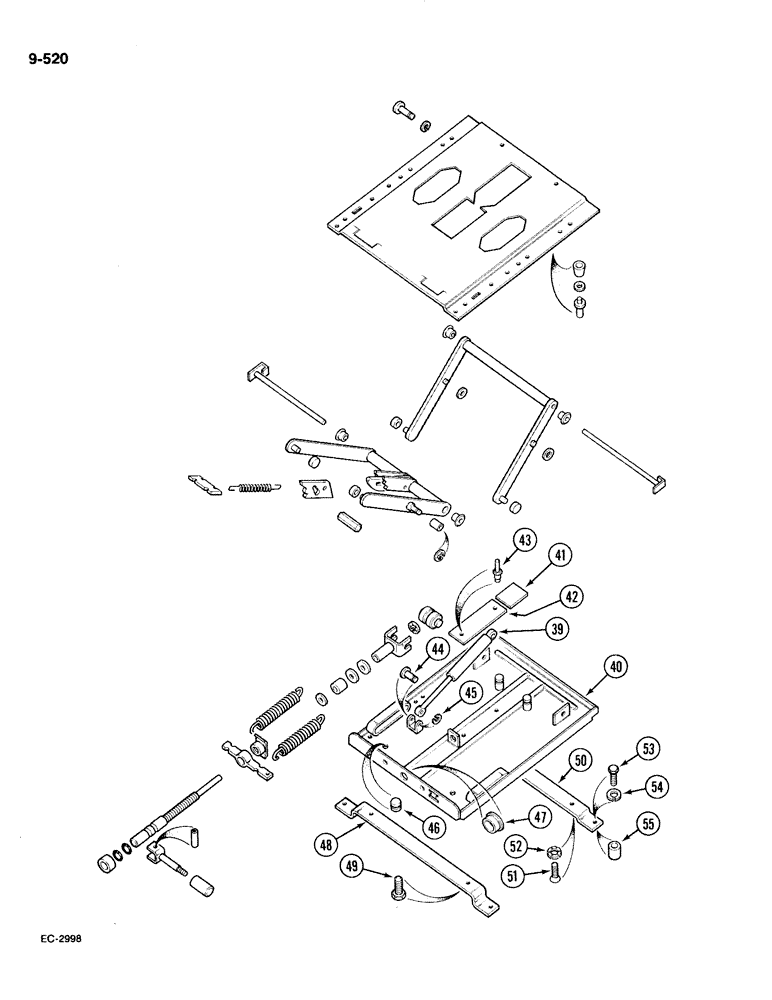

Схема запчастей Case IH 885 - (9-520) - SEAT SUSPENSION UNIT, GRAMMER, PRIOR TO P.I.N. 18001 (CONTD) (09) - CHASSIS/ATTACHMENTS
53
41
50
51
48
39
43
42
49
46
44
40
55
45
52
54
47
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3121423R92

SEAT

suspension, PVC, Includes: Ref. 39 thru 52 in this figure and parts in Figure 9-518

1шт.

39

3402923R1

GAS STRUT

ABSORBER - shock (Used with seat assembly 3121423R92)

1шт.

39

3225300R1

SHOCK ABSORBER

ABSORBER - shock (Used with seat assembly 3121423R91)

1шт.

40

3125994R91

BASE

PLATE - suspension, lower, Includes: Ref. 41 thru 45

1шт.

41

3224314R1

PLATE

- rubber

1шт.

42

3225316R1

SUPPORT

BRACKET

1шт.

43

3225327R1

RIVET

2шт.

44

3225345R1

BOLT,Hex

PIN - headed (Shock absorber retaining)

1шт.

45

30338R1

CIRCLIP,M5

RING - retaining, external, 3.34 mm

1шт.

46

3134835R1

BUMPER

- rubber

2шт.

47

3225297R1

BUSHING

1шт.

48

3125783R1

BRACKET

- seat mounting

1шт.

49

934679R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 4.6

- hex, M8 x 20 mm

2шт.

50

3125782R1

BRACKET

- seat mounting

1шт.

51

931860R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 8.8

- countersunk, hex socket, M8 x 20 mm

2шт.

52

905451R1

WASHER

- serrated lock, 8 mm

2шт.

53

3123563R1

SCREW

- fillister, cross recess, 5/16 x 1-1/2 inch

4шт.

54

3123564R1

LOCK WASHER

WASHER - lock, 5/16 inch

4шт.

55

3123562R1

SPACER

- seat

4шт.
