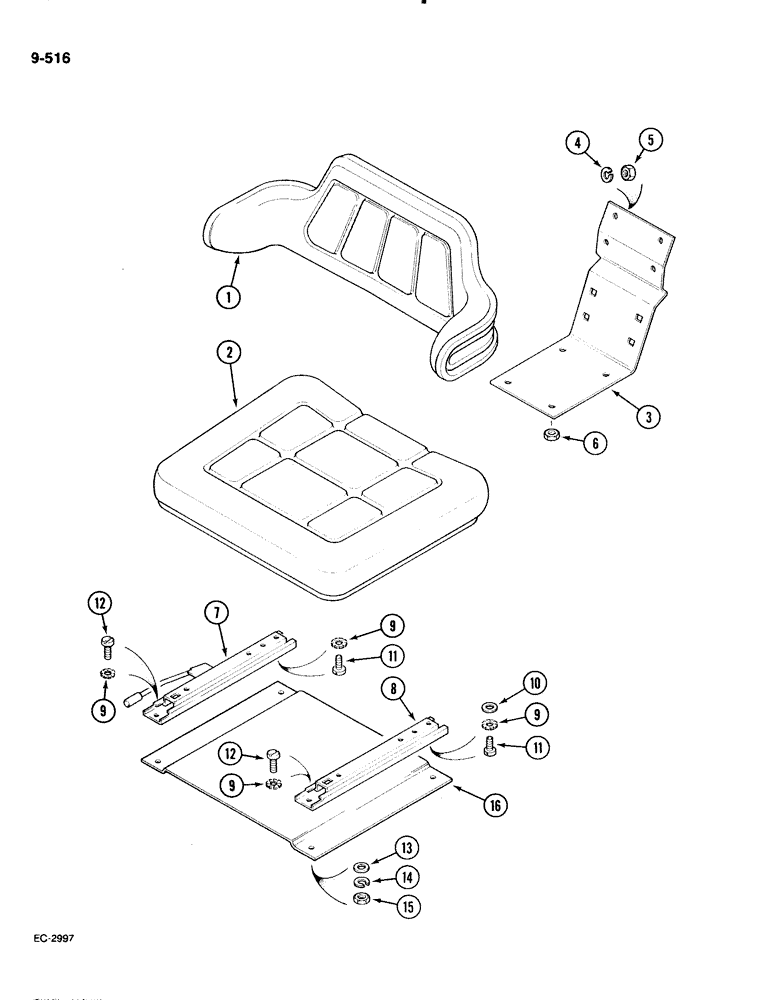

Запчасти Case IH 885 (9-516) - SEAT SUSPENSION, GRAMMER, PRIOR TO P.I.N. 18001 (09) - CHASSIS/ATTACHMENTS

3121423R92

SEAT

- suspension, PVC, Includes: Ref. 1 thru 16

1шт.

1

3125996R1

BACKREST

CUSHION - back, PVC

1шт.

2

3125997R1

CUSHION, SEAT

CUSHION - seat, PVC

1шт.

3

3125995R1

FRAME

- seat

1шт.

4

934676R1

LOCK WASHER,M8

WASHER - lock, 8 mm

4шт.

5

934679R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 4.6

- hex, M8 x 20 mm

4шт.

6

3125992R1

NUT

4шт.

7

3224897R1

RAIL

- adjustable, with handle

1шт.

8

3224898R1

SLIDE GUIDE

RAIL - adjustable

1шт.

9

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

WASHER - serrated lock, 8 mm

6шт.

10

905424R1

WASHER,M10.5 x 25 x4

- flat, 10 mm (Used with 3224898R1)

2шт.

11

934894R1

SCREW,M8 x 20mm, Cl 8.8

- slotted cheese, M8 x 20 mm, class 8.8

4шт.

12

934895R1

SCREW,Slotted Cheese, M8 x 16mm, Cl 8.8

- slotted cheese, M8 x 16 mm, class 8.8

4шт.

13

934675R1

WASHER,M8 x 16 x 1.6

Flat M8 x 16 x 1.6

4шт.

14

934676R1

LOCK WASHER,M8

WASHER - lock, 8 mm

4шт.

15

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

16

3125991R91

SEAT CARRIER

PLATE - suspension, upper, See Figure 9-518

1шт.
