Запчасти Case IH 885 (9-514) - SEAT, NONSUSPENSION, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

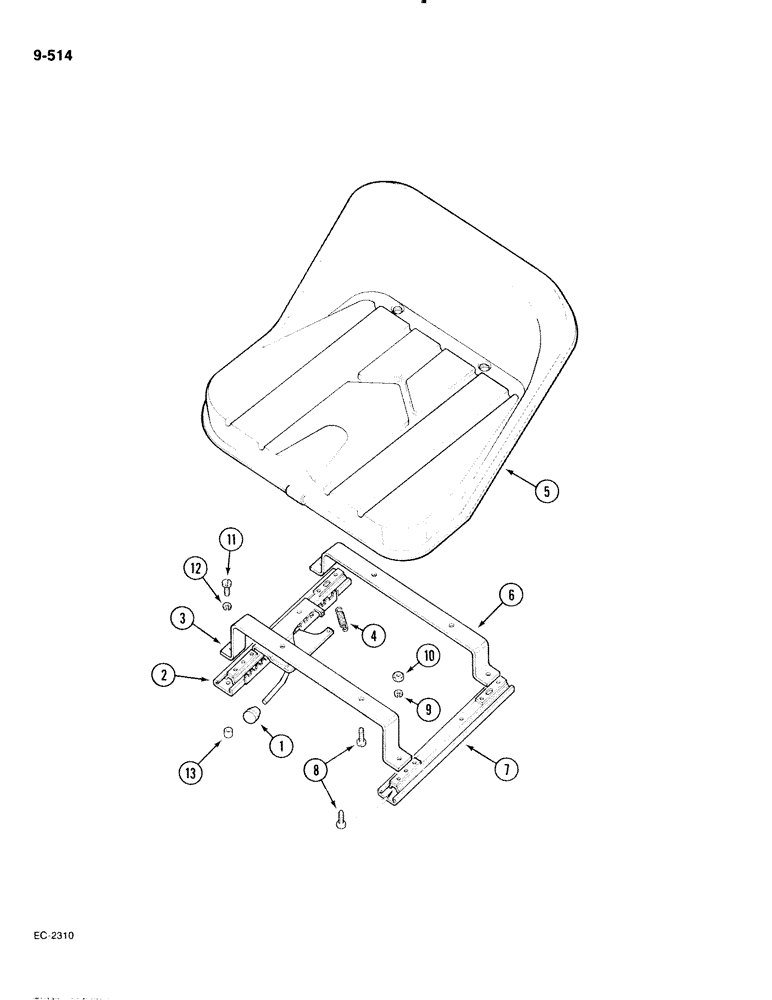

Схема запчастей Case IH 885 - (9-514) - SEAT, NONSUSPENSION, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS
2
4
5
3
1
9
8
13
6
11
10
12
7

Артикул

Название

Примечание

Количество

3121641R91

SEAT ASSY.

SEAT - static (Low profile tractor), Includes: Ref. 1 - 10

1шт.

1

538693R1

BUTTON

KNOB - seat adjustment handle

1шт.

2

825199C91

SLIDE

RAIL - slide, right (With adjuster)

1шт.

3

3121642R1

SUPPORT

BRACKET - front mounting (Low profile tractor)

1шт.

4

538694R1

SPRING

- return

1шт.

5

538026R1

SEAT ASSY.

SEAT - pan

1шт.

6

3121643R1

SUPPORT

BRACKET - rear mounting (Low profile tractor)

1шт.

7

825198C1

RAIL

- slide, left

1шт.

8

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

12шт.

9

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

10

120376

NUT,5/16"-18, G5

4шт.

11

160722

SCREW,Cross Pan Hd, 5/16" - 18 x 1 1/4"

4шт.

12

3123564R1

LOCK WASHER

WASHER - lock, 5/16 inch

4шт.

13

(Not used in this application)

1шт.

Выбрано товаров: 14
