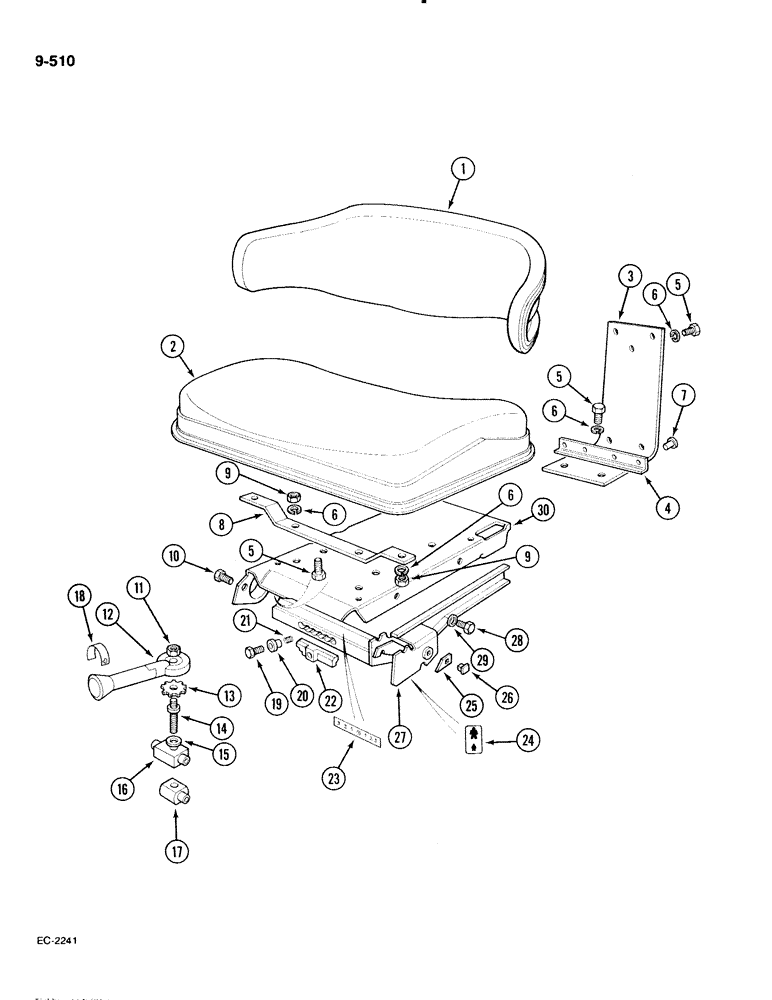

Запчасти Case IH 885 (9-510) - SEAT, SUSPENSION, BOSTROM, PVC, WITHOUT CAB , WITH FORE AND AFT HEIGHT ADJUSTMENT (09) - CHASSIS/ATTACHMENTS

3121421R92

SEAT

- deluxe suspension, PVC, Includes: Ref. 1 - 30 and clip and suspension unit

1шт.

1

3123336R1

BACKREST

CUSHION - back, PVC

1шт.

2

3123332R1

CUSHION, SEAT

CUSHION - seat, PVC

1шт.

3

3123331R2

SUPPORT

- seat back

1шт.

4

3125164R1

BRACKET

1шт.

5

30001R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, M8 x 16 mm, class 10.9

9шт.

6

112723

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

11шт.

7

3125163R1

RIVET

- pop

4шт.

8

3123334R1

SUPPORT

BRACKET - seat tilt

1шт.

9

829-1308

NUT,M8, Cl 10

4шт.

10

3123312R1

SCREW

- taptite, M8 x 16 mm

1шт.

11

3123326R1

NUT

- clamp

1шт.

12

3123327R1

HANDLE

- complete

1шт.

13

538570R1

GEAR

1шт.

14

3123325R1

BOLT

- adjuster

1шт.

15

3123322R1

THRUST WASHER

WASHER - thrust

1шт.

16

3123323R1

TRUNNION

- adjuster (Large)

1шт.

17

3123324R1

TRUNNION

- adjuster (Small)

1шт.

18

3220518R1

PRODUCT GRAPHIC

DECAL - (+/-)

1шт.

19

3220548R1

SCREW

BOLT - hex, M6 x 25 mm

1шт.

20

3123309R1

BUTTON

KNOB - slide

1шт.

21

3220537R1

SPRING

- slider

1шт.

22

3123307R1

SLIDE

- seat adjusting

1шт.

23

3220526R1

DECAL

- indicator

1шт.

24

3123311R1

DECAL

descriptive

1шт.

Subs to 3125310R1

1шт.

25

3220525R1

INDICATOR

1шт.

26

538695R1

PLUG

- end

1шт.

27

3123314R1

SHROUD ASSY.

SHROUD - right

1шт.

28

3123317R1

BOLT

2шт.

29

933965R1

LOCK WASHER,M10

2шт.

30

3123313R1

SEAT PLATE

PLATE - top

1шт.

3220555R1

RETAINER

CLIP - (Not illustrated)

2шт.

NSS

NOT SOLD SEPARAT

UNIT - suspension, See Figure 9-512

1шт.
