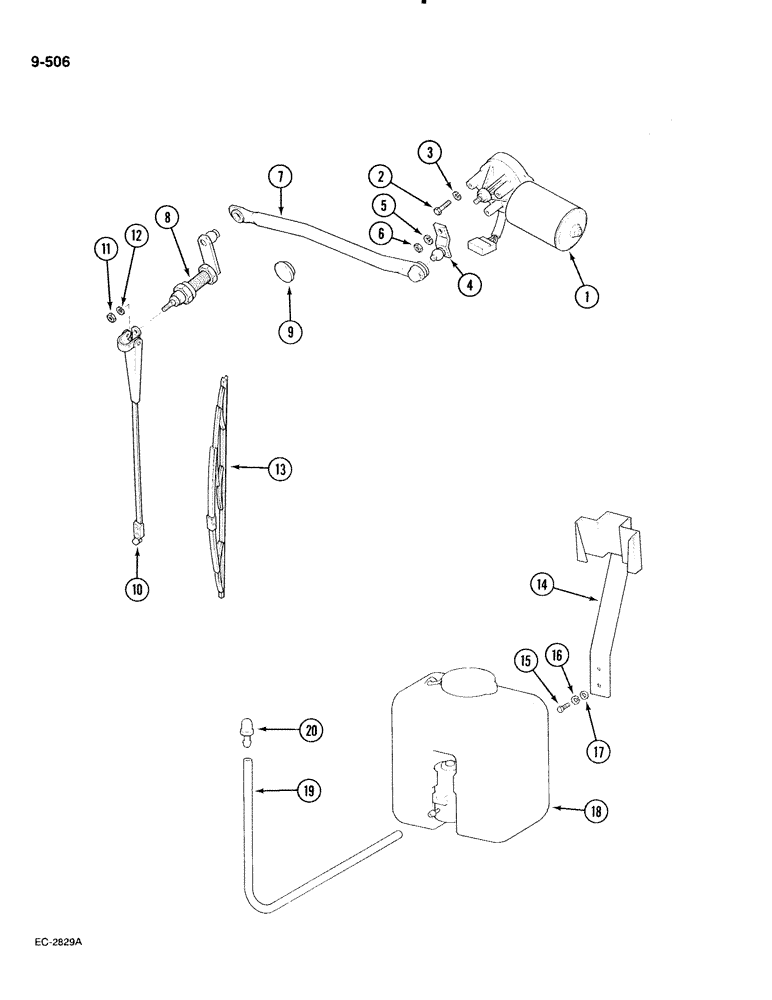

Запчасти Case IH 885 (9-506) - WINDSCREEN WIPER AND WASHER UNIT (09) - CHASSIS/ATTACHMENTS

1330708C93

CAB

- complete with air conditioning and trim, Includes: Ref. 1 - 9

1шт.

1

3401302R93

WIPER MOTOR

MOTOR - windshield wiper

1шт.

2

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

3шт.

3

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

3шт.

4

3234718R1

LEVER

- wiper actuating

1шт.

5

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

1шт.

6

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

- hex, 6 mm, class 8

1шт.

7

3234391R1

LEVER

ARM - wiper actuating

1шт.

8

3234394R1

PIVOT

- wiper actuating

1шт.

9

3234750R1

PLUG

- blanking

1шт.

10

3234745R1

WIPER ARM

ARM - wiper

1шт.

11

934310R1

NUT,M8, Cl 8

- hex, 8 mm, class 8

1шт.

12

934676R1

LOCK WASHER,M8

WASHER - lock, 8 mm

1шт.

12

934309R1

LOCK WASHER,M8

WASHER - lock, (Optional to 934676R1) M8

1шт.

13

3234746R91

WIPER BLADE

BLADE - wiper

1шт.

14

3129895R1

SUPPORT

BRACKET - washer bottle

1шт.

15

930242R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

- hex, M6 x 12 mm, class 8.8

2шт.

16

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

2шт.

17

933346R1

WASHER,M6 x 12 x 1.6

- flat, 6.4 x 12.5 x 1.6 mm

2шт.

18

3129898R1

CONTAINER

- windshield wash liquid

1шт.

19

NSS

NOT SOLD SEPARAT

TUBE - windshield wash (Cut from 3129901R1)

1шт.

19

3129901R1

HOSE,4 mm ID, 6.5 mm OD

TUBE - bulk length (100 meter)

1шт.

20

3129899R91

JET

- windshield wash

1шт.
