(9-504) - WING MIRRORS, "D" ARM

Запчасти Case IH 885 (9-504) - WING MIRRORS, "D" ARM (09) - CHASSIS/ATTACHMENTS

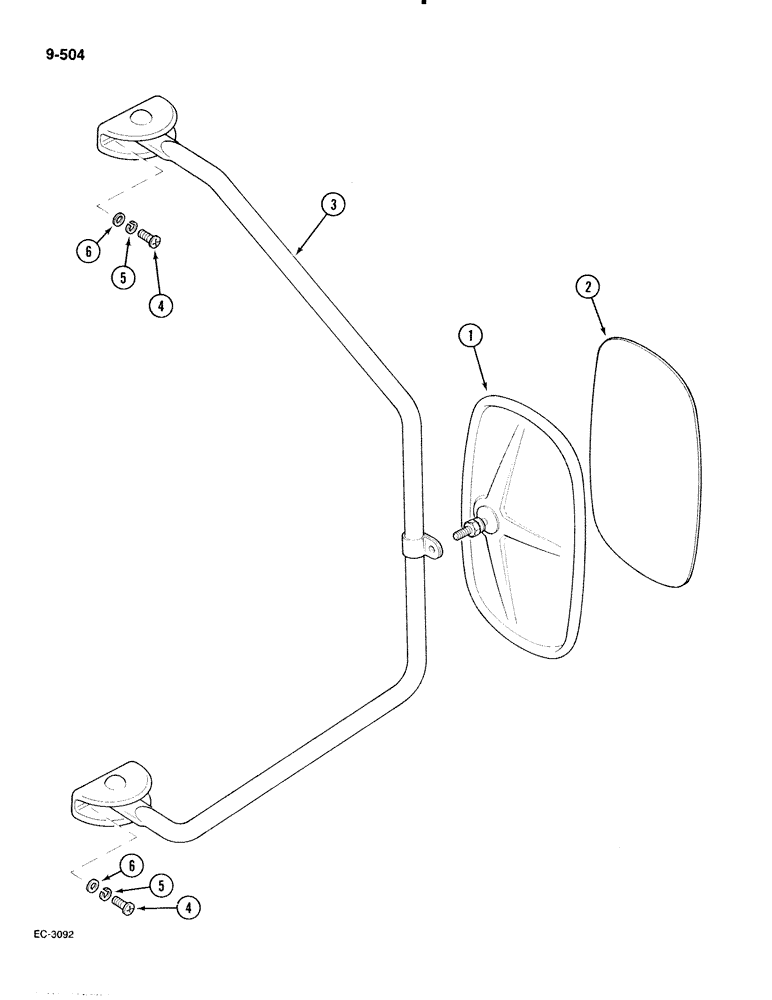

Схема запчастей Case IH 885 - (9-504) - WING MIRRORS, "D" ARM (09) - CHASSIS/ATTACHMENTS
4
1
5
2
3
6
4
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1970874C1

MIRROR

HEAD - mirror, complete, Includes: Ref. 2

2шт.

2

1970873C1

GLASS,CAB

GLASS - mirror

1шт.

3

1970875C1

ARM ASSY.

ARM - mirror, 'D' type, complete

2шт.

4

30301R1

SCREW,Cross Pan Hd, M8 x 20

- pan, cross recess, M8 x 20 mm

8шт.

5

934309R1

LOCK WASHER,M8

WASHER - lock, M8

8шт.

6

934675R1

WASHER,M8 x 16 x 1.6

Flat M8 x 16 x 1.6

8шт.
