(9-500) - BLOWER ASSEMBLY, AIR CONDITIONING, 3233573R1

Запчасти Case IH 885 (9-500) - BLOWER ASSEMBLY, AIR CONDITIONING, 3233573R1 (09) - CHASSIS/ATTACHMENTS

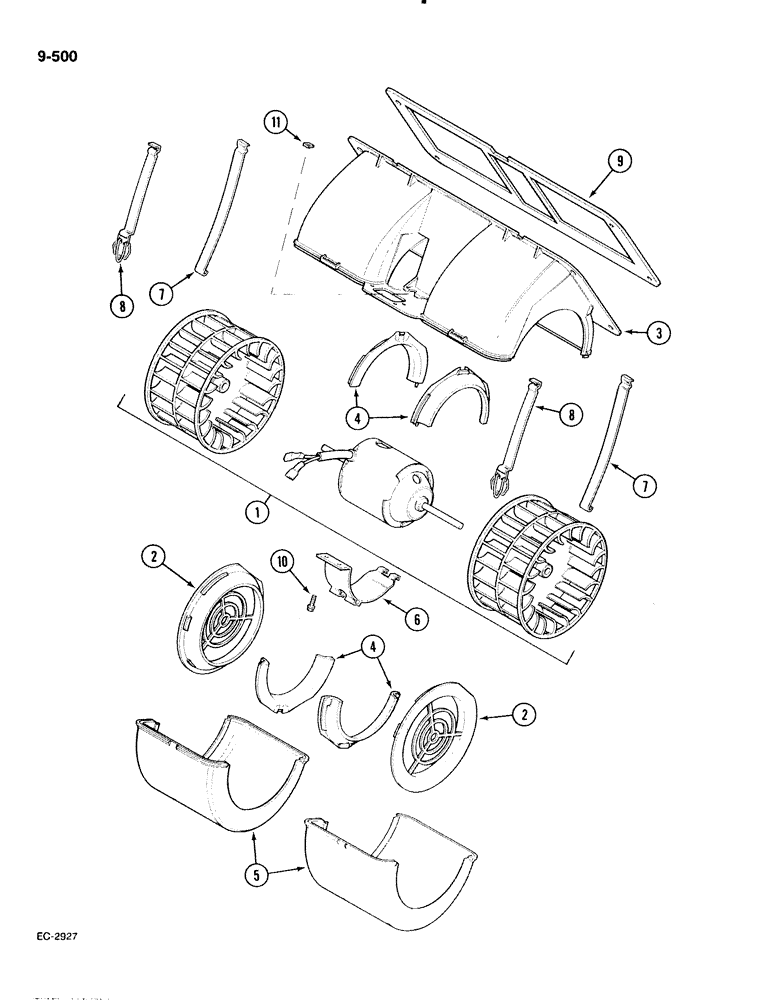

Схема запчастей Case IH 885 - (9-500) - BLOWER ASSEMBLY, AIR CONDITIONING, 3233573R1 (09) - CHASSIS/ATTACHMENTS
8
7
3
6
9
11
10
5
4
8
4
1
2
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3233573R1

BLOWER

- air, Includes: Ref. 1 - 11

1шт.

1

1974779C1

MOTOR

- blower, with wheels

1шт.

1

355190A1R

REMAN-BLOWER,12V

Reman for New PN 1974779C1

1шт.

1

355190A1C

CORE-BLOWER,12V

Return Number

1шт.

2

1974780C1

VENTURI

- blower inlet

2шт.

3

1975737C1

HOUSING

- blower

1шт.

4

1975738C1

RING

- blower housing

4шт.

5

1975739C1

LID

COVER - blower housing

2шт.

6

1975740C1

HOLDER

RETAINER - blower motor

1шт.

7

1975741C1

STRAP

- retaining

2шт.

8

1975742C1

STRAP

- latch retaining

2шт.

9

1975743C1

GASKET

GASKET - blower sealing

1шт.

10

814-5020

BOLT,Hex, M5 x 0.8 x 20mm, Cl 8.8, Full Thd

- hex, 5 mm x 20 mm class 8.8

2шт.

11

1975752C1

SQUARE NUT

- square, 5 mm

2шт.
