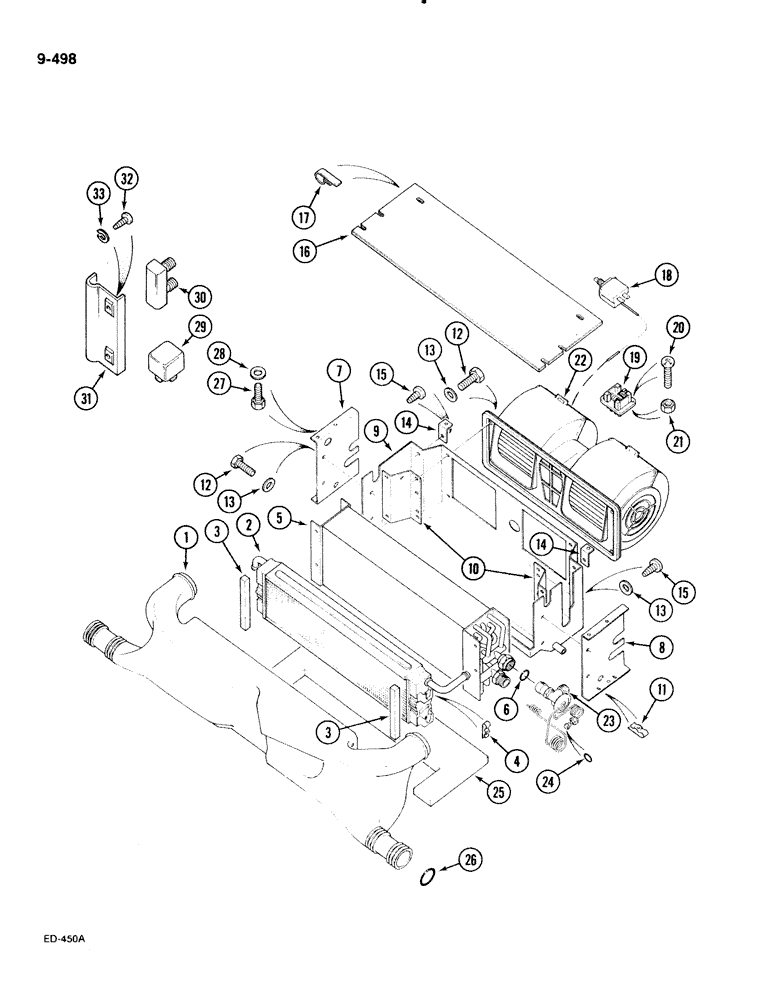

Запчасти Case IH 885 (9-498) - BLOWER ASSEMBLY, AIR CONDITIONING, 1280294C92 (09) - CHASSIS/ATTACHMENTS

1280294C92

HEATER

BLOWER - H.V.A.C., Includes: Ref. 1 - 25

1шт.

1

1280277C2

MANIFOLD

DEFLECTOR

1шт.

2

3233586R91

HEAT-EXCHANGER

ELEMENT - heat exchanger, Includes: Ref. 3 and 4

1шт.

3

1283288C1

GASKET

- foam

2шт.

4

3233660R1

SPRING NUT

- spring, push-on

4шт.

5

1280255C1

EVAPORATOR

- complete assembly, Includes: Ref. 6

1шт.

6

375271R1

O-RING,0.426" ID x 0.07" Width

- 7/16 x 9/16 inch, class 5

1шт.

7

1280281C1

SUPPORT

BRACKET - drain pan side, right

1шт.

8

1280280C1

SUPPORT

BRACKET - drain pan side, left

1шт.

9

1280254C2

HOUSING

PAN - evaporator drain

1шт.

10

1280480C1

SUPPORT

BRACKET - drain pan

2шт.

11

3233707R1

SPRING NUT

- spring, push-on

2шт.

12

931465R1

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

- hex, 6 mm x 16 mm, class 8.8

6шт.

13

934948R1

WASHER,M6

- flat, 6.4 x 12.5 x 1.6 mm

10шт.

14

1280253C1

SUPPORT

BRACKET - drain pan rear

2шт.

15

30773R1

SELF-TAP SCREW,Pan Hd, M4.8 x 16

SCREW - pan head, cross recess, 4.8 x 16 mm

4шт.

16

1280282C1

COVER

1шт.

16

1535269C1

COVER

1шт.

There is a 10 mm piece of urethane foam on this cover. This foam is NSS.

1шт.

17

143382C1

CLIP

- spring

4шт.

18

109268C2

SWITCH

- thermostat

1шт.

19

3404054R1

RESISTOR

- blower

1шт.

19

3234173R1

RESISTOR

-, Serial Range: (Optional-3404054R1)

1шт.

20

30495R1

SCREW,Cross Pan Hd, M3 x 12

- pan head, cross recess, 3 mm x 12mm, class 4.8

2шт.

21

30272R1

NUT,M3, Cl 5

- hex, 3 mm, class 5

2шт.

22

3233573R1

BLOWER

- air, See Figure 9-500

1шт.

23

1280333C1

VALVE

- expansion

1шт.

24

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- 3/16 x 5/16 inch, class 5

1шт.

Use 192344A1 for air conditioned models only.

1шт.

25

1280252C2

INSULATOR

- evaporator

1шт.

26

1280297C1

O-RING,45mm OD x 5.5mm Width

2шт.

27

3230790R1

HEX SOC SCREW,M6 x 16mm, Cl 8.8

- cap, hex socket, M6 x 16 mm, class 8.8

6шт.

28

934948R1

WASHER,M6

- flat, 6.4 x 12.5 x 1.6 mm

6шт.

29

146461C1

RELAY

- 30 amp

3шт.

30

245763C1

CIRCUIT-BREAKER,20A

BREAKER - circuit, 20 amp

1шт.

30

245765C1

CIRCUIT-BREAKER,30A

BREAKER - circuit, 30 amp

1шт.

30

403069C1

CIRCUIT-BREAKER

BREAKER - circuit, 30 amp (Optional to 245763C1 and 245765C1)

1шт.

31

245867C1

HOLDER

- circuit breaker (Not used with 403069C1)

1шт.

32

3233276R1

SELF-TAP SCREW,Pan Hd, M4.2 x 13

SCREW - Phillips tapping, 4.2 x 13 mm

1шт.

33

933844R1

LOCK WASHER,M5

WASHER - lock, 5 mm

1шт.
