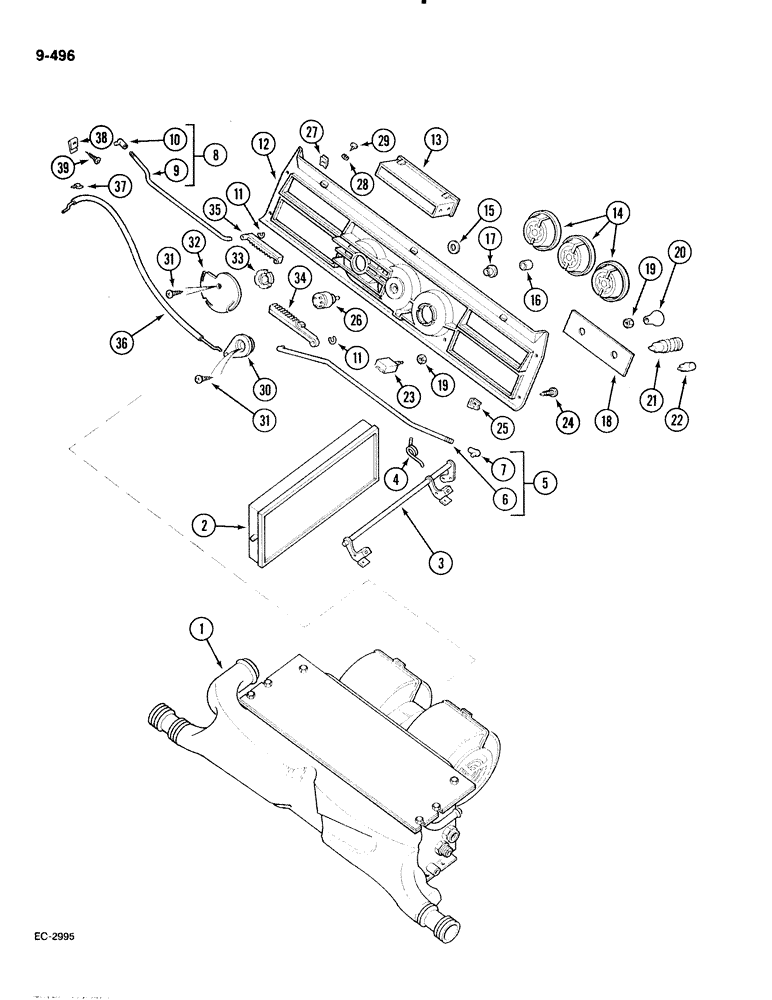

Запчасти Case IH 885 (9-496) - AIR CONDITIONING CONTROLS (09) - CHASSIS/ATTACHMENTS

1330708C93

CAB

- complete with air conditioning and trim, Includes: Ref. 1 - 39

1шт.

1

1280294C92

HEATER

BLOWER - H.V.A.C., See Figure 9-498

1шт.

2

3233584R2

CAB FILTER

FILTER - air cleaner

1шт.

3

3234202R91

SUPPORT

BRACKET - flap assembly, left, See also Figure 9-494

1шт.

3

3234203R91

SUPPORT

BRACKET - flap assembly, right, See also Figure 9-494

1шт.

4

3234192R1

SPRING

- torsion, left

1шт.

4

3234193R1

SPRING

- torsion, right

1шт.

5

3234199R91

ROD ASSY.

ROD - assembly, operating, left, Includes: Ref. 6 and 7

1шт.

6

3234200R1

ROD

- operating, left

1шт.

7

3233279R1

BALL JOINT

JOINT - ball

1шт.

8

3234198R91

LINKAGE

ROD - assembly, operating, right, Includes: Ref. 9 and 10

1шт.

9

3234201R1

ROD

- operating, right

1шт.

10

3234270R1

JOINT - ball

1шт.

11

933699R1

X,M5

RING - retaining, external

2шт.

12

1280331C2

CONTROL PANEL

PANEL - air conditioning control

1шт.

13

3233587R1

DIFFUSER

- upper left

1шт.

13

3233588R1

DIFFUSER

- upper right

1шт.

14

3233615R1

BUTTON

KNOB - air conditioning control

3шт.

15

1332311C1

FRICTION WASHER

- friction

1шт.

16

3233614R1

SPRING CLIP

CLIP - spring

1шт.

17

3233661R1

SCREW

1шт.

18

1280330C2

DECAL

- air conditioning control

1шт.

19

109311H

JAM NUT

- hex, 7/16-28 inch (Thermostat switch)

2шт.

20

3223801R1

BUTTON

KNOB - cooling control

1шт.

21

245661C91

LIGHT ASSY.

LIGHT - indicator, yellow lens, Includes: Ref. 22

1шт.

22

245710C1

LAMP

- bulb, 12V

1шт.

23

109268C2

SWITCH

- thermostat, See Figure 9-498

1шт.

24

3233284R1

SELF-TAP SCREW,Oval Hd, M4.2 x 16

SCREW - tapping, oval cross recess, 4.2 x 16 mm

8шт.

25

3234214R1

SPRING NUT

- spring, push-on

9шт.

26

3405693R1

BLOWER SWITCH

SWITCH - blower

1шт.

27

3234191R1

SPRING NUT

- spring, push-on

3шт.

28

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER - lock, 4 mm

3шт.

29

3234322R1

SELF-TAP SCREW,Pan Hd, M4.2 x 16

SCREW - tapping, cross recess, 2 x 22 mm

3шт.

30

3233677R1

LEVER

- control, heating valve

1шт.

31

905274R1

SELF-TAP SCREW,Oval Hd, M5.5 x 22

SCREW - tapping, oval cross recess, 5.5 x 22 mm

2шт.

32

3234180R1

ECCENTRIC

CAM - eccentric

1шт.

33

3234183R1

GEAR

- wheel

1шт.

34

3234182R1

GEAR RACK

RACK - gear

1шт.

35

3234181R1

GEAR RACK

RACK - gear

1шт.

36

3234197R1

CABLE

- operating, heater water valve, See Figure 9-492

1шт.

37

3233746R1

CLIP

1шт.

38

3401582R1

SPRING NUT

- lock

1шт.

39

30880R1

SELF-TAP SCREW,Pan Hd, M4.8 x 13

SCREW - pan head, cross recess, 4.8 x 13 mm

1шт.
