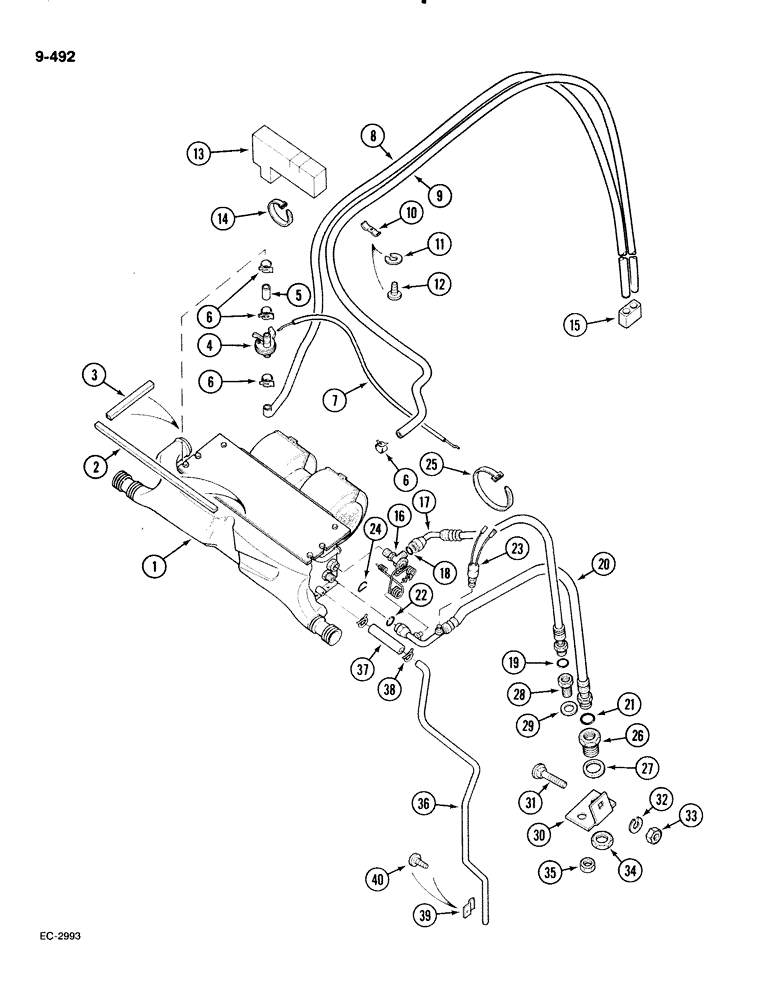

Запчасти Case IH 885 (9-492) - AIR CONDITIONING PIPES, CAB (09) - CHASSIS/ATTACHMENTS

1330708C93

CAB

- complete with air conditioning and trim, Includes: Ref. 1 - 40

1шт.

1

1280294C92

HEATER

BLOWER - H.V.A.C., See Figure 9-498

1шт.

2

3234097R1

SEALING STRIP

- Blower assy, Front and rear

2шт.

3

3234096R1

SEALING STRIP

- blower assembly, side

2шт.

4

3234102R92

VALVE

- heating water

1шт.

5

NSS

NOT SOLD SEPARAT

HOSE - flexible, 40 mm (Cut from R54970)

1шт.

R54970

HEATER HOSE,15.88mm ID x 15240mm Bulk

15.88 mm ID x 15240.0 mm

1шт.

6

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, (Replaces 3143364R1 and 3234060R2) #24

4шт.

7

3234197R1

CABLE

- operating, heater water valve, See Figure 9-496

1шт.

8

3234103R1

HOSE

- Heating water supply

1шт.

9

3234104R1

HOSE

- water return

1шт.

10

3234098R1

CLAMP

SUPPORT - clamp, hoses (If fitted)

1шт.

11

30659R1

LOCK WASHER,Ext Tooth, M5

WASHER - lock, external tooth, 5 mm

1шт.

12

30773R1

SELF-TAP SCREW,Pan Hd, M4.8 x 16

SCREW - pan head, cross recess, 4.8 x 16 mm

1шт.

13

3234122R1

SEALING STRIP

SEAL

2шт.

14

3141429R1

CABLE TIE

STRAP - cable

1шт.

15

3234136R1

PAD, RUBBER

PAD - rubber

1шт.

16

1280333C1

VALVE

- expansion, See Figure 9-498

1шт.

17

1280250C2

PIPE

HOSE - expansion valve to cab base, Includes: Ref. 18 and 19

1шт.

18

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

19

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

- 11/16 x 13/16 inch, class 6

1шт.

Use 189819A1 for air conditioned models only.

1шт.

20

1280251C2

PIPE

HOSE - evaporator to cab base, Includes: Ref. 21 and 22

1шт.

21

343900R1

O-RING,1.051" ID x 0.07" Width

- 1-1/16 x 1-3/16 inch, class 6

1шт.

Use 189818A1 for air conditioned models only.

1шт.

22

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- 9/16 x 11/16 inch, class 5

1шт.

23

111267C3

SWITCH

- low pressure

1шт.

24

118444C1

CLAMP

- expansion valve

1шт.

25

1281534C1

CABLE TIE

STRAP - cable

5шт.

26

1280495C1

COUPLING, BREAK AWAY

COUPLING - half, male

1шт.

27

1281516C1

LOCK WASHER

WASHER - lock

1шт.

28

167869C1

FITTING

COUPLING - half, male

1шт.

29

1281517C1

LOCK WASHER

WASHER - lock

1шт.

30

1281549C2

SUPPORT

BRACKET - air conditioning coupling

1шт.

31

30807R1

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 40mm, Cl 8.8

BOLT - carriage, M16 x 40 mm, class 8.8

1шт.

32

934185R1

LOCK WASHER,M16

WASHER - lock, 16 mm

1шт.

33

30170R1

NUT,M16, Cl 10

- hex, 16 mm, class 10

1шт.

34

1281518C1

JAM NUT

- hex, jam

1шт.

35

1281519C1

JAM NUT

- hex, jam

1шт.

36

1339259C1

PIPE

TUBE - condensation drain (Replaces 1281506C1 and 1281507C1)

2шт.

36

1281506C1

PIPE

TUBE - drain, left (Replaced by 1339259C1)

1шт.

36

1281507C1

PIPE

TUBE - drain, right (Replaced by 1339259C1)

1шт.

37

3405696R2

HOSE

- flexible (Used with 1281506C1 and 1281507C1)

2шт.

38

317683R1

HOSE CLAMP,#10, 5/8", Spring

CLAMP - hose, spring wire type, No. 10

1шт.

39

3405705R1

CLAMP

- drain tube (Used with 1281506C1 and 1281507C1)

8шт.

40

3405710R1

SCREW

- 4.2 x 13 mm

8шт.
