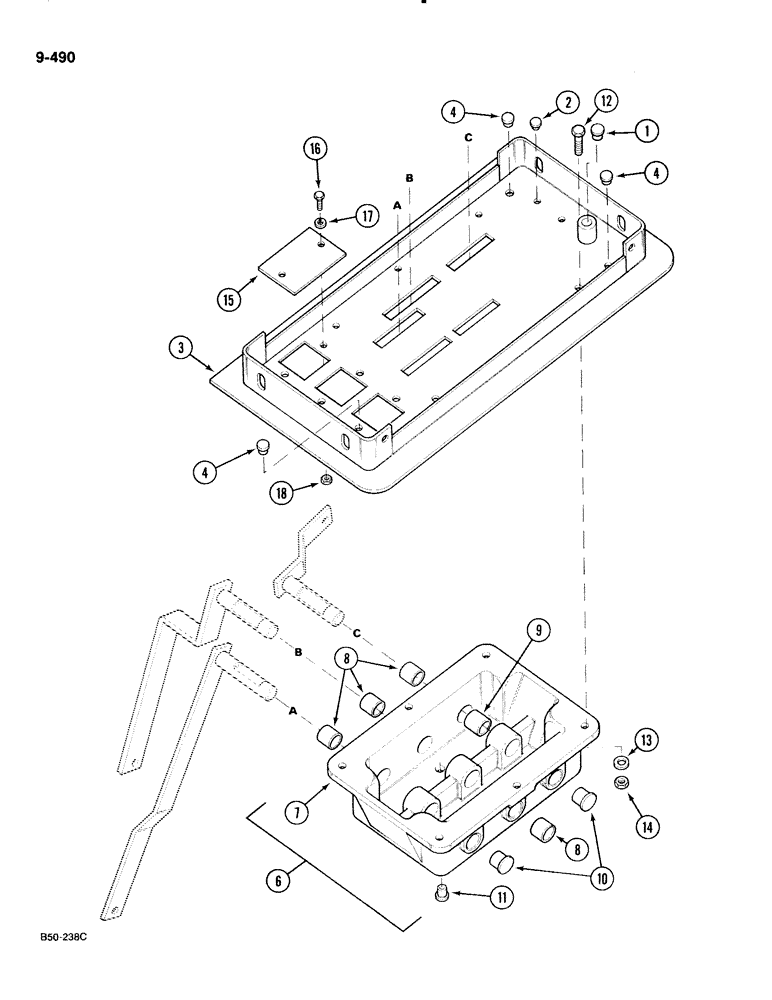

Запчасти Case IH 885 (9-490) - DRAFT CONTROL LEVER HOUSING (09) - CHASSIS/ATTACHMENTS

1

3401908R2

PLUG

- 19 mm

1шт.

2

1328698C1

PLUG

- 7.2 mm diameter

1шт.

3

3129748R91

PLATE

- adaptor, right

1шт.

4

716493R2

PLUG

- 8.6 mm diameter

3шт.

6

3129732R91

HOUSING

- control, complete, Includes: Ref. 7 - 11

1шт.

7

3129317R1

HOUSING

- control

1шт.

8

3229641R1

BUSHING

4шт.

9

3129318R1

BUSHING

3шт.

10

3045397R1

PLUG

- red cap

2шт.

11

1502026C1

PLUG

- red cap

2шт.

12

930609R1

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, M6 x 25 mm, class 8.8

6шт.

13

933346R1

WASHER,M6 x 12 x 1.6

- flat, 6.4 x 12.5 x 1.6 mm

6шт.

14

30281R1

NUT,M6, Cl 10

- hex, M6, class 10

6шт.

15

1500182C1

PLATE

- retaining

3шт.

16

930105R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, M6 x 20 mm, class 8.8

6шт.

17

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

6шт.

18

30281R1

NUT,M6, Cl 10

- hex, M6, class 10

6шт.
