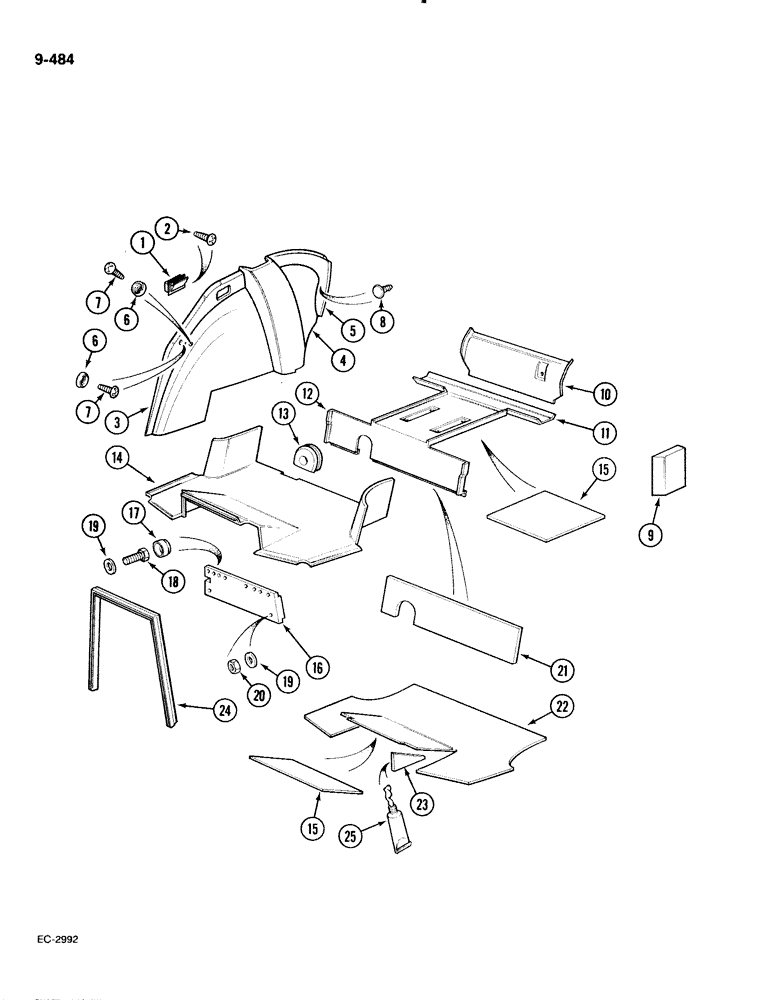

Запчасти Case IH 885 (9-484) - OPERATORS COMPARTMENT COVERING (09) - CHASSIS/ATTACHMENTS

1330708C93

CAB

- complete with air conditioning and trim, Includes: Ref. 1 - 9

1шт.

1

3399810R1

ASH TRAY

ASHTRAY

1шт.

2

3233378R1

SELF-TAP SCREW,Oval Hd, M4.2 x 19

SCREW - tapping, oval cross recess, 4.2 x 19 mm

2шт.

3

3404184R2

LINING

- wheel housing, front left

1шт.

3

3404185R2

LINING

- wheel housing, front right

1шт.

4

3404192R2

LINING

- wheel housing, center left

1шт.

4

3404193R2

LINING

- wheel housing, center right

1шт.

5

3404186R2

FENDER

LINING - wheel housing, rear left

1шт.

5

3404187R2

FENDER

LINING - wheel housing, rear right

1шт.

6

3234052R1

WASHER

- cup, 6 mm

1шт.

7

3233378R1

SELF-TAP SCREW,Oval Hd, M4.2 x 19

SCREW - tapping, oval cross recess, 4.2 x 19 mm

1шт.

8

3404464R1

PLUG

- rubber

4шт.

9

1502281C1

INSULATOR

- 'B' post

2шт.

10

3234959R1

INSULATOR

- rear cover

1шт.

11

245894C2

MAT

- seat deck, Includes: Ref. 12

1шт.

12

245712C1

MAT

- seat deck front

1шт.

13

3401113R1

GROMMET

- differential

1шт.

14

3234965R1

MAT

- front floor

1шт.

15

245888C1

LINING

SHEET - insulation

1шт.

16

3402100R1

INSULATOR

- bulkhead, steering support

1шт.

1536053C1 Insulator - 1536048C3 Heel Board Insulator - 1536049C2 Foot Well Center Insl. - 1536050C2 Foot Well L.H. Insl - 1536051C2 Foot Well R.H. Insl

1шт.

17

3221725R1

CAP

- hex, M6

6шт.

18

934719R1

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, M6 x 25 mm, class 8.8

6шт.

19

934850R1

WASHER

- flat, 6 mm

12шт.

20

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

- hex, 6 mm, class 8

6шт.

21

1280319C1

LINING

INSULATOR - front of seat deck

1шт.

22

3405010R1

MAT

- insulation lining, front floor

1шт.

23

3399893R1

INSULATOR

STRIP - insulator, left

1шт.

23

3399894R1

INSULATOR

STRIP - insulator, right

1шт.

24

3401114R1

SEAL

- front, steering support

1шт.

25

1500876C1

SEALANT

ADHESIVE - clear

1шт.
