Запчасти Case IH 885 (9-482) - LOUDSPEAKER AND ANTENNA (09) - CHASSIS/ATTACHMENTS

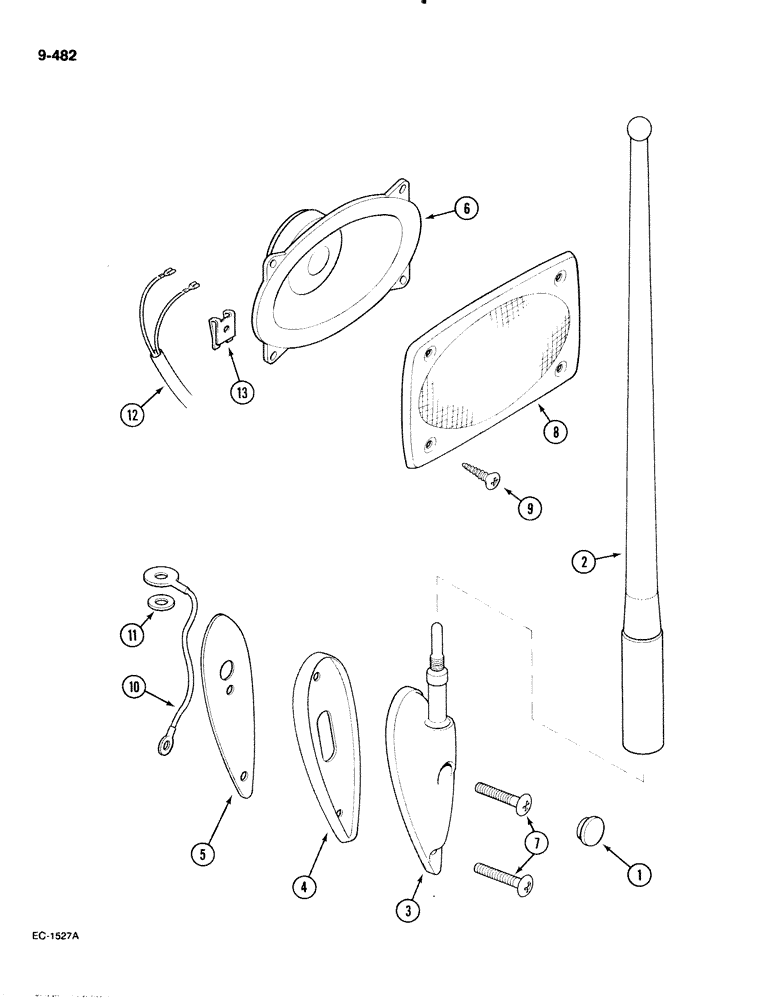

Схема запчастей Case IH 885 - (9-482) - LOUDSPEAKER AND ANTENNA (09) - CHASSIS/ATTACHMENTS
5
9
4
13
10
7
8
2
11
1
12
6
3

Артикул

Название

Примечание

Количество

1328313C92

KIT

- loudspeaker and antenna, Includes: loud speaker and antenna field kit, complete antenna and Ref. 1 thru 13

1шт.

1328312C92

KIT

- field, loudspeaker and antenna, Includes: complete antenna and Ref. 1 thru 7

1шт.

1328311C91

ANTENNA

- complete, Includes: Ref. 1 thru 5

1шт.

1

1328286C1

CAP

1шт.

2

1328284C1

ANTENNA

- rubber, does not come with cab

1шт.

3

1328283C1

SUPPORT

SOCKET - antenna

1шт.

4

1328287C1

SEAL

- antenna

1шт.

5

1328288C1

SUPPORT

1шт.

6

1328282C1

SPEAKER

LOUDSPEAKER

2шт.

6

1332318C1

SPEAKER

LOUDSPEAKER - Audiovox, Serial Range: (Optional-1328282C1)

2шт.

6

1332319C1

SPEAKER

LOUDSPEAKER - Blaupunkt, Serial Range: (Optional-1328282C1)

2шт.

7

905733R1

SELF-TAP SCREW,Oval Hd, M4.2 x 32

SCREW - tapping, oval cross recess, 4.2 x 32 mm

2шт.

8

1332317C1

GRILLE

- speaker, Audiovox (Set of 2 parts)

1шт.

8

1328281C2

GRILLE

- speaker, Phillips (Set of 2 parts), Serial Range: (Optional-1332317C1)

1шт.

9

905732R1

SELF-TAP SCREW,Oval Hd, M4.2 x 25

SCREW - tapping, oval head, 4.2 x 25 mm

8шт.

10

1328285C1

CABLE

- antenna ground

1шт.

11

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

WASHER - serrated lock, 8 mm

1шт.

12

1328289C1

HARNESS

CABLE - loudspeaker

1шт.

13

3234214R1

SPRING NUT

- spring, push-on

8шт.

1332277C1

HARNESS

- radio and speaker (Not illustrated)

1шт.

1964760C1

PACKAGE

RADIO KIT, SB 36-88

1шт.

245344C91

RADIO

AM, Audio Vox

1шт.

245160C91

RADIO

AM/FM with clock, Audio Vox

1шт.

84067C91

RADIO

AM/FM with clock and cassette, Audio Vox

1шт.

Выбрано товаров: 24
