Запчасти Case IH 885 (9-480) - ROOF HATCH SEAL SERVICE KIT (09) - CHASSIS/ATTACHMENTS

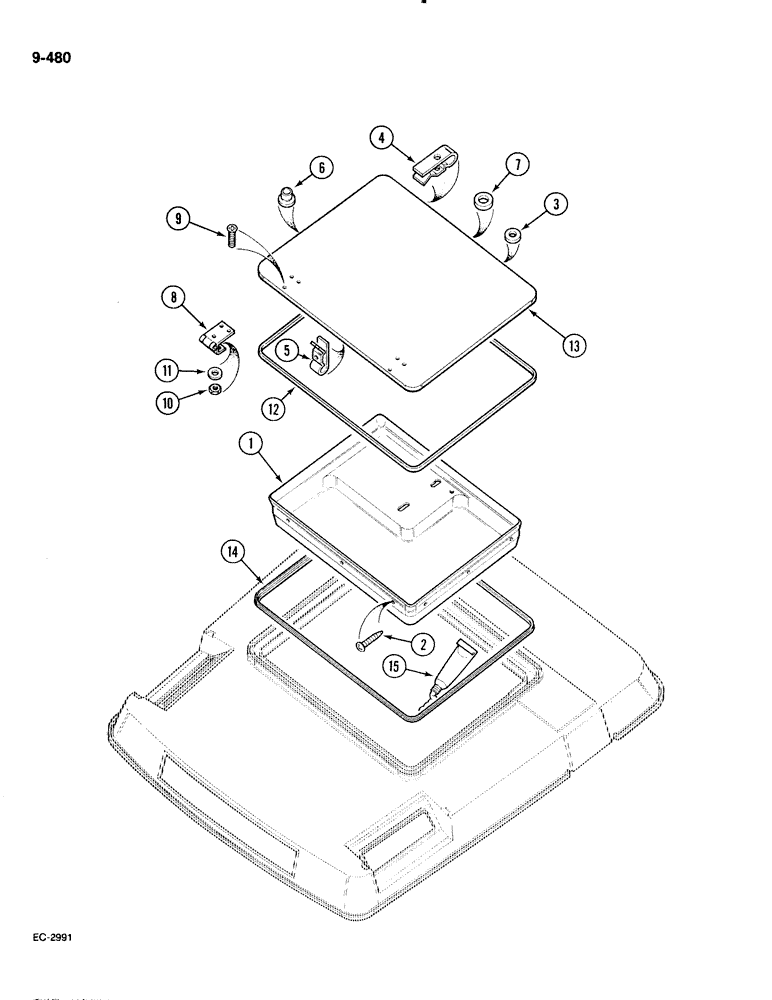

Схема запчастей Case IH 885 - (9-480) - ROOF HATCH SEAL SERVICE KIT (09) - CHASSIS/ATTACHMENTS
4
5
14
9
6
15
12
11
1
8
13
3
10
7
2

Артикул

Название

Примечание

Количество

1332687C1

STRIPPER PACKAGE

KIT - roof hatch seal (Grey trim), Includes: complete roof hatch, Ref. 1 thru 15 and fitting instructions

1шт.

82503C93

PACKAGE

KIT - roof hatch seal (Beige trim), Includes: complete roof hatch, Ref. 1 thru 15 and fitting instructions

1шт.

1332688C1

HATCH, ASSY.

HATCH - roof, complete (Grey trim), Includes: Ref. 1 thru 13

1шт.

3093230R92

HATCH, ASSY.

HATCH - roof, complete (Beige trim), Includes: Ref. 1 thru 13

1шт.

1

1332682C1

HATCH LINING

LINING - hatch (Grey trim)

1шт.

1

82462C2

PADDING

LINING - hatch (Beige trim)

1шт.

2

3233230R1

SELF-TAP SCREW,Oval Hd, M4.2 x 22

SCREW - tapping, oval cross recess, 4.2 x 22 mm

19шт.

3

3234234R1

WASHER

3шт.

4

3234042R1

SPRING NUT

- spring, push-on, 4.2 mm

5шт.

5

3234214R1

SPRING NUT

- spring, push-on

14шт.

6

3404266R1

BUSHING

- screw

3шт.

7

3126382R1

BUSHING

BLOCK - boss

2шт.

8

1328160C1

HINGE

- roof hatch

2шт.

9

3402573R1

SCREW,Hex Flat Hd, M6 x 12, 4.8

- countersunk, cross recess, M6 x 16 mm

2шт.

10

832-10406

NUT,M6 x 1, Cl 8

LOCK, M6 x 1, Cl 8

2шт.

11

934948R1

WASHER,M6

- flat, 6.4 x 12.5 x 1.6 mm

2шт.

12

82464C1

SEAL

- roof hatch

1шт.

13

82456C2

HATCH

- cab roof

1шт.

14

1328329C2

SEAL

- roof hatch

1шт.

15

89675C1

ADHESIVE

- black silicon, 310 ml

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS - fitting

1шт.

Выбрано товаров: 21
