Запчасти Case IH 885 (9-478) - CAB ROOF FRAME (CONTD) (09) - CHASSIS/ATTACHMENTS

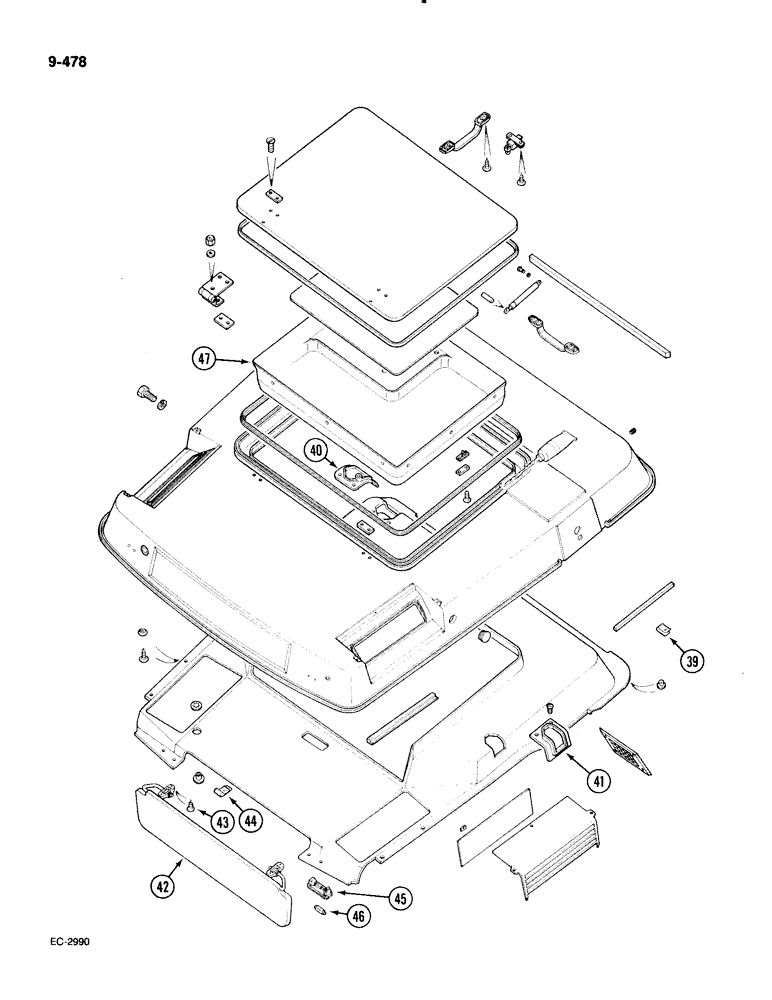

Схема запчастей Case IH 885 - (9-478) - CAB ROOF FRAME (CONTD) (09) - CHASSIS/ATTACHMENTS
46
45
47
42
40
44
41
39
43

Артикул

Название

Примечание

Количество

1330708C93

CAB

- complete with air conditioning and trim, Includes: Ref. 39 thru 47 in this figure and parts in Figure 9-476

1шт.

39

3234042R1

SPRING NUT

- spring, push-on, 4.2 mm

1шт.

39

3234191R1

SPRING NUT

- spring, push-on

1шт.

39

3234214R1

SPRING NUT

- spring, push-on

1шт.

40

3234111R2

COVER

- blanking

2шт.

41

1330715C2

COVER

- blanking

2шт.

42

3234218R2

VISOR, SUN

VISOR - sun

1шт.

43

3233230R1

SELF-TAP SCREW,Oval Hd, M4.2 x 22

SCREW - tapping, oval cross recess, 4.2 x 22 mm

4шт.

44

3234214R1

SPRING NUT

- spring, push-on

4шт.

45

3405561R1

INTERIOR LIGHT

LIGHT - courtesy, Includes: Ref. 46

1шт.

46

710196R1

BULB,C5W, 12V, 5W

Festoon C11, 12Vm 5W

1шт.

47

1332682C1

HATCH LINING

LINING - hatch, See Figure 9-480

1шт.

Выбрано товаров: 12
