Запчасти Case IH 885 (9-474) - CAB REAR WINDOWS (09) - CHASSIS/ATTACHMENTS

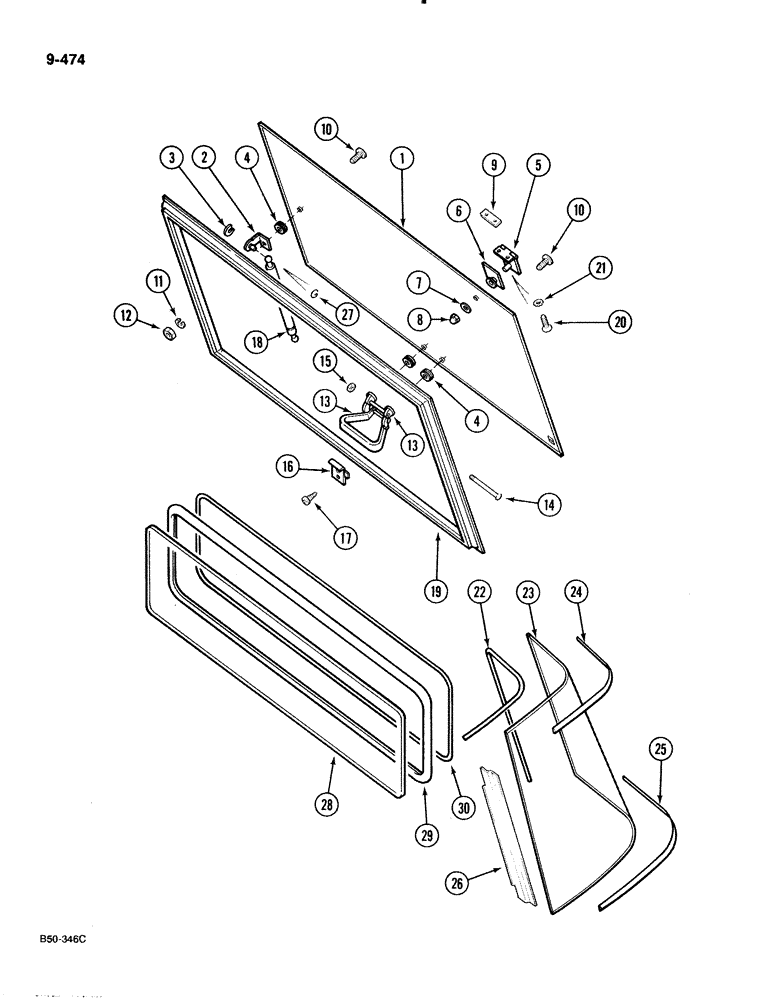

Схема запчастей Case IH 885 - (9-474) - CAB REAR WINDOWS (09) - CHASSIS/ATTACHMENTS
12
5
21
8
4
17
25
19
24
26
7
1
18
27
20
13
30
10
15
22
14
9
29
10
13
16
3
2
6
28
4
11
23

Артикул

Название

Примечание

Количество

1330708C93

CAB

- complete with air conditioning and trim, Includes: rear upper window assembly and Ref. 1 thru 27

1шт.

3234162R92

GLASS

WINDOW - assembly, rear upper, Includes: Ref. 1 thru 15

1шт.

1

3233046R3

GLASS

upper window, rear

1шт.

For North America order 182027A1 rear glass. For Europe order 3233046R3

1шт.

2

3233683R1

HOLDER

BRACKET - gas strut

1шт.

3

3233695R1

PROTECTOR

- operator

1шт.

4

3234066R1

GROMMET

- rear upper window

3шт.

5

3234067R2

HINGE

- rear upper window

2шт.

6

3234167R1

GROMMET

- rear upper window hinge

2шт.

7

3233292R1

WASHER,M8.4 x 25 x 2

- flat, 8 mm

2шт.

8

3221592R1

CAP

NUT - crown

2шт.

9

3233679R1

PLATE

- support

2шт.

10

30301R1

SCREW,Cross Pan Hd, M8 x 20

- pan, cross recess, M8 x 20 mm

3шт.

11

3233415R1

LOCK WASHER,M8

WASHER - lock, 8 mm

1шт.

12

3233416R1

THIN NUT,Thin, M8 x 1.25, Cl 04

- hex lock, 8 mm

1шт.

13

3234168R1

HANDLE

- window opening, Includes: Ref. 14 and 15

1шт.

Framing piece 3233933R1 bracket/A, ball stud welded to the cab frame. Used with Ref. 18, P/N 3234163R1

1шт.

14

3233662R2

SCREW

PIN

1шт.

15

934306R1

LOCK NUT,M5 x .8, Thin

NUT, LOCK, M5 x .8, Thin

1шт.

16

3233691R1

COVER

PLATE - locking

1шт.

17

3233380R1

SELF-TAP SCREW,Pan Hd, M3.5 x 9.5

SCREW - tapping, round cross recess, 3.5 x 9.5 mm

2шт.

18

3234163R1

GAS STRUT,549mm Extended, 329mm Compressed

STRUT - gas filled

1шт.

19

3234119R2

SEAL,840mm L

- rear upper window

1шт.

20

3233287R1

SCREW,Hex Flat Hd, M6 x 16, 4.8

- countersunk, flat cross recess, M6 x 16 mm

4шт.

21

3233414R1

WASHER,Csk, M6

WASHER - lock, toothed, 6 mm

4шт.

22

3234070R1

SEAL

- rear windows, 1040 mm

2шт.

23

3233040R1

CAB GLASS

GLASS - rear left window

1шт.

23

3233041R1

CAB GLASS

GLASS - rear right window

1шт.

24

3234050R2

SEAL, GLASS

SEAL - rear side window

1шт.

25

3234051R2

SEAL, GLASS

SEAL - bottom, rear side window

1шт.

26

3405554R1

SILL

- window

2шт.

27

3404206R1

BALL STUD

2шт.

28

98041C1

GLASS

WINDOW - lower rear

1шт.

29

1500759C1

SEAL

- lower rear window

1шт.

30

1500760C1

FILLING STRIP

STRIP - filler

1шт.

Выбрано товаров: 35
