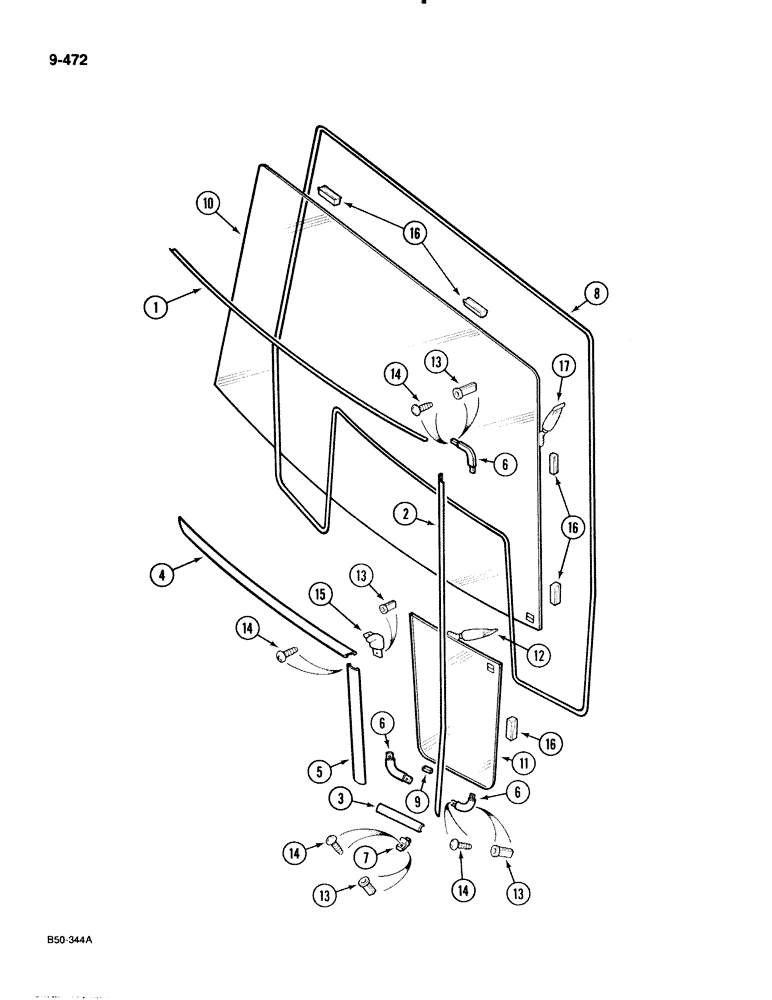

Запчасти Case IH 885 (9-472) - WINDSCREEN (09) - CHASSIS/ATTACHMENTS

1330708C93

CAB

- complete with air conditioning and trim, Includes: Ref. 1 - 17

1шт.

1

3234681R1

SEAL

SEAL - 961 mm

1шт.

2

3234682R1

SEAL

SEAL - 1331 mm

2шт.

3

3234683R1

SEAL

SEAL - 140 mm

2шт.

4

3234680R2

SEAL

SEAL - 620 mm, order 3234682R1 and, Serial Range: cut-lenght

1шт.

5

3234684R2

SEAL

SEAL - 477 mm

2шт.

6

3234079R91

BRACKET

- retaining

6шт.

7

3234080R91

BRACKET

- retaining

24шт.

8

3234072R1

SEAL

SEAL - 1170 mm

1шт.

9

3233689R2

PAD, RUBBER

PAD - rubber

4шт.

3234160R91

GLASS

- assembly, windscreen, Includes: Ref. 10 - 12

1шт.

10

3233045R1

GLASS

- windshield

1шт.

11

3233036R1

GLASS

- windshield, lower left

1шт.

11

3233037R1

GLASS

- windshield, lower right

1шт.

12

1500876C1

SEALANT

ADHESIVE - clear

1шт.

13

3404392R1

NUT

NUT

40шт.

14

3233418R1

SELF-TAP SCREW,Pan HD, M3.9 x 1.3 x 19mm

SCREW - tapping, countersunk cross recess, 3.9 x 19 mm

40шт.

15

3404391R1

BRACKET

- retaining

2шт.

16

1328497C1

SEAL ASSY.

SPACER - bonded glass, with 3399917R1, Replaces: 3234072R1

10шт.

17

3399917R1

GLUE

ADHESIVE - clear, 300 ml, with 1328497C1, Replaces: 3234072R1

1шт.
