Запчасти Case IH 885 (9-470) - CAB DOORS, WINDOWS AND TRIM (09) - CHASSIS/ATTACHMENTS

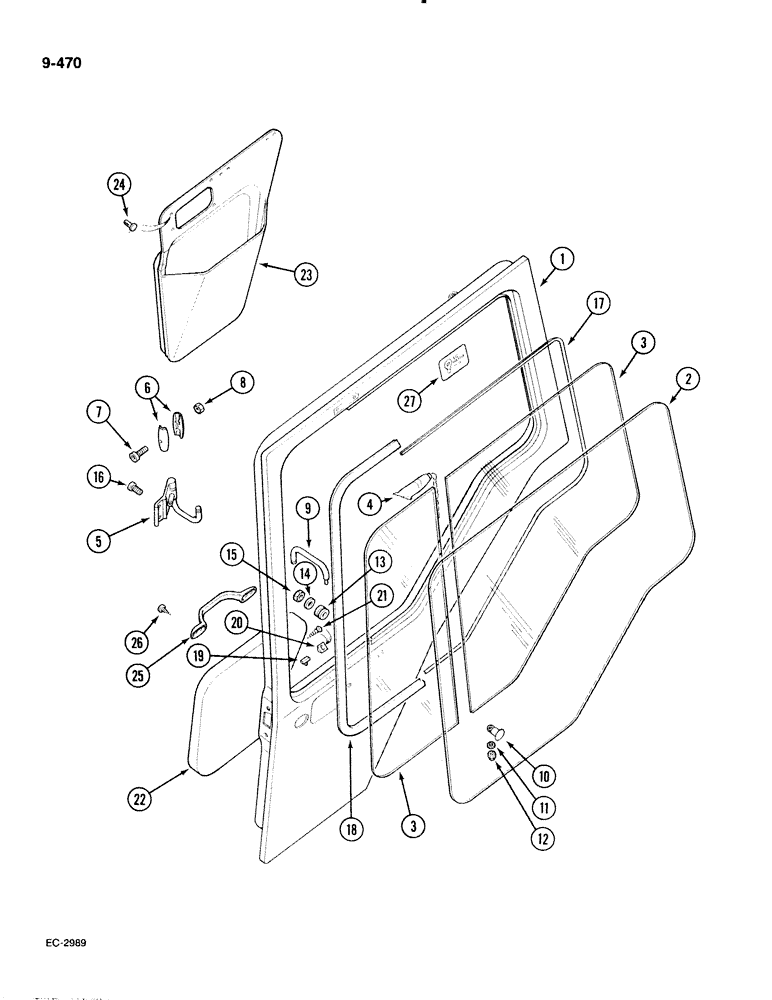

Схема запчастей Case IH 885 - (9-470) - CAB DOORS, WINDOWS AND TRIM (09) - CHASSIS/ATTACHMENTS
12
9
3
2
27
13
10
5
24
14
3
21
8
4
11
23
18
26
7
1
20
25
16
19
17
22
15
6

Артикул

Название

Примечание

Количество

1330708C93

CAB

- complete with air conditioning and trim, Includes: Ref. 1 thru 26

1шт.

1

1330714C91

DOOR ASSY.

DOOR - left, complete, door, See Figure 9-466

1шт.

Door assemblies do not include glass.

1шт.

1

1330729C91

DOOR ASSY.

DOOR - right, complete, See Figure 9-466

1шт.

Door assemblies do not include glass.

1шт.

2

1975195C1

GLASS

- door (Fixed non-venting type)

2шт.

3

3234126R1

GLASS

- door (Split venting type)

2шт.

4

1500876C1

SEALANT

ADHESIVE - clear

1шт.

3234145R91

HANDLE

STAY - window, left hand, Includes: Ref. 5 thru 15

1шт.

3234146R91

HANDLE

STAY - window, right hand, Includes: Ref. 5 thru 15

1шт.

5

NSS

NOT SOLD SEPARAT

HINGE - window stay

1шт.

6

3233687R1

SHELL

HANDLE - window stay

2шт.

7

3233325R1

HEX SOC SCREW,M6 x 20mm, Cl 8.8

- cap, hex socket, M6 x 20 mm

1шт.

8

3233324R1

NUT,M6 x 1, Cl 8

NUT - hex lock, M6

1шт.

9

NSS

NOT SOLD SEPARAT

ROD - window stay

1шт.

10

3233678R1

SCREW

BOLT - special, window stay

1шт.

11

3232883R1

WASHER

WASHER - plain, 8 mm

1шт.

12

3233290R1

NUT

- hex crown, M8

1шт.

13

3233670R1

GROMMET

- window

1шт.

14

3233328R1

WASHER,M17

- flat, 17 mm

1шт.

15

3233326R1

THIN NUT,Thin, M16 x 1.5, Cl 04

- hex, M6

1шт.

16

3233287R1

SCREW,Hex Flat Hd, M6 x 16, 4.8

- countersunk, flat cross recess, M6 x 16 mm

4шт.

17

1281938C1

SEAL

STRIP - sealing

2шт.

18

3234056R1

DOOR SEAL

STRIP - sealing, 1345 mm

2шт.

19

3233689R2

PAD, RUBBER

PAD - rubber

4шт.

20

3233675R1

SUPPORT

RETAINER - window

8шт.

21

3233380R1

SELF-TAP SCREW,Pan Hd, M3.5 x 9.5

SCREW - tapping, round cross recess, 3.5 x 9.5 mm

8шт.

22

3234123R1

DOOR COVER

COVER - left door

1шт.

23

3234127R2

POCKET

- right door

1шт.

24

3404078R1

PLUG

- pin, 6 OD x 13.5 mm

4шт.

25

3234209R1

HANDLE

- door

2шт.

26

3233231R1

SELF-TAP SCREW,Pan Hd, M4.2 x 22

SCREW - tapping, round cross recess, 4.2 x 22 mm

8шт.

27

1135282R1

DECAL

- eye bolt

2шт.

Выбрано товаров: 33
