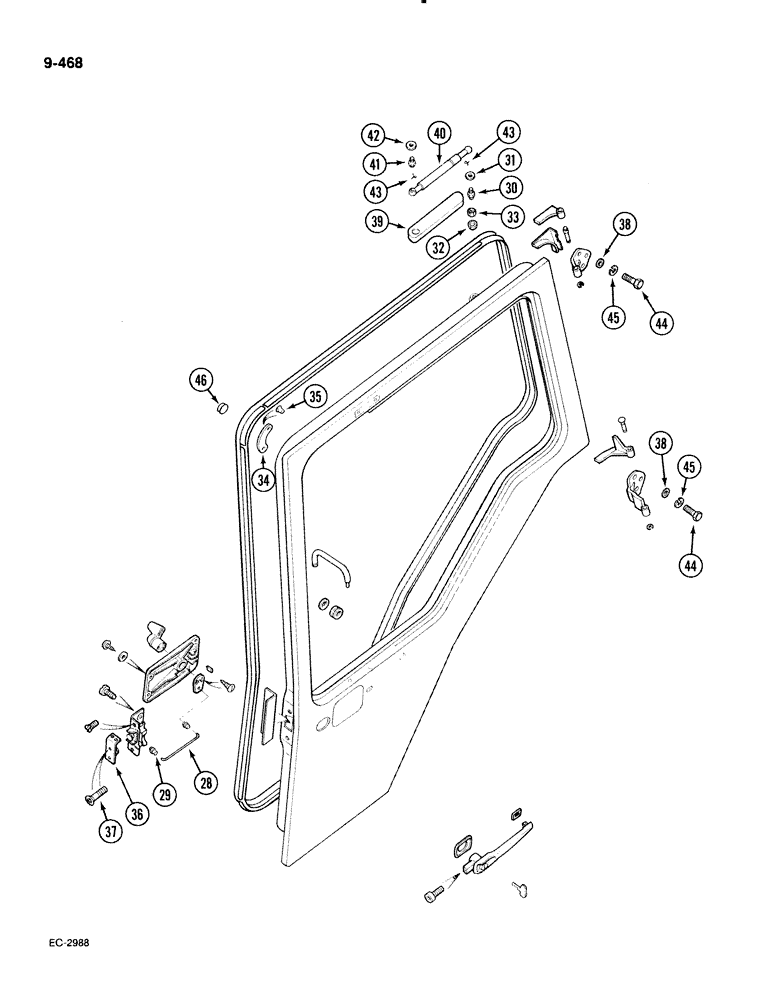

Запчасти Case IH 885 (9-468) - CAB DOOR (CONTD) (09) - CHASSIS/ATTACHMENTS

1330708C93

CAB

complete with air conditioning and trim, Includes: Ref. 28 thru 46 in this figure and parts in Figure 9-466

1шт.

1330714C91

DOOR ASSY.

DOOR - left, complete, Includes: Ref. 28 thru 35 in this figure and parts in Figure 9-466

1шт.

1330729C91

DOOR ASSY.

DOOR - right, complete, Includes: Ref. 28 thru 35 in this figure and parts in Figure 9-466

1шт.

28

3234130R1

ROD

- operating

1шт.

29

3234129R1

CLIP

1шт.

30

3234063R1

BALL STUD,M10 x 1.5

STUD - ball, 13 mm diameter

1шт.

31

933965R1

LOCK WASHER,M10

1шт.

32

3221520R1

CAP

PLUG - cap, 10 mm

1шт.

33

100016

NUT,M10 x 1.5, Cl 8

1шт.

34

3405838R1

LARGE PLATE

PLATE - cover

1шт.

35

3404078R1

PLUG

- pin, 6 OD x 13.5 mm

2шт.

36

3234105R1

CATCH

- left door

1шт.

36

3234106R1

CATCH

- right door

1шт.

37

931860R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 8.8

- countersunk, hex socket, M8 x 20 mm

4шт.

38

934673R1

WASHER,M8.4 x 25 x 2

- plain, 8 mm

12шт.

39

3399427R1

PROTECTOR

- left door

1шт.

39

3399428R1

PROTECTOR

- right door

1шт.

40

3232937R1

CYLINDER, GAS

STRUT - gas filled

2шт.

41

3234063R1

BALL STUD,M10 x 1.5

STUD - ball, 13 mm diameter

2шт.

42

933965R1

LOCK WASHER,M10

2шт.

43

3233348R1

CLIP

- retaining

4шт.

44

931202R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, M8 x 25 mm, class 10.9

12шт.

45

934309R1

LOCK WASHER,M8

WASHER - lock, M8

12шт.

46

3150667R1

PLUG

2шт.
