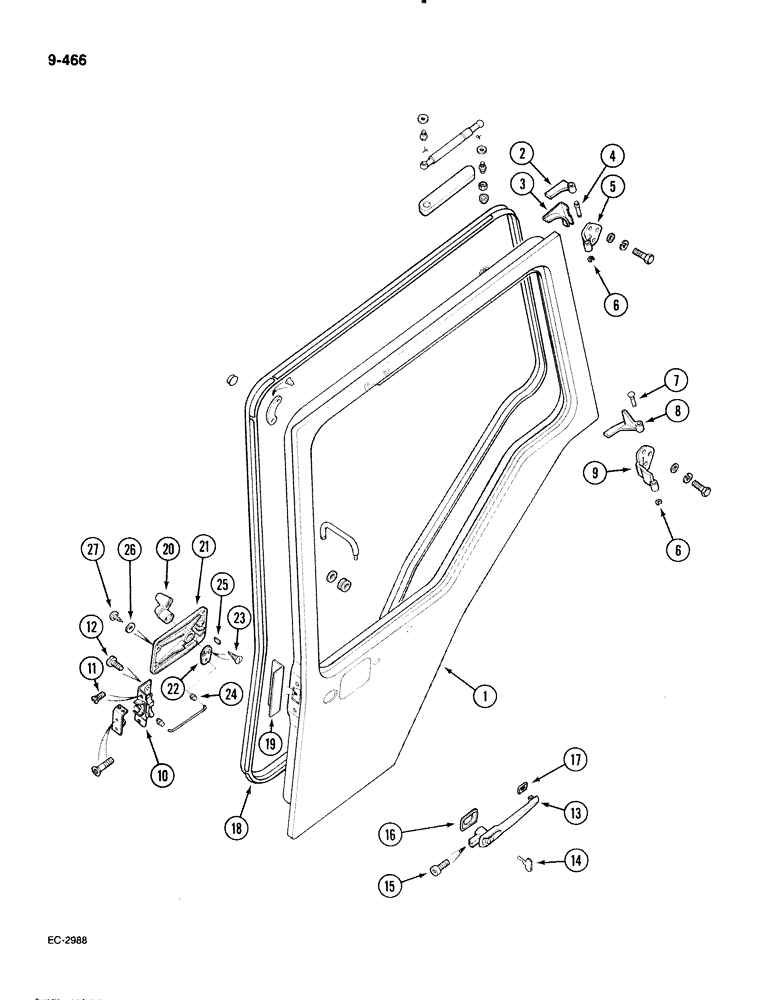

Запчасти Case IH 885 (9-466) - CAB DOOR (09) - CHASSIS/ATTACHMENTS

1330708C93

CAB

complete with air conditioning and trim, Includes: complete left door, complete right door and Ref. 1 thru 27 in this figure and parts in Figure 9-468

1шт.

1330714C91

DOOR ASSY.

DOOR - left, complete, Includes: Ref. 1 thru 27 in this figure and parts in Figure 9-468

1шт.

Door assemblies do not include glass.

1шт.

1330729C91

DOOR ASSY.

DOOR - right, complete, Includes: Ref. 1 thru 27 in this figure and parts in Figure 9-468

1шт.

Door assemblies do not include glass.

1шт.

1

3234023R91

DOOR SEAL

DOOR - left, Includes: Ref. 2 thru 9

1шт.

1

3234024R91

DOOR ASSY.

DOOR - right, Includes: Ref. 2 thru 9

1шт.

2

3234116R1

HINGE

- leaf, upper, left door

1шт.

2

3234117R1

HINGE

- leaf, upper, right door

1шт.

3

3399440R1

SUPPORT

- upper, left door

1шт.

3

3399441R1

SUPPORT

- upper, right door

1шт.

4

3234076R1

PIN,8mm OD x 47mm L

- upper hinge

1шт.

5

3234093R1

HINGE

- leaf, upper, left door

1шт.

5

3234094R1

HINGE

- leaf, upper, right door

1шт.

6

933376R1

CIRCLIP,M8

RING - retaining, external

2шт.

7

3234078R1

PIN

- lower hinge

1шт.

8

3234112R1

HINGE

- lower, left door

1шт.

8

3234113R1

HINGE

- lower, right door

1шт.

9

3234074R1

HINGE

- leaf, lower, left door

1шт.

9

3234075R1

HINGE

- leaf, lower, right door

1шт.

10

3234131R1

LOCK

- left

1шт.

10

3234132R1

LOCK

- right

1шт.

11

905152R1

SCREW,M6 x 4.80mm

- countersunk, flat slotted, M6 x 12 mm

2шт.

12

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

- machine, pan head, M6 x 12 mm, class 8.8

1шт.

13

3232990R1

HANDLE

- outer, right door

1шт.

13

3405050R91

HANDLE

- outer, left door, Includes: Ref. 14

1шт.

14

3405054R1

KEY

- lock, left door

1шт.

15

931584R1

HEX SOC SCREW,M6 x 12mm, Cl 8.8

SCREW - cap, hex socket, M6 x 12 mm, class 8.8

1шт.

16

3233611R1

DUST CAP

PLATE - plastic, outer handle

1шт.

17

3233622R1

PLASTIC PLATE

PLATE - plastic, outer handle

1шт.

18

1332310C1

DOOR SEAL,4345mm L

SEAL - door, Replaces: left door seal 3234150R1 and right door seal 3234151R1

1шт.

19

1332278C1

ANGLE

- iron (Used with seal 1332310C1)

1шт.

19

98036C91

LEVER

HANDLE - inner, left door, Includes: Ref. 20 thru 25

1шт.

19

98037C91

LEVER

HANDLE - inner, right door, Includes: Ref. 20 thru 25

1шт.

20

3234326R1

HANDLE

- inner

1шт.

21

3234133R2

BASE

PLATE - handle base

1шт.

22

3234128R1

LEVER

ARM - actuating

1шт.

23

20775R1

SELF-TAP SCREW,Slotted Pan Hd, M4.2 x 13

SCREW - tapping, slotted pan, 4.2 x 13 mm

1шт.

24

3234129R1

CLIP

1шт.

25

3401144R1

STOP

1шт.

26

934948R1

WASHER,M6

- flat, 6.4 x 12.5 x 1.6 mm

4шт.

27

30773R1

SELF-TAP SCREW,Pan Hd, M4.8 x 16

SCREW - pan head, cross recess, 4.8 x 16 mm

4шт.
