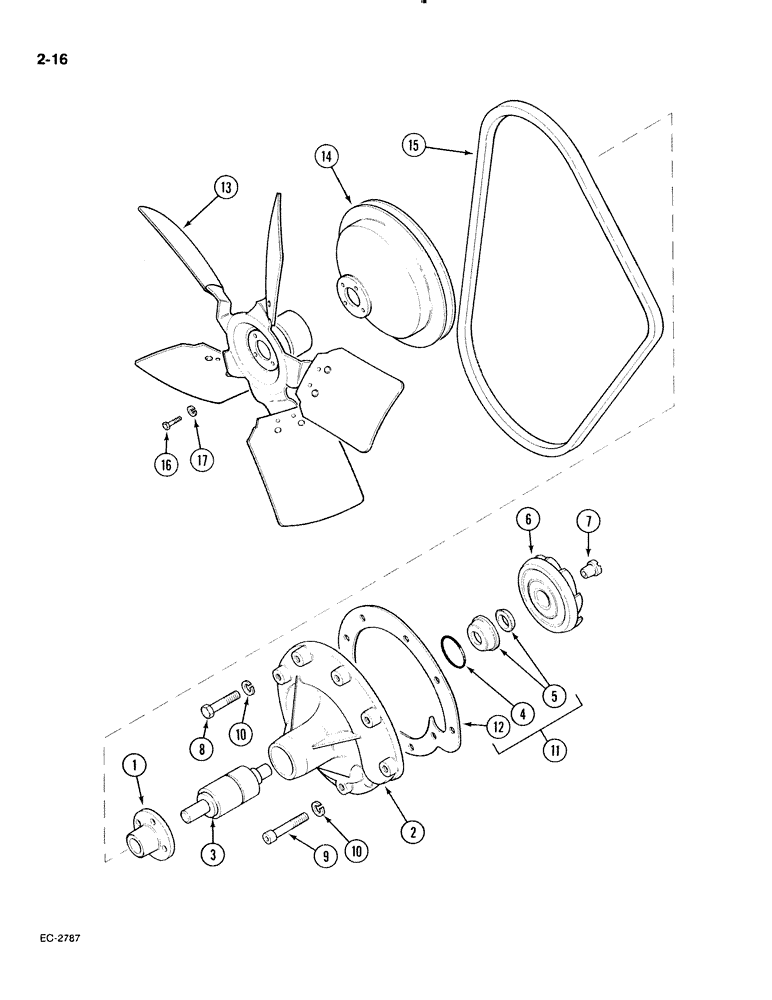

Запчасти Case IH 885 (2-016) - WATER PUMP AND FAN (02) - ENGINE

3132739R93

PUMP, WATER

PUMP - water, Includes: Ref. 1 - 7

1шт.

735099C91

REMAN-WATER PUMP

Reman for New PN 3132739R93

1шт.

1928119C1

CORE-WATER PUMP

Return Number

1шт.

1

3132146R1

HUB

- pulley

1шт.

1

3132148R1

HUB

- pulley, Serial Range: optional-3132146R1

1шт.

2

3132677R41

BODY

- pump, complete with bearing, Includes: Ref. 3

1шт.

3

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

- pump

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - water pump

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINER - complete with sealing ring

1шт.

6

787579R2

IMPELLER

- pump

1шт.

7

3055308R1

PLUG

- closing

1шт.

8

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

7шт.

9

28301R1

HEX SOC SCREW,5/16" - 18 x 1 3/8"

- cap, hex socket, 5/16 NC x 1-3/8 inch

1шт.

10

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

8шт.

11

3055285R93

GASKET KIT

KIT - reconditioning, water pump, Includes: Ref. 4, 5, and 12

1шт.

12

3055177R1

GASKET

- water pump

1шт.

13

84733C1

FAN

- engine cooling, 5 blade, without air conditioning

1шт.

13

84416C1

FAN

- engine cooling, 6 blade, with air conditioning

1шт.

14

401124R2

PULLEY

- water pump, without air conditioning

1шт.

14

84624C1

PULLEY

- water pump, with air conditioning, See Figure 2-010

1шт.

15

1537104C1

V-BELT,12.70 mm W x 1600.00 mm L

Fan, Replaces 3129140R1 12.70 mm W x 1600.00 mm L

1шт.

15

3129140R1

V-BELT,13.70 mm W

Fan Belt 12.70mmWx1544.0 mm L

1шт.

16

181312

BOLT,Hex, 1/4" - 28 x 11/16", Gr 5

- hex, 1/4 NF x 11/16 inch, grade 5, without air conditioning

4шт.

16

433061

BOLT,Hex, 1/4" - 28 x 3 1/4", Gr 5

- hex, 1/4 NF x 3-1/4 inch, grade 5, with air conditioning

4шт.

17

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
