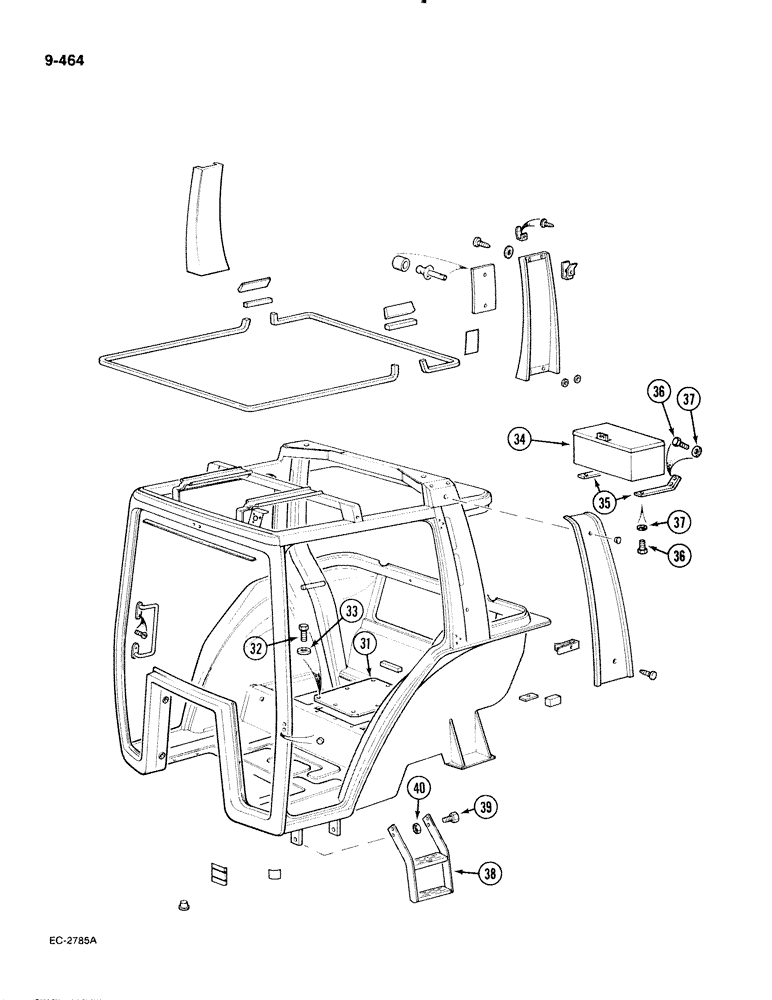

Запчасти Case IH 885 (9-464) - CAB FRAME (CONTD) (09) - CHASSIS/ATTACHMENTS

31

1500792C1

PLATE

service aperture

1шт.

31

1536044C1

PANEL ASSY.

PLATE ASSEMBLY

1шт.

1536045C1

INSULATOR

INSULATION seat deck

1шт.

32

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

33

934675R1

WASHER,M8 x 16 x 1.6

Flat M8 x 16 x 1.6

4шт.

34

K206516

BOX, TOOL

BOX - tool

1шт.

35

88015C1

SUPPORT

BRACKET - toolbox mounting

2шт.

36

931416R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, 6 mm x 20 mm, class 8.8

6шт.

37

933346R1

WASHER,M6 x 12 x 1.6

- flat, 6.4 x 12.5 x 1.6 mm

6шт.

38

82973C1

STEP

- right

1шт.

38

82972C1

STEP

- left

1шт.

39

3404199R1

BOLT

BOLT - hex, 10 mm x 27 mm, class 8.8

8шт.

40

100016

NUT,M10 x 1.5, Cl 8

8шт.
