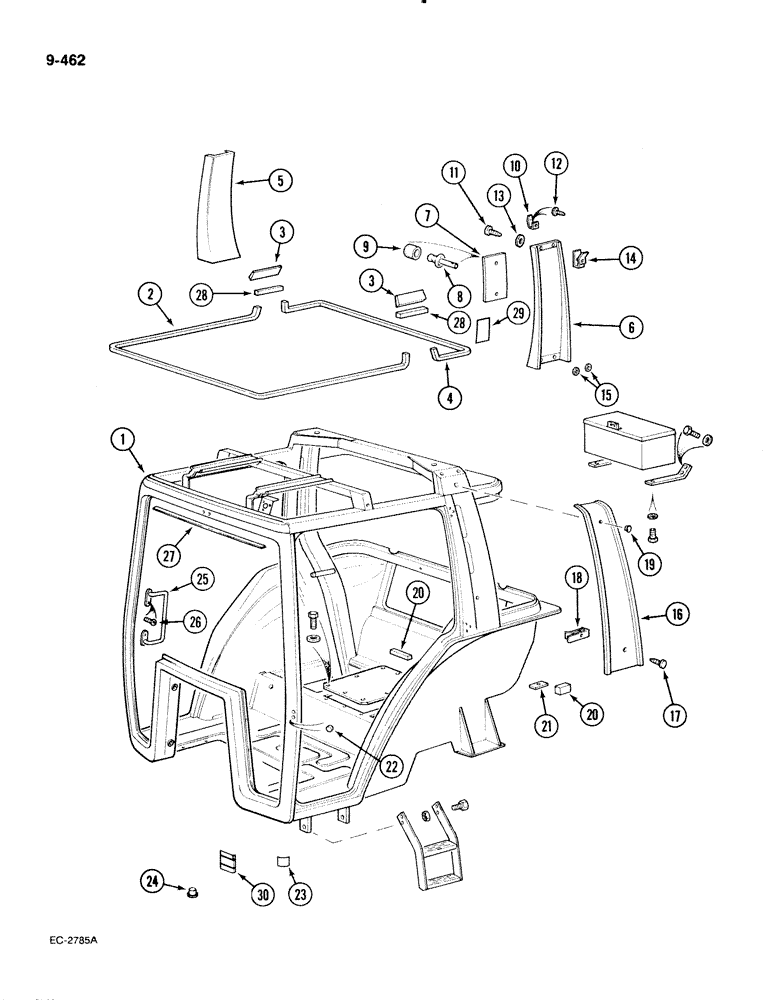

Запчасти Case IH 885 (9-462) - CAB FRAME (09) - CHASSIS/ATTACHMENTS

1330708C93

CAB

- complete with air conditioning and trim, Includes: Ref. 1 - 29

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - cab

1шт.

2

1280449C1

SEALING STRIP

- foam, 2990 mm

1шт.

3

1280457C1

SEAL

- wedge, foam, 170 mm

2шт.

4

1280450C1

SEALING STRIP

- foam, 1730 mm

1шт.

5

1332217C1

LINING

COVER - insulator, right, beige trim

1шт.

5

1332677C1

INSULATOR

COVER - insulator, right, grey trim

1шт.

6

1330784C3

INSULATOR

COVER - insulator, left, biege trim, Includes: Ref. 7 - 9

1шт.

P/N 934997C12 - subs to 1332276C2

1шт.

6

1332679C1

INSULATOR

COVER - insulator, left, grey trim, Includes: Ref. 7 - 9

1шт.

P/N 934997C12 - subs to 1332276C2

1шт.

7

1330748C2

LARGE PLATE

PLATE - warning decal

1шт.

8

1332221C1

RIVET

- split, blind

2шт.

9

1332222C1

DOOR COVER

CAP - rivet

2шт.

10

3234176R1

COAT HOOK

HOOK - coat

2шт.

11

3233230R1

SELF-TAP SCREW,Oval Hd, M4.2 x 22

SCREW - tapping, oval cross recess, 4.2 x 22 mm

6шт.

12

3233231R1

SELF-TAP SCREW,Pan Hd, M4.2 x 22

SCREW - tapping, round cross recess, 4.2 x 22 mm

2шт.

13

3234052R1

WASHER

- cup, 6 mm

6шт.

14

3234042R1

SPRING NUT

- spring, push-on, 4.2 mm

8шт.

15

3234234R1

WASHER

4шт.

16

3233551R3

SHROUD

- left

1шт.

16

3233552R3

SHROUD

- right

1шт.

17

905647R1

SELF-TAP SCREW,Flat Hd, M5.5 x 32

SCREW - tapping, countersunk cross recess, 5.5 x 32 mm

4шт.

18

3404795R1

NUT

NUT - spring, 5.6 mm

4шт.

19

3233690R2

PLUG

2шт.

20

1270690C1

SEALING STRIP

- filling

5шт.

21

1270706C1

SEALING STRIP

- filling

1шт.

22

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

- rubber, 21 mm

2шт.

23

1280244C2

SEAL

- front pillar

2шт.

24

3399850R1

PLUG

- 10.5 OD x 6 mm

1шт.

24

3399851R1

PLUG

- 13.5 OD x 8 mm

2шт.

24

84200C1

PLUG

- 17.1 OD x 8 mm

5шт.

24

84199C1

PLUG

- 18.8 OD x 10 mm

4шт.

24

3233767R1

PLUG

- 21.2 OD x 7.5 mm

11шт.

24

3404078R1

PLUG

- pin, 6 OD x 13.5 mm

8шт.

25

3234179R1

HANDLE

2шт.

26

3233287R1

SCREW,Hex Flat Hd, M6 x 16, 4.8

- countersunk, flat cross recess, M6 x 16 mm

8шт.

27

1280235C1

GASKET

- foam

1шт.

28

1259764C1

BACK-UP RING

STRIP - filling

2шт.

29

321-6771

DECAL

- caution instructions, English, See Figure 9-552

1шт.

30

99617C1

DECAL

- 'A' post stripe, left, See Figure 9-550

1шт.

30

99618C1

DECAL

- 'A' post stripe, right, See Figure 9-550

1шт.
