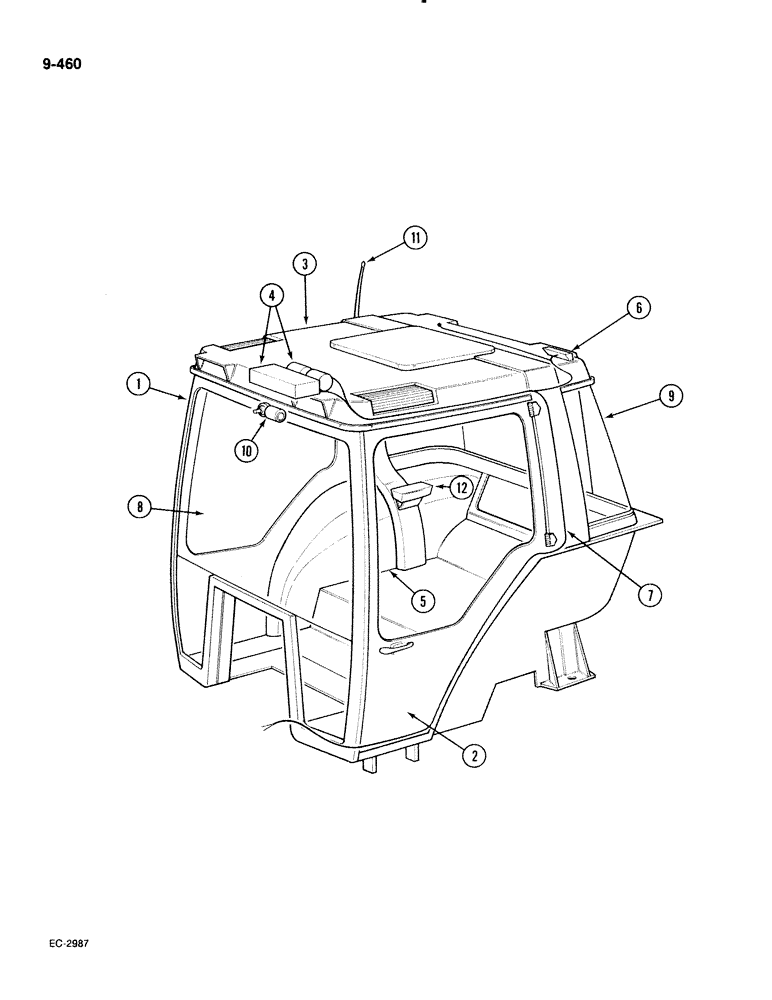

Запчасти Case IH 885 (9-460) - CAB (09) - CHASSIS/ATTACHMENTS

1535159C4

CAB

- complete with air conditioning and trim, Replaces: 1330708C93, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - cab, See Figure 9-462

1шт.

2

1330714C91

DOOR ASSY.

DOOR - left, complete, See Figures 9-466 and 9-470

1шт.

Door assemblies do not include glass.

1шт.

2

1330729C91

DOOR ASSY.

DOOR - right, complete, See Figures 9-466 and 9-470

1шт.

Door assemblies do not include glass.

1шт.

3

NSS

NOT SOLD SEPARAT

ROOF - cab, with cover, See Figure 9-476

1шт.

4

1280294C92

HEATER

BLOWER - H.V.A.C., See Figure 9-498

1шт.

NSS

NOT SOLD SEPARAT

PIPE - air conditioning, See Figure 9-492

1шт.

NSS

NOT SOLD SEPARAT

VENT - air conditioning, See Figure 9-494

1шт.

4

1280331C2

CONTROL PANEL

PANEL - air conditioning control, See Figure 9-496

1шт.

5

NSS

NOT SOLD SEPARAT

LINING - wheel housing, See Figure 9-484

1шт.

6

NSS

NOT SOLD SEPARAT

LIGHT- spot, rear left work light, See Figure 4-132

1шт.

7

1328852C2

HARNESS

- cab, See Figure 4-116

1шт.

7

245493C4

WIRE HARNESS

HARNESS - air conditioning, See Figure 4-116

1шт.

8

NSS

NOT SOLD SEPARAT

WINDSHIELD - front, See Figure 9-472

1шт.

9

NSS

NOT SOLD SEPARAT

WINDOW - rear, See Figure 9-474

1шт.

10

3401302R93

WIPER MOTOR

MOTOR - windshield wiper, front, See Figure 9-506

1шт.

11

1328311C91

ANTENNA

- complete, See Figure 9-482

1шт.

12

1330897C1

ARMREST

- right, See Figure 9-486

1шт.

3405561R1

INTERIOR LIGHT

LAMP interior

1шт.

710196R1

BULB,C5W, 12V, 5W

1шт.
