Запчасти Case IH 885 (9-458) - CAB MOUNTINGS (09) - CHASSIS/ATTACHMENTS

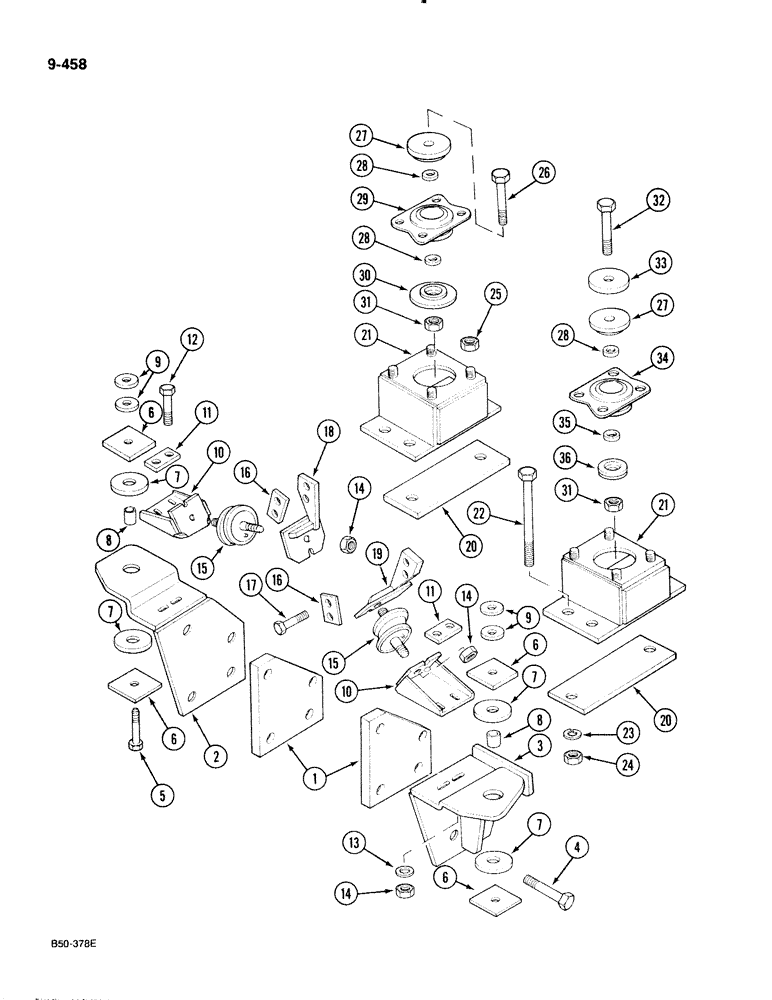

Схема запчастей Case IH 885 - (9-458) - CAB MOUNTINGS (09) - CHASSIS/ATTACHMENTS
8
34
6
32
28
17
14
6
10
7
18
25
11
20
33
23
3
15
22
21
27
9
36
4
21
6
16
5
30
27
35
15
7
1
14
6
11
31
9
10
7
14
12
2
16
13
7
28
8
24
31
19
28
26
20
29

Артикул

Название

Примечание

Количество

1

3129865R2

SPACER

- front mounting

2шт.

2

3129860R2

BRACKET

- front isomount, right

1шт.

3

3129859R3

SUPPORT

BRACKET - front isomount, left

1шт.

4

20094R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch

8шт.

5

30051R1

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

- hex, M12 x 75 mm, class 10.9

2шт.

6

3404705R1

PLATE,13mm ID x 65mm OD x 8mm Thk

- front mounting, Serial Range: -27395

4шт.

7

3404704R1

RUBBER WASHER

DAMPER - front isomount, Serial Range: -27395

4шт.

7

3399962R1

WASHER

DAMPER - front isomount, Start Serial: 27395

4шт.

8

3399956R3

SPACER

- front isomount

2шт.

9

3399953R3

WASHER

- spacer

1шт.

10

3399416R2

SUPPORT

- front isomount

2шт.

11

3399415R1

PLATE

- retaining

2шт.

12

930589R1

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex, M12 x 45 mm, class 8.8

4шт.

13

30328R1

WASHER,M13.5 x 24.5 x 3, HT

- hardened, 12 mm

4шт.

14

905210R1

NUT,M12 x 1.75, Cl 8

NUT - hex lock, M12, class 8

8шт.

15

3399959R1

RUBBER MOUNTING

DAMPER - isomount

2шт.

16

3399417R2

PLATE

- retaining

2шт.

17

30236R1

BOLT,M14 x 40mm, Cl 8.8

- hex, M14 x 40 mm, class 8.8

4шт.

18

3399404R2

BRACKET

- front right

1шт.

19

3399403R1

BRACKET

- front left

1шт.

20

1500903C3

PLATE

- front axle mounting

2шт.

21

91863C2

SUPPORT ASSY.

SUPPORT - rear isomount

2шт.

22

18551R1

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex, 5/8 NC x 8 inch, grade 5

4шт.

23

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

24

102639

NUT,5/8"-11, G5

4шт.

25

100016

NUT,M10 x 1.5, Cl 8

8шт.

26

20487R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, grade 8, Serial Range: 27395-18620

2шт.

27

3116801R1

CUP WASHER

WASHER - cone

2шт.

28

3048473R2

WASHER

- centralizing, Serial Range: 27395-18620

4шт.

28

3048473R2

WASHER

- centralizing, Serial Range: 18620-27395

2шт.

29

1502231C91

RUBBER MOUNTING

MOUNTING - rubber, rear, Serial Range: 27395-18620

2шт.

30

3116148R1

WASHER

- rebound, Serial Range: 27395-18620

2шт.

31

3100765R1

NUT

- hex, 5/8 inch NC, Philidas lock

2шт.

32

228000

BOLT,Hex, 5/8" - 11 x 4 3/4", Gr 8

, Serial Range: 18620-27395

2шт.

33

1332899C1

WASHER

- rear isomount, Serial Range: 18620-27395

2шт.

34

1332895C1

RUBBER MOUNTING

SUPPORT - rear isomount, Serial Range: 18620-27395

2шт.

35

1332894C1

SPACER

- rear isomount, Serial Range: 18620-27395

2шт.

36

1332893C1

DAMPER

SUPPORT - rear isomount, Serial Range: 18620-27395

2шт.

Выбрано товаров: 38
