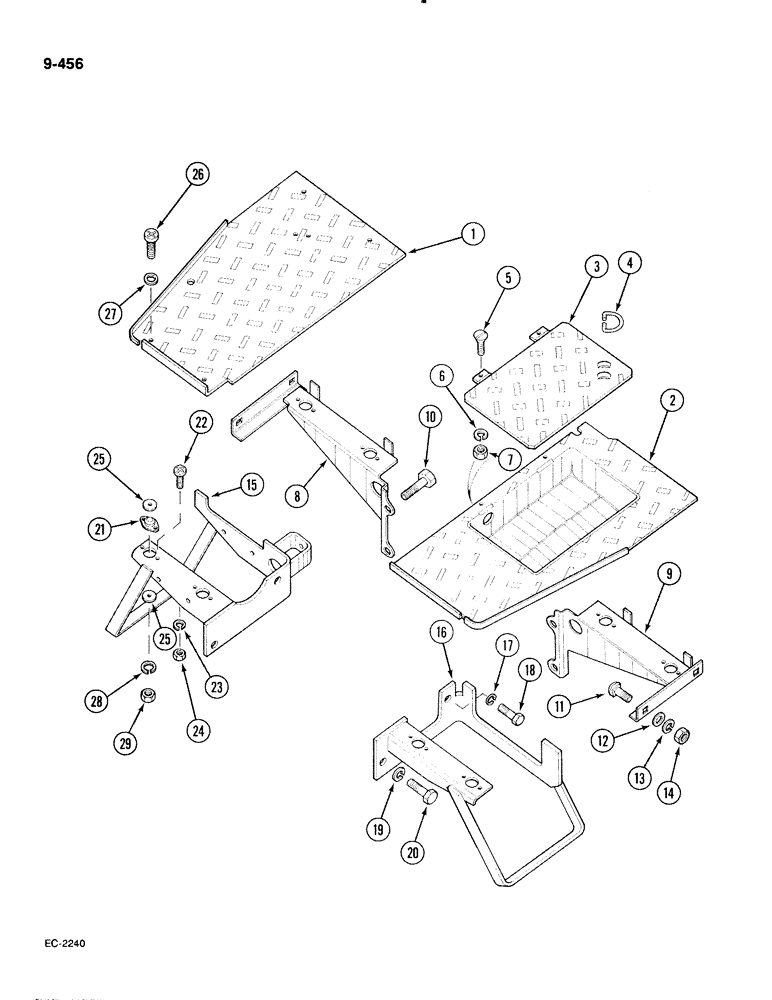

Запчасти Case IH 885 (9-456) - PLATFORMS AND SUPPORTS, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

3123690R1

PLATFORM

- right

1шт.

2

1536026C1

PLATFORM

- left (replaces 3123689R1)

1шт.

3

538421R1

COVER ASSY

COVER - tool box

1шт.

4

528917R1

RING

- finger pull

1шт.

5

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

- machine pan slotted, 1/4 NC x 5/8 inch

2шт.

6

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

8

3123703R1

SUPPORT

- right, platform rear

1шт.

8

1500041C2

SUPPORT

- right, platform rear, 4WD

1шт.

4WD prior to P.I.N. 18001

1шт.

9

3123702R1

SUPPORT

- left, platform rear

1шт.

10

364257R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8

4шт.

11

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT - carriage, 3/8 NC x 3/4 inch

4шт.

12

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

4шт.

13

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

14

102635

NUT,3/8"-16, G5

4шт.

15

1265128C1

SUPPORT

right, platform

1шт.

15

1537101C1

SUPPORT

new

1шт.

16

3123694R3

SUPPORT

- left, platform

1шт.

17

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

- hex, 3/8 NC x 7/8 inch, grade 5

2шт.

19

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

20

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

21

3123709R1

SHOCK ABSORBER

WASHER - snubbing (replaces 3123710R1)

8шт.

22

159287

SCREW,Cross Pan Hd, #6 - 32 x 3/8"

- pan, cross recess, No. 6 x 3/8 inch

16шт.

23

131044

LOCK WASHER

Lock, #6

16шт.

24

134530

NUT,Hex, #6 - 32

16шт.

25

3123710R1

WASHER

- snubbing

16шт.

26

159675

SCREW,Cross Pan Hd, #8 - 32 x 1"

- pan, cross recess, No. 8 x 1 inch

8шт.

27

131015

WASHER

- flat, 0.188 x 0.438 x 0.036 inch

8шт.

28

121841

LOCK WASHER,#8

WASHER, LOCK, #8

8шт.

29

120622

NUT,#8-32

8шт.
