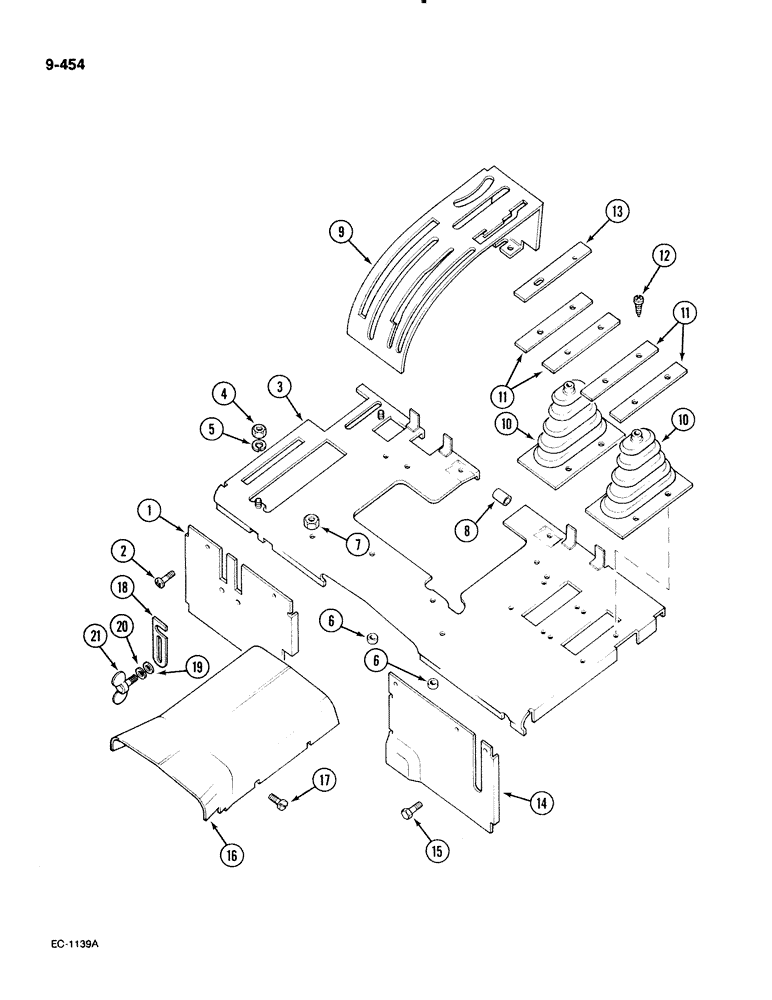

Запчасти Case IH 885 (9-454) - SEAT DECK AND PANELS, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

3125857R1

CHANNEL

- rear vertical, right, Serial Range: -18001

1шт.

1

94161C1

PROTECTION PLATE

CHANNEL - rear vertical, right, Start Serial: 18001

1шт.

2

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

- machine pan slotted, 1/4 NC x 5/8 inch

2шт.

3

3129233R1

COVER ASSY

PLATFORM - seat, Serial Range: -18001

1шт.

3

99656C2

PLATFORM ASSY.

PLATFORM - seat, Start Serial: 18001

1шт.

4

120368

NUT,5/16"-24, G5

5шт.

5

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

6

401941R1

SPACER

- mounting, short

2шт.

7

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

8

3125820R1

SLEEVE

- PVC

6шт.

9

529457R61

COVER ASSY

COVER - hitch control lever, 2WD, Serial Range: -18001

1шт.

9

3121558R2

COVER ASSY

COVER - hitch control lever, 4WD, Serial Range: -18001

1шт.

9

1331007C1

HOUSING

COVER - hitch control lever, Start Serial: 18001

1шт.

10

1502031C1

BOOT

- control lever

2шт.

11

1502032C1

STRIP

- boot retainer

4шт.

12

27046R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 7/8"

SCREW - tapping, pan cross recess, No. 8 x 7/8 inch

8шт.

13

1283389C1

STRIP

- retaining (With ROPS fit)

1шт.

14

528638R2

PROTECTION PLATE

CHANNEL - rear vertical, left

1шт.

15

180018

CONNECTING LINK

- hex, 1/4 NC x 5/8 inch, grade 5

3шт.

16

66290C1

COVER

- clutch housing

1шт.

17

445957

INDICATOR

- pan head slotted, 1/4 NC x 3/8 inch

4шт.

18

3125862R1

PLATE

- lockout, auxiliary valve lever

1шт.

19

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

1шт.

20

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

SCREW - adjusting

1шт.
