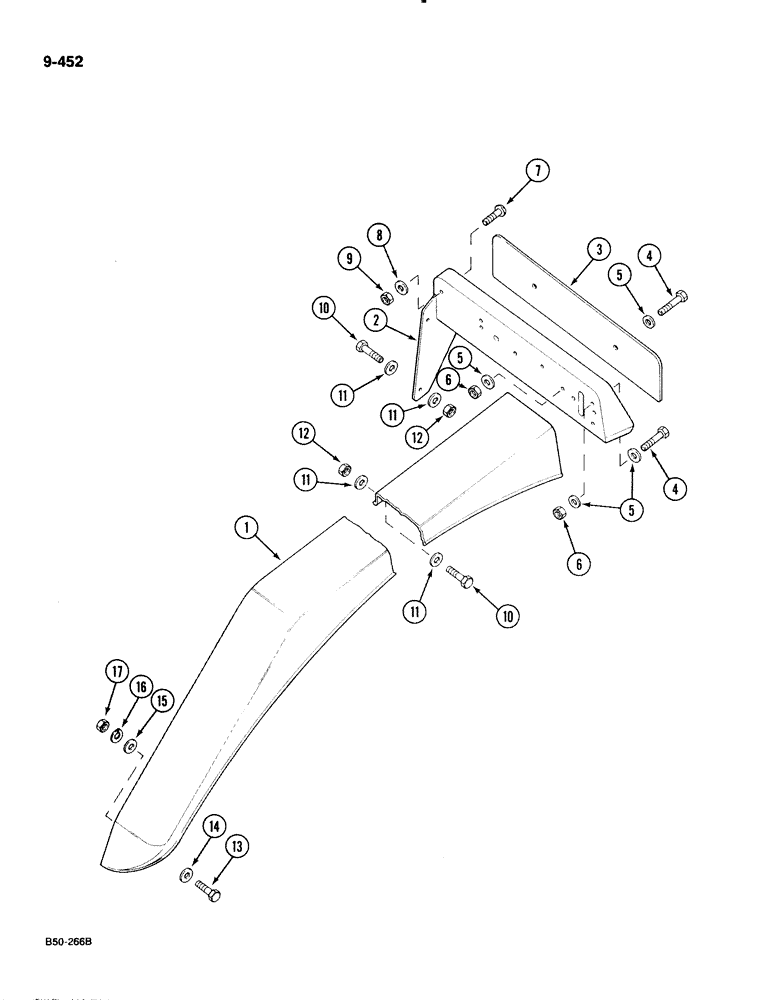

Запчасти Case IH 885 (9-452) - CAB FENDERS (09) - CHASSIS/ATTACHMENTS

1

1971086C1

FENDER

- extension, right (Replaces 98101C2)

1шт.

1

98101C2

FENDER

- extention, right

1шт.

1

1971085C1

FENDER

- extension, left (Replaces 98102C2)

1шт.

1

98102C2

FENDER

- extention, left

1шт.

2

1971088C1

HOLDER

HOUSING - tail light, right (Used with 1971086C1)

1шт.

2

98103C2

HOUSING

- tail light, right (Used with 98101C2)

1шт.

2

1971087C1

HOLDER

HOUSING - tail light, left (Used with 1971085C1)

1шт.

2

98104C2

HOUSING

- tail light, left (Used with 98102C2)

1шт.

3

3404867R2

COVER

- right (Used with 98103C2)

1шт.

3

3404866R2

COVER

- left (Used with 98104C2)

1шт.

4

934876R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

(Used with housings 98103C2 and 98104C2) Hex, M6 x 20, 8.8

8шт.

5

3145213R1

WASHER

- flat

16шт.

6

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

- hex, 6 mm, class 8

8шт.

7

1971121C1

SCREW

- countersunk, cross recess, M6 x 20 mm, black (Used with housings 1971088C1 and 1971087C1)

10шт.

8

3145213R1

WASHER

- flat

10шт.

9

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

- hex, 6 mm, class 8

10шт.

10

934876R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

18шт.

11

3145213R1

WASHER

- flat

36шт.

12

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

- hex, 6 mm, class 8

18шт.

13

934719R1

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, M6 x 25 mm, class 8.8

2шт.

14

3145213R1

WASHER

- flat

2шт.

15

934948R1

WASHER,M6

- flat, 6.4 x 12.5 x 1.6 mm

2шт.

16

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

2шт.

17

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

- hex, 6 mm, class 8

2шт.
