Запчасти Case IH 885 (9-446) - INSTRUMENT HOUSING, WITH CAB (09) - CHASSIS/ATTACHMENTS

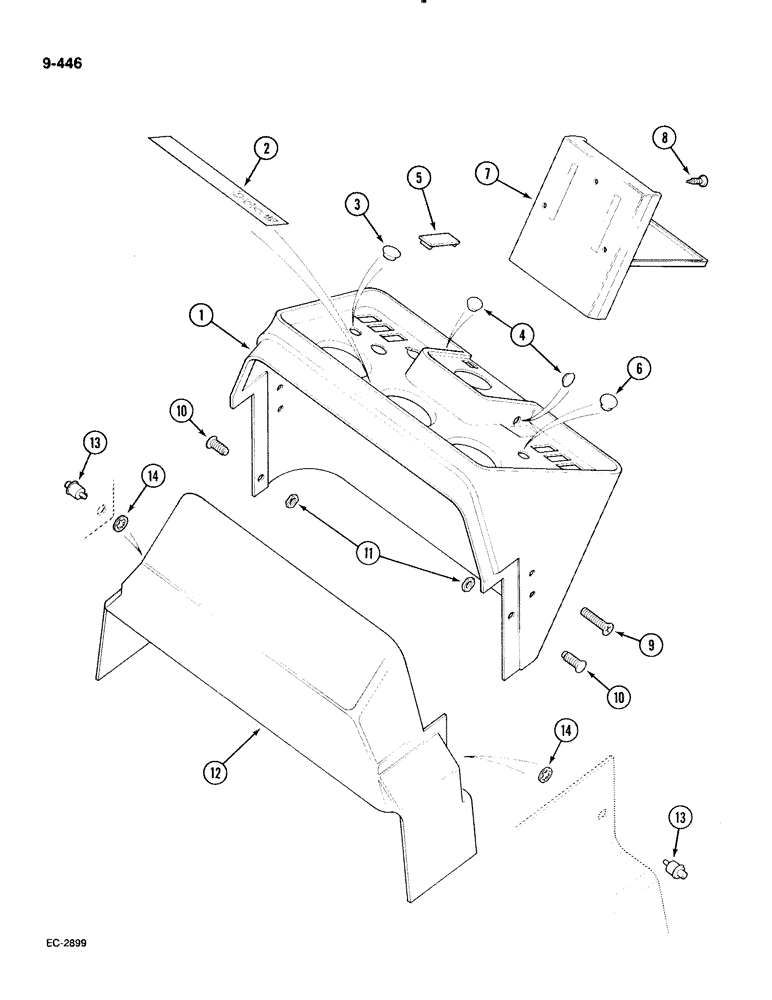

Схема запчастей Case IH 885 - (9-446) - INSTRUMENT HOUSING, WITH CAB (09) - CHASSIS/ATTACHMENTS
14
5
6
13
3
1
11
4
10
14
7
10
8
9
12
13
2

Артикул

Название

Примечание

Количество

1

1330755C1

PANEL

instrument rear, Includes: Ref. 2

1шт.

1

1536949C1

PANEL, INSTRUMENTS

PANEL instrument rear

1шт.

2

321-6770

DECAL

- warning, PTO overspeed, English, See Figure 9-554

1шт.

3

353-411

PLUG,Dome, 1.000" hole, Nylon

Blanking, Horn switch Dome, 1.000" hole, Nylon

1шт.

4

1500083C1

PLUG

- blanking

1шт.

5

245918C1

LENS

PLUG - blanking (Rocker switches)

1шт.

6

353-404

PLUG,Dome, .500" hole, Nylon

Blanking, 2 speed power shift switch Dome, .500" hole, Nylon

1шт.

7

A177376

BOX

- operators manual storage

1шт.

8

A162364

FASTENER

- panel

3шт.

9

3234909R1

SCREW,Hex Flat Hd, M8 x 20, 4.8

- flat, cross recess, 8 mm x 20 mm, class 8.8

4шт.

10

3399135R1

SCREW

- camloc

2шт.

11

3399136R1

NUT

- hex, M12

2шт.

12

3234653R1

GUARD

HOUSING - front, instrument panel

1шт.

13

3399133R1

LOCK PIN

PIN - lock

2шт.

14

3399134R1

RING

- retaining

2шт.

1983576C1

CLUSTER, INSTR.

CLUSTER instrument, new

1шт.

Выбрано товаров: 16
